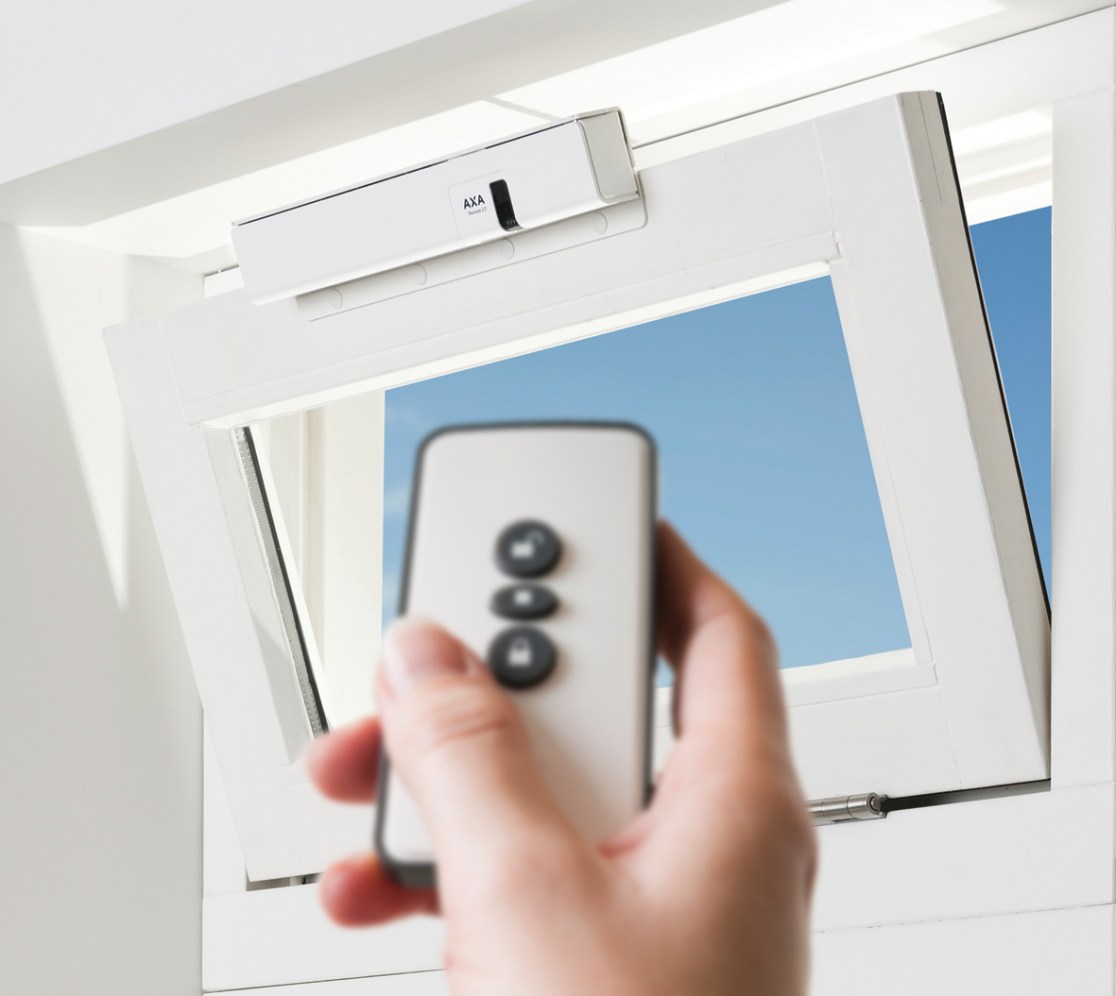

The AXA Remote 2.0â„¢ remote-control window opener makes life easier. No more climbing on unstable stools. The user-friendly remote control can be used to open and close bottom-hung windows.
Specifications Downloads Technical drawings Associated products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 70 mm screw: 4 pieces
- M4 x 10 mm bolt: 3 pieces
- M4 x 12 mm bolt: 2 pieces
Commercial Information
expand_more
Type AXA Remote bottom-hung window
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable YES
SKG SKG 2
Police Hallmark YES
Technical Information
expand_more
Product Length 310 mm
Product Width 40 mm
Direction of rotation turning downwards
Material Synthetic
Finish White
Finish 2 Galvanized
Logistical Information
expand_more
EAN small package 8713249200293
EAN bulk package 8713249200309
Dimensions small package 318 x 105 x 63 mm
Dimensions bulk package 328 x 134 x 214 mm
Product Weight 1895 gr
Pieces per small package 1 piece
Pieces per bulk package 4 piece
Weight small package 1.865 kg
Weight bulk package 7.6 kg
Mounting information
expand_more
Including Mounting Material YES
Assembly time 15 min

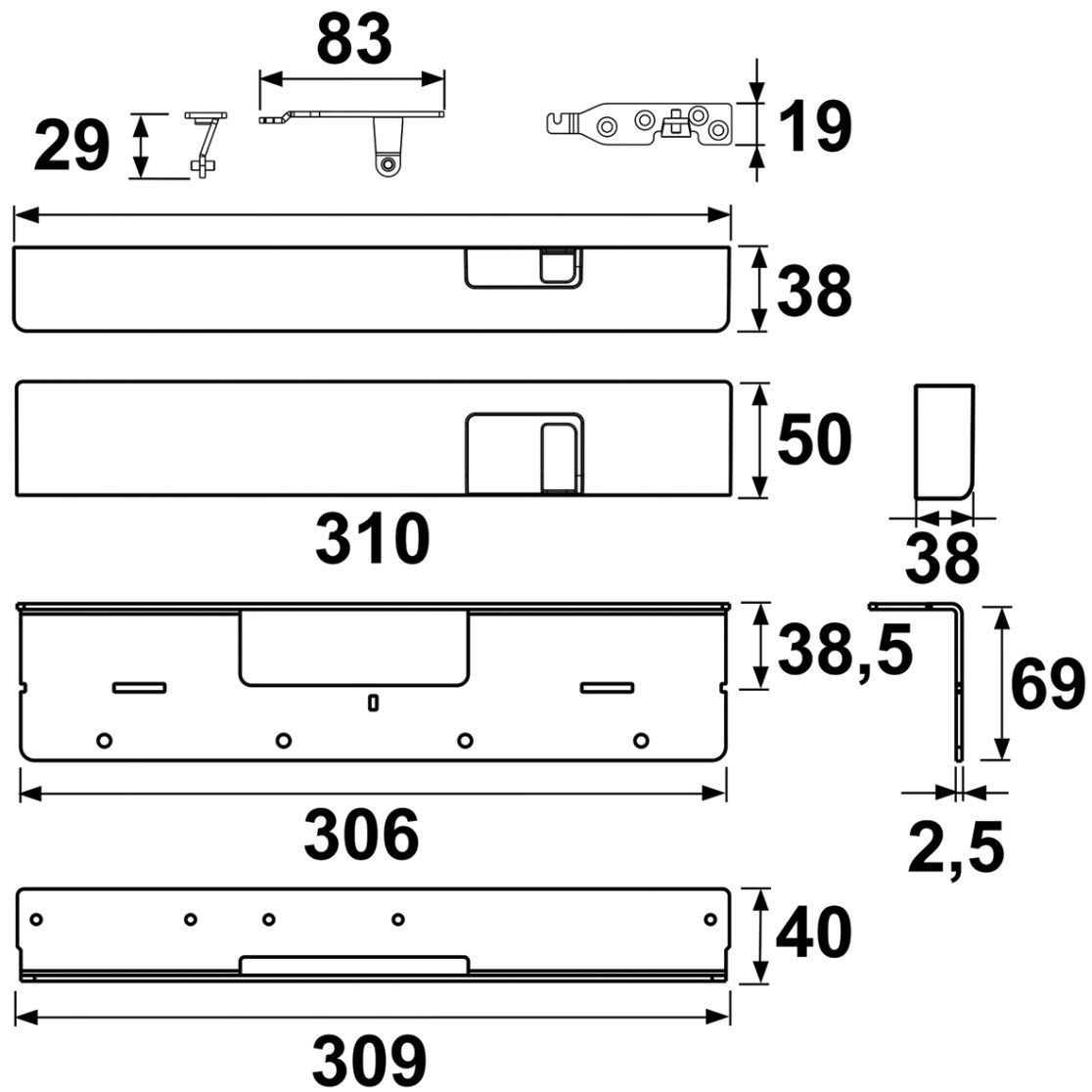

Technical drawings

Associated products
