Solo Solid fittings handle+short plate PC 72 core protection

AIXXSBI03JA/KXTFXS
arrow_selector

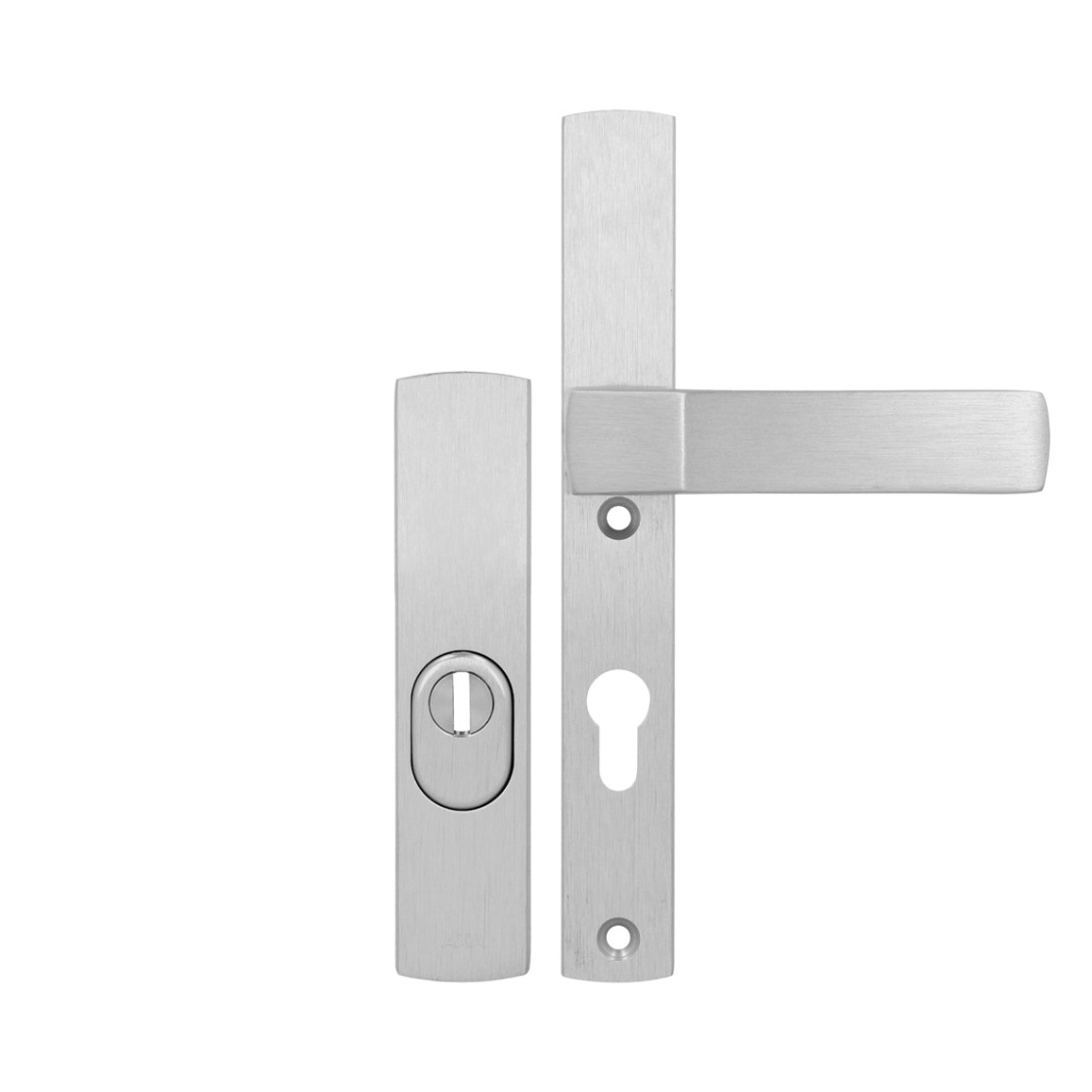

Pull handle dedicated fittings in security class 3 on narrow plate with core protection.

  • set containing external short plate with cylinder protection and internal handle on narrow plate
  • security class 3
  • cylinder protection
  • sturdy and reliable
  • finely brushed and less sensitive to scratches
  • complete with assembly materials
Commercial Information
expand_more
Type handle+short plate PC 72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies NO
Technical Information
expand_more
Product Length 170 mm
Product Width 38 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape narrow curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Dimensions bulk package 330 x 280 x 205 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min
Recommended Mounting Materials
- 3 mm allen key: 1 piece
- 8 x 150 mm spindle (2 notches, drilled): 1 piece
- 8 x 170 spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- isolating ring

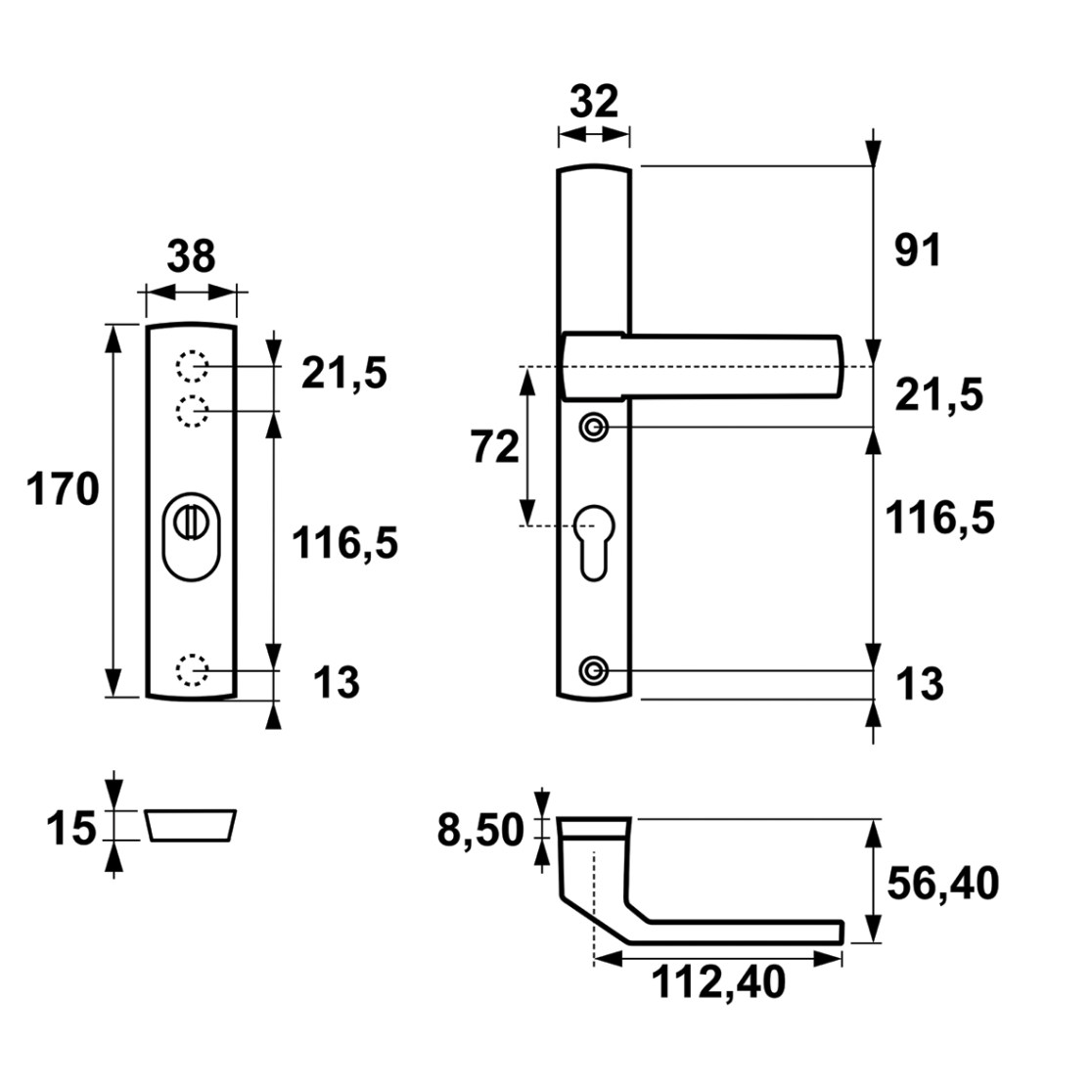

Technical drawings
