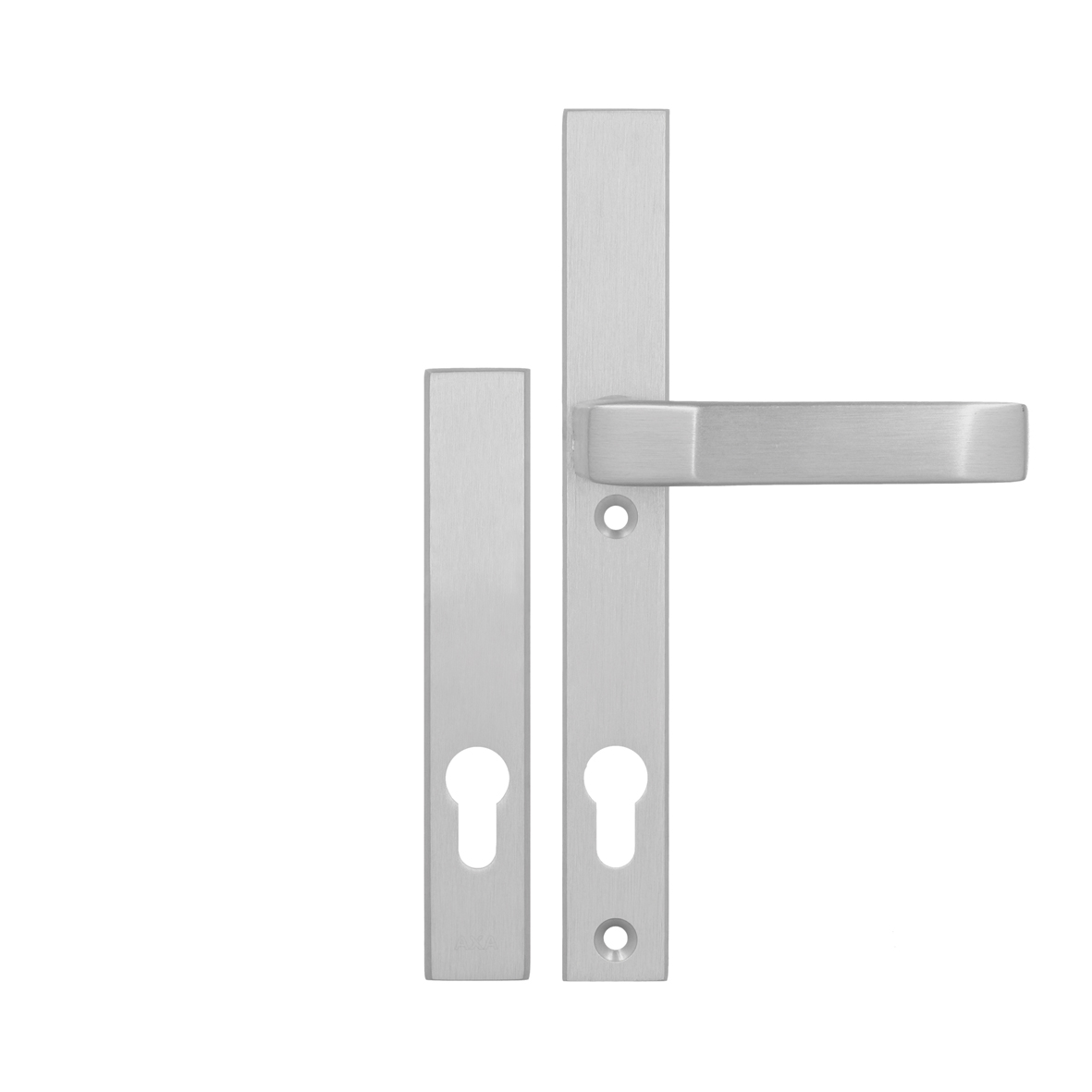

Solo slim fittings handle+short plate PC 92

EAXXCBI37JC/KXHXXZ
arrow_selector
close

Pull handle dedicated fittings on slim plate.

  • set containing external short, slim plate and internal long plate with a handle
  • sturdy and reliable
  • finely brushed and less sensitive to scratches
  • complete with assembly materials
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+short plate PC 92
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 170 mm
Product Width 30 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape narrow right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- Seals: 2 pcs
- 8x150 spindle: 1 pc
- M6x90 screws: 2 pcs
- Locking plate: 2 pcs

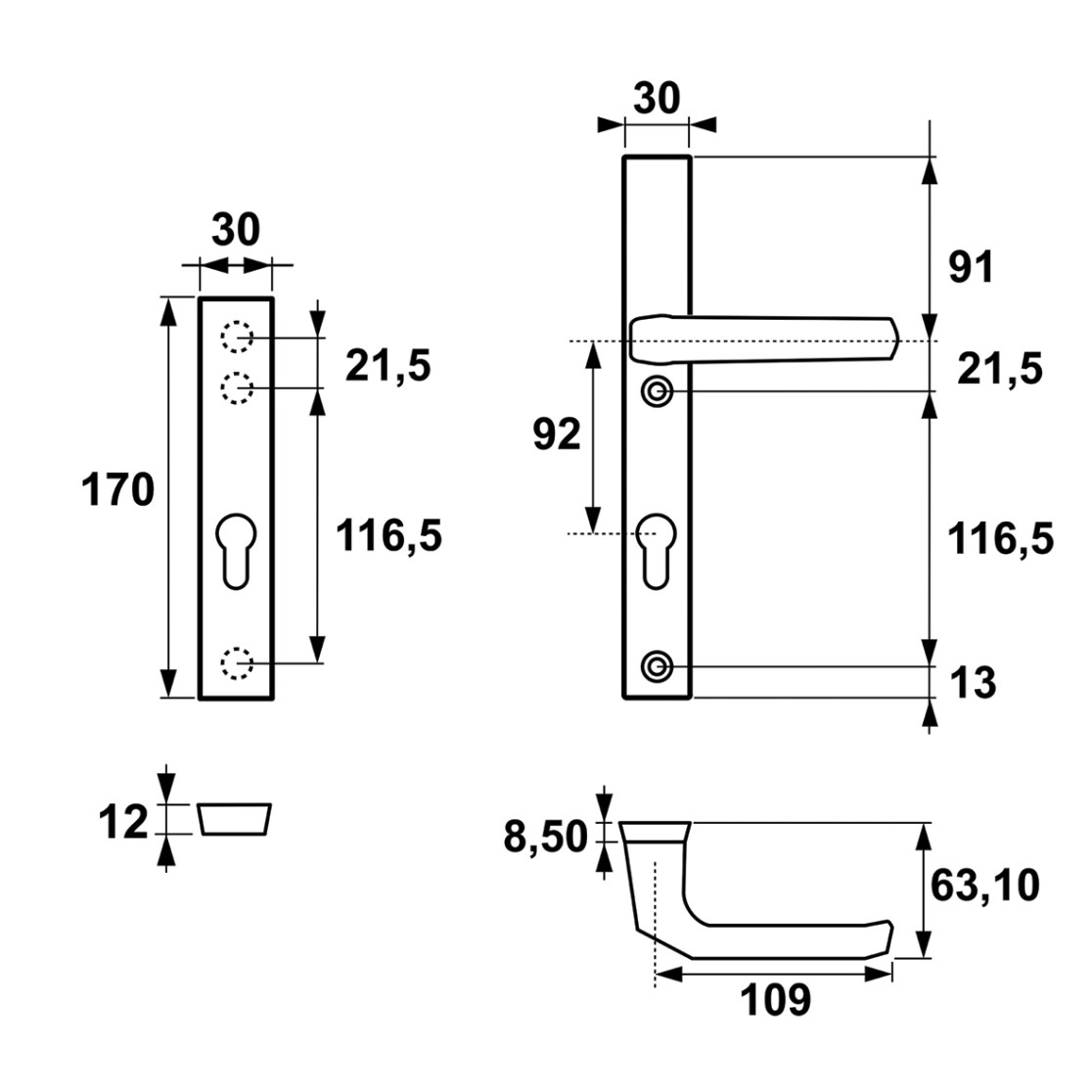

Technical drawings
