Solo Royal fittings handle+long plate PC 92 core protection

ADXXSBI37JC/KXEFXZ
arrow_selector
close

Pull handle dedicated fittings in security class 3 on wide and long plates with cylinder protection.

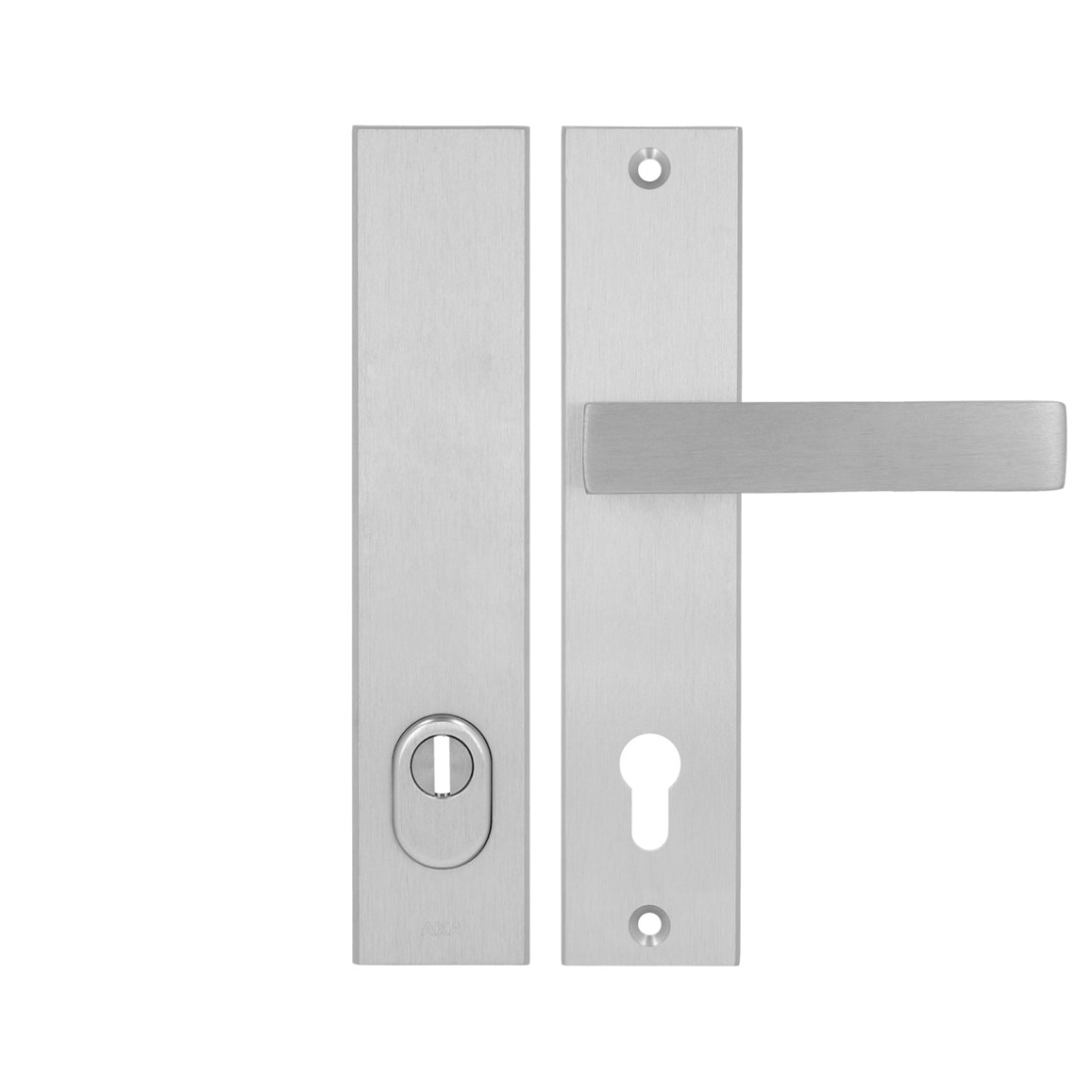

  • The Solo Royal Flex handle, a classic rectangular form and very popular model for exterior doors
  • is available in security class 3
  • 5-year warranty
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+long plate PC 92 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces

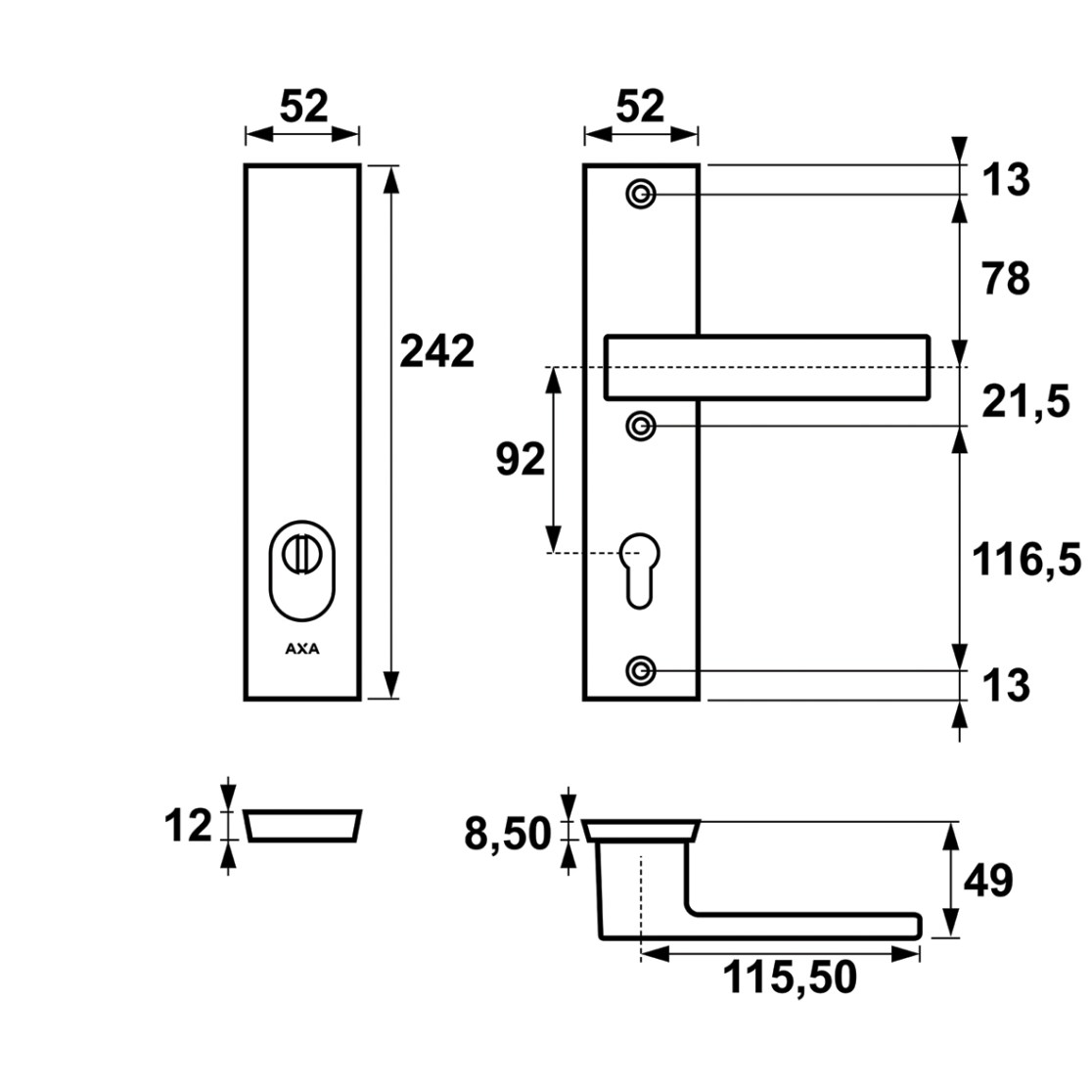

Technical drawings
