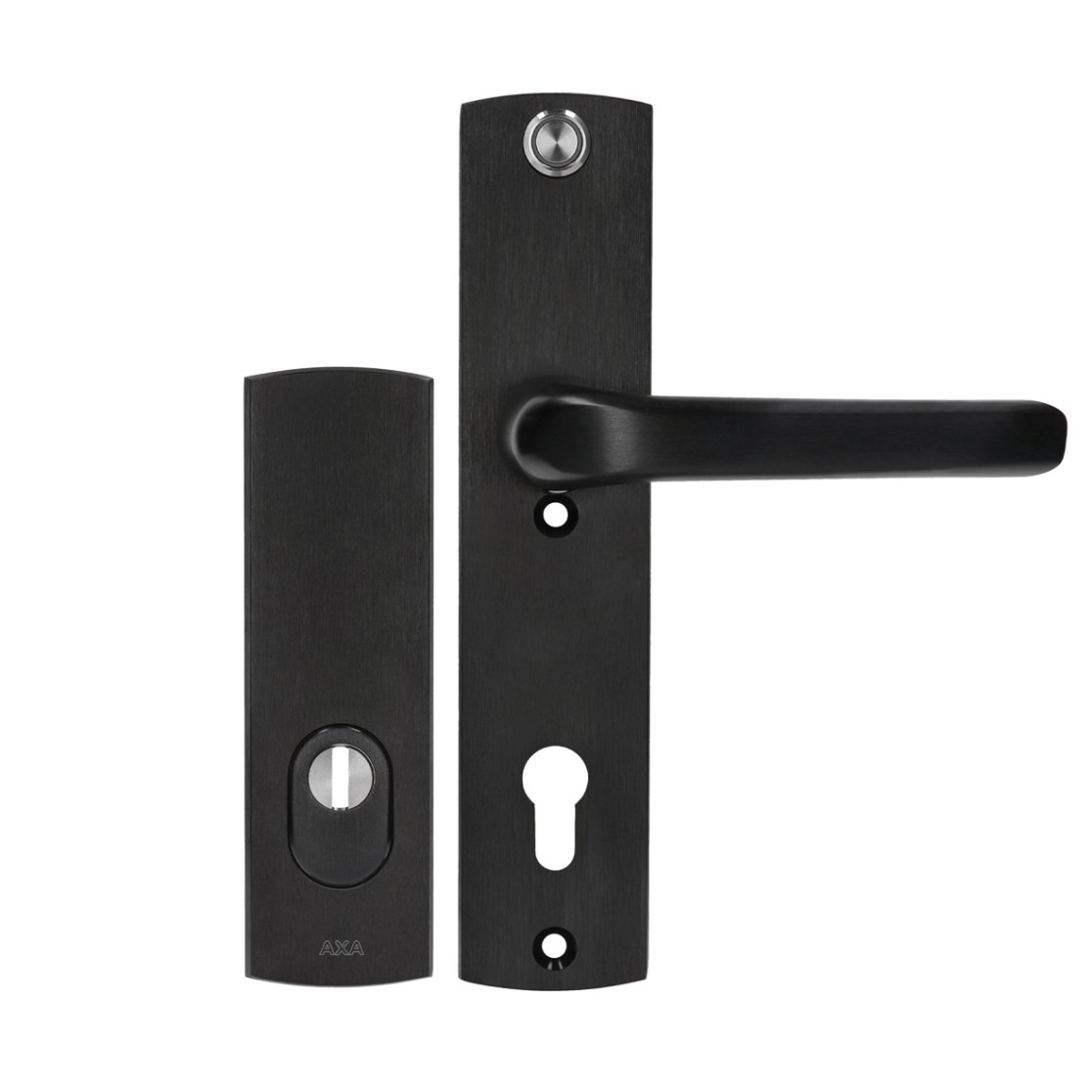

Solo Jupiter Electro fittings handle+short plate PC 92

ATXXCBF03JC/KXVFLS
arrow_selector
close
  • set containing external short, wide plate and internal handle on wide plate
  • security class 3
  • sturdy and reliable
  • finely brushed and less sensitive to scratches
  • complete with assembly materials
  • solution suitable for elektro antab
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+short plate PC 92
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies NO
Technical Information
expand_more
Product Length 170 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- 110 mm mandrel: 1 pc.
- M6x90 screw: 2 pcs
- bearing: 2 pcs.
- LED microswitch installation instructions: 1 pcs.
- SOLO hardware installation instructions: 1 pcs.
