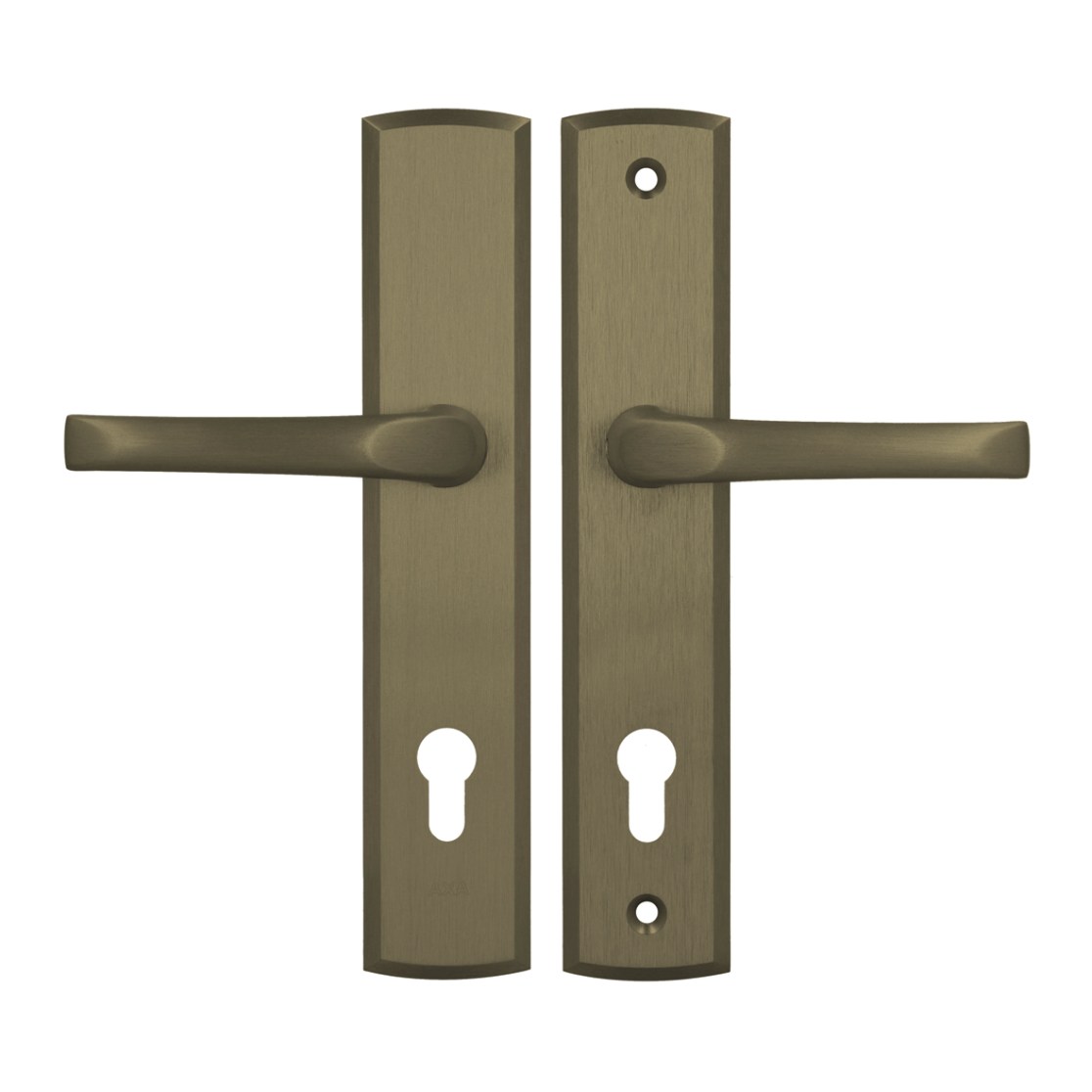

Manitoba ++ fittings handle+handle PC 92

AULXSBI12JC/KXXXXZ
arrow_selector
close
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- Seals: 2 pcs
- 8x130 mm spindle: 1 pc
- M6x90 mm screws: 2 pcs
- Bearing: 2 pcs
Commercial Information
expand_more
Type handle+handle PC 92
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Security class (EN 1906) 1
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 258 mm
Product Width 50 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 250 x 120 x 70 mm
Dimensions bulk package 322 x 270 x 154 mm
Pieces per small package 1 piece
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

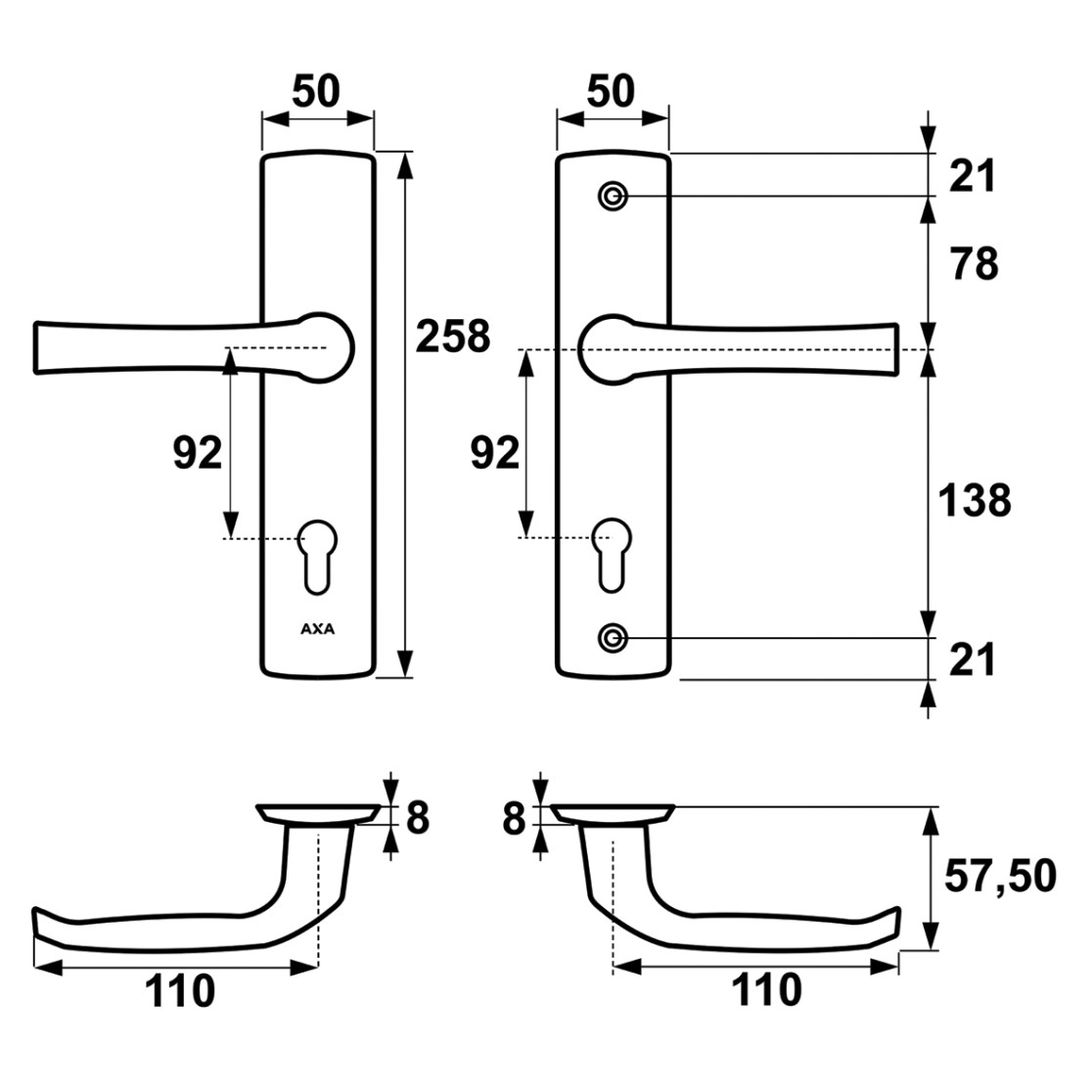

Technical drawings
