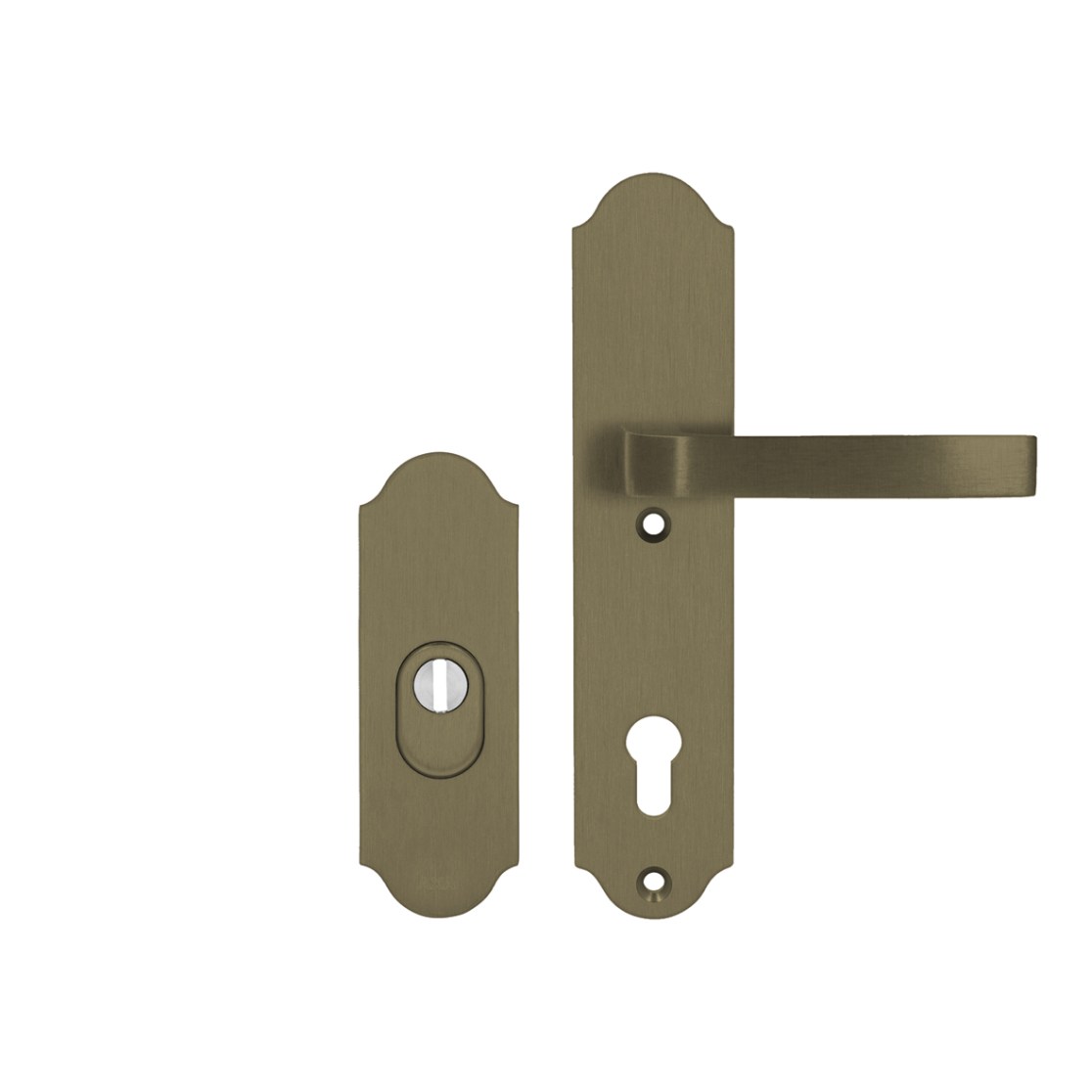

Solo Verona Flex Premium fitting handle+short plate PC 92 core protection

AVXXDBD37JC/KXFFXZ
arrow_selector
close
Reliable and stylish curve burglar-resistant security fittings.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- 8x150 pin: 1 pcs
- M6 x 90 screws: 2 pcs
Commercial Information
expand_more
Type handle+short plate PC 92 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Anodised F4, bronze
Finish 2 Anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 278 x 136 x 65 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

Technical drawings
