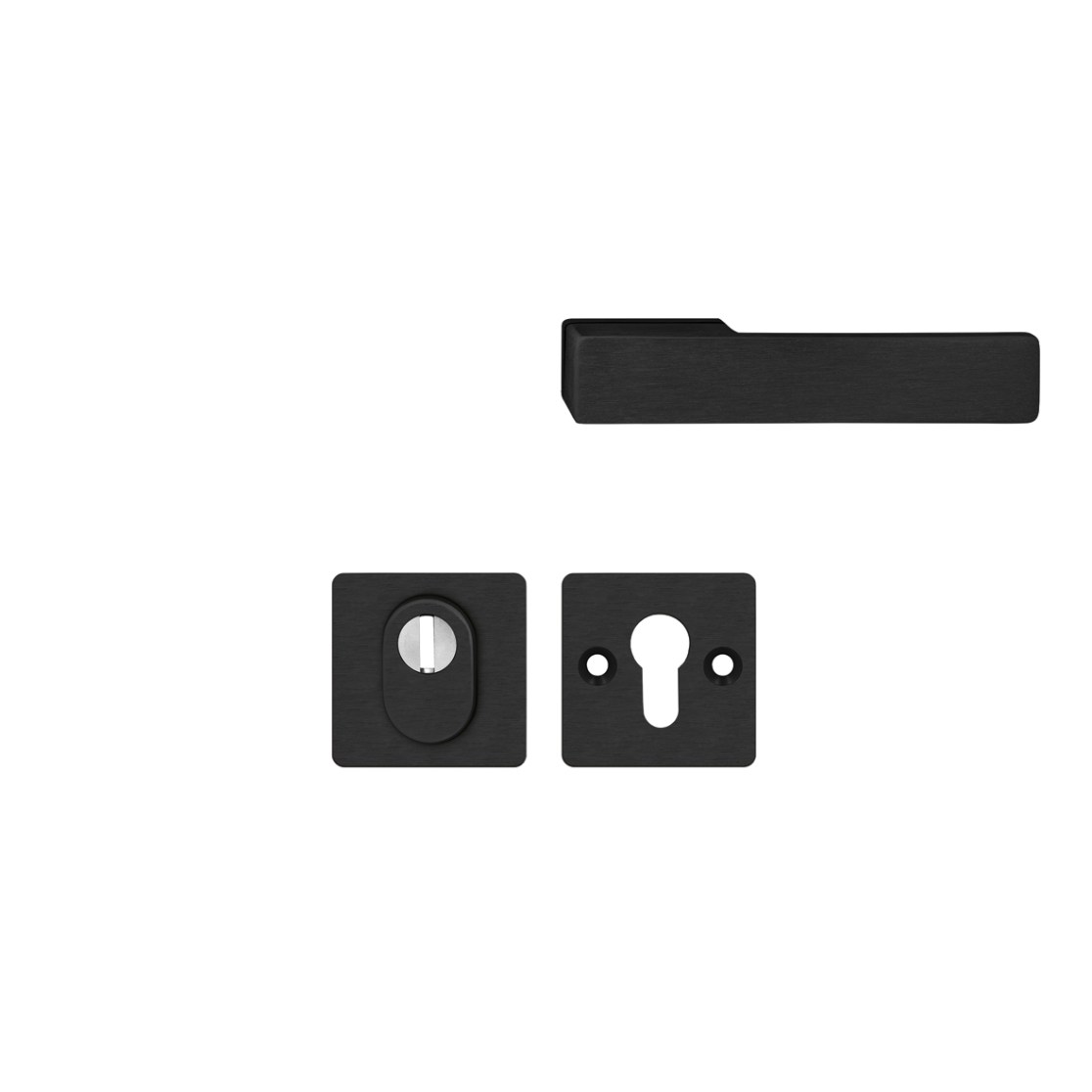

Solo Libera Flex Premium fittings handle+euro lock rosette core protection

MNXXRBF07RX/KXQFXC
arrow_selector
Pull handle dedicated fittings on separate square rosettes with core protection.

Specifications

Recommended Mounting Materials
- 69mm spindle: 1 pc
- M5x30mm screws: 2pc
- setting screws:2 pc
- mounting bush:2 pc
- steel base plate: 1 pc
- M5 expansion sleeve: 2pc
- M6x100 screws: 2 pc
Commercial Information
expand_more
Type handle+euro lock rosette core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape square
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
EAN small package 5907505416914
Dimensions small package 250 x 120 x 70 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

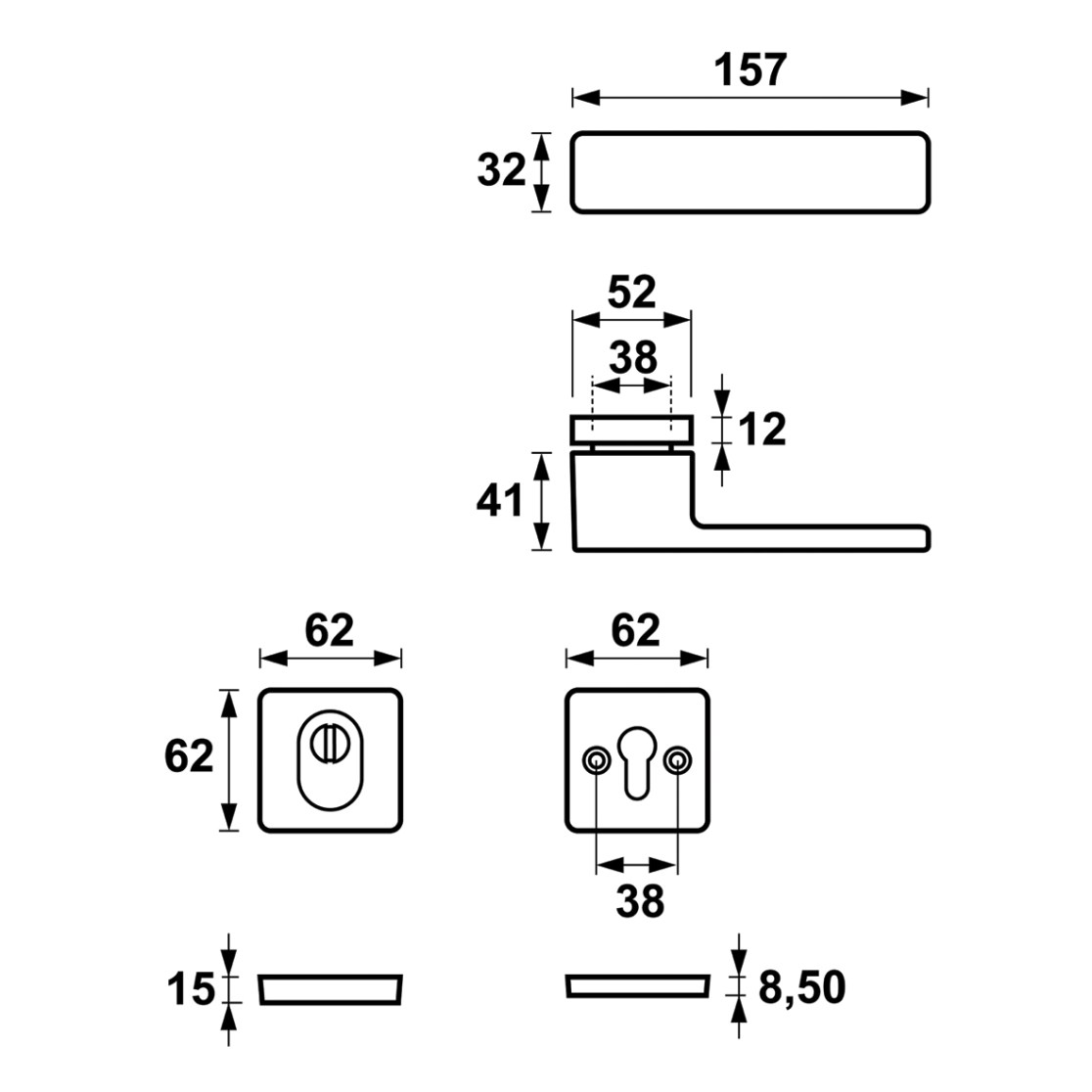

Technical drawings
