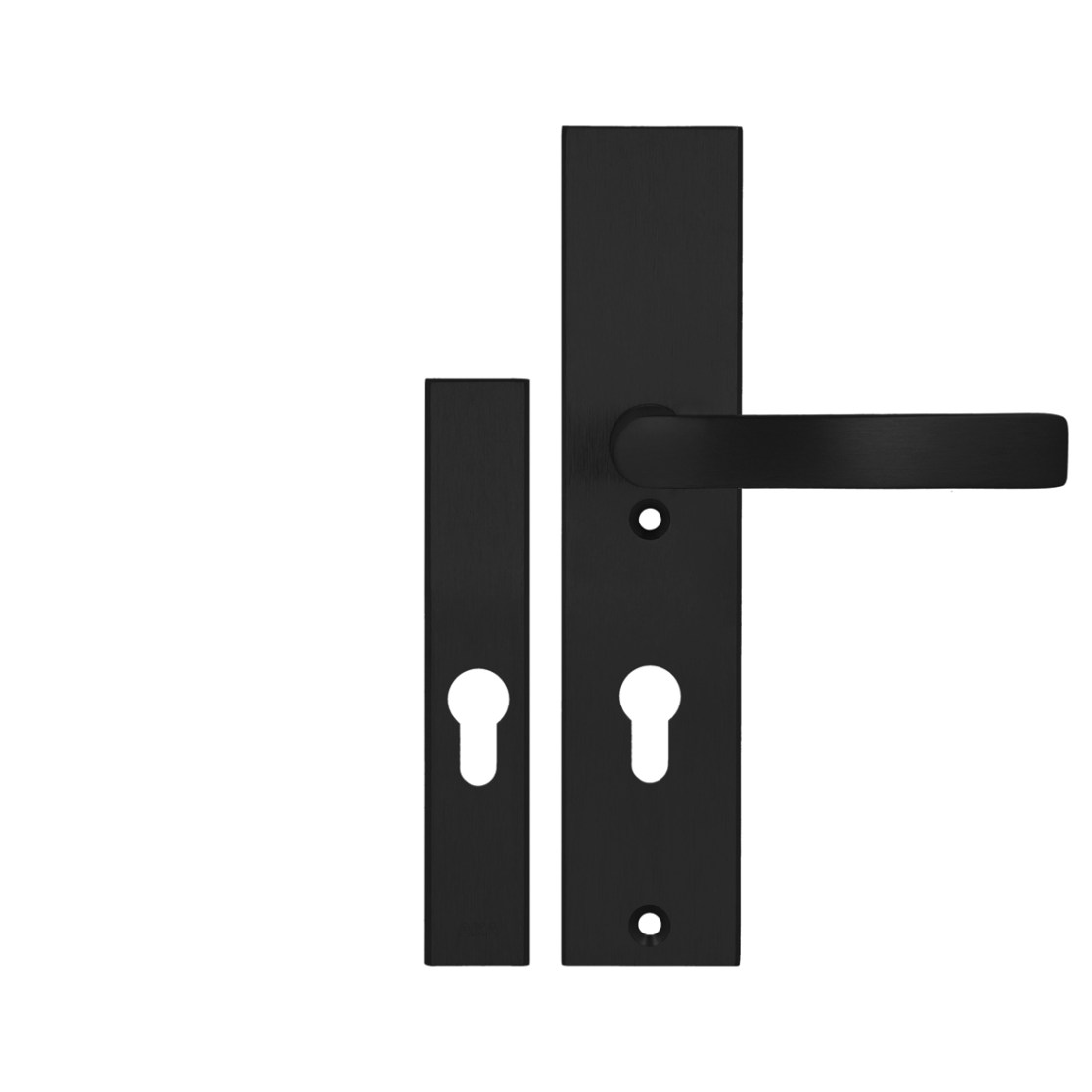

Solo Gaja++ fittings handle+short plate PC72

EBOXCBF37JA/KXXXXZ
arrow_selector
close

Solid and reliable security fittings dedicated for exterior doors.

  • The Solo Gaja++ handle, a classic square form and very popular model for exterior doors
  • finely brushed and less sensitive to scratches
  • comes in five colours
  • Pull handle dedicated fittings
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+short plate PC72
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 280 x 135 x 68 mm
Dimensions bulk package 348 x 285 x 140 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 90mm bolts: 3 pieces
- 8 x 150 mm spindle: 1 piece

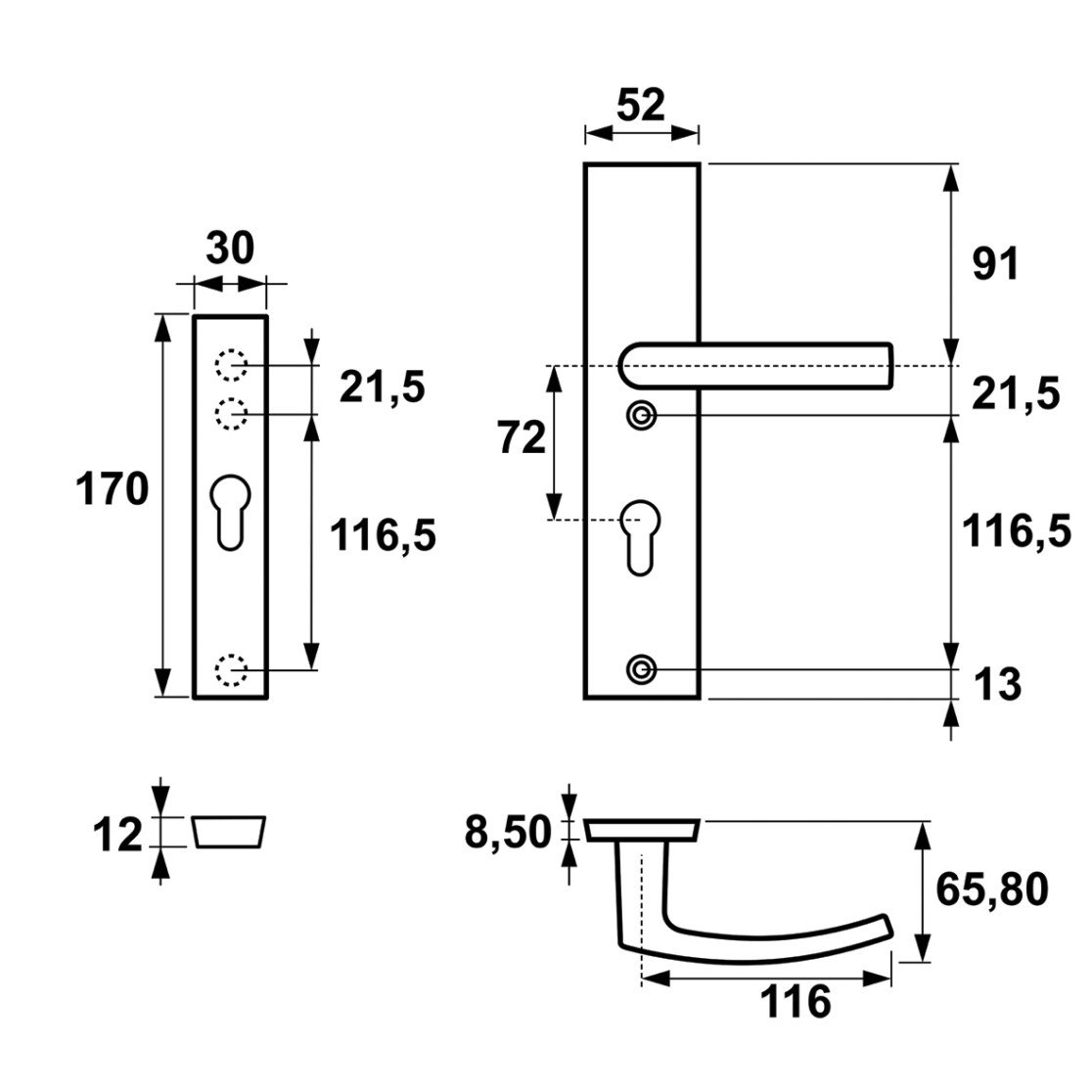

Technical drawings
