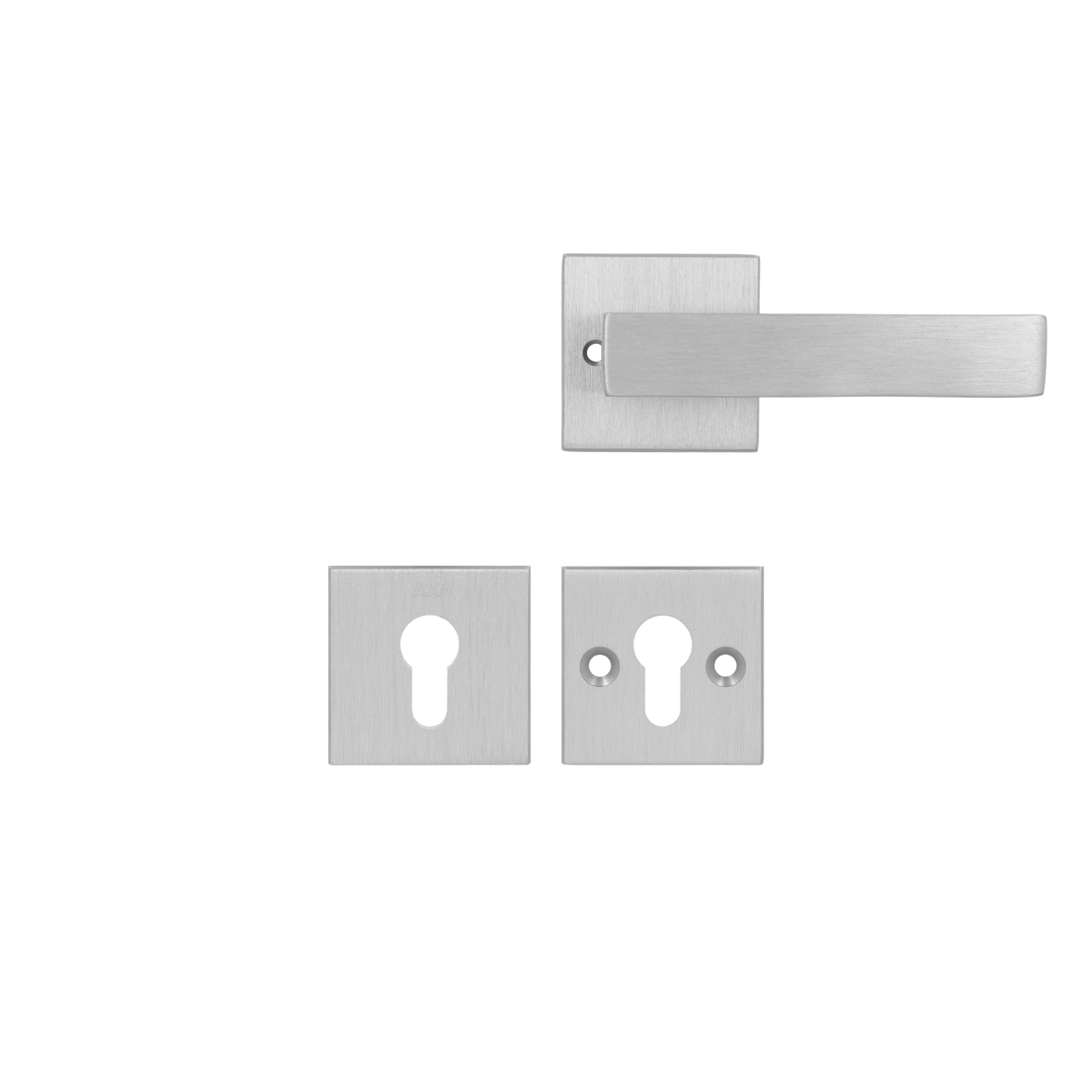

Solo Ceres fittings klamka+euro lock rosettes

EWXXDBI13RX/KXEXXS
arrow_selector
close

Pull handle dedicated fittings on separate square rosettes.

  • set containing external squarerosette and internal handle on squarerosette and euro lock rosette
  • sturdy and reliable
  • finely brushed and less sensitive to scratches
  • complete with assembly materials.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type klamka+euro lock rosettes
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape square
Handle assembly grub screw fix
Spring supported handle YES
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 150 mm spindle (2 notches, drilled): 1 piece
- 8 x 170 mm spindle: 1 piece
- M5 x 100 mm bolts: 2 pieces
- M6 x 100 mm bolts: 2 pieces
- Rings: 2 pieces

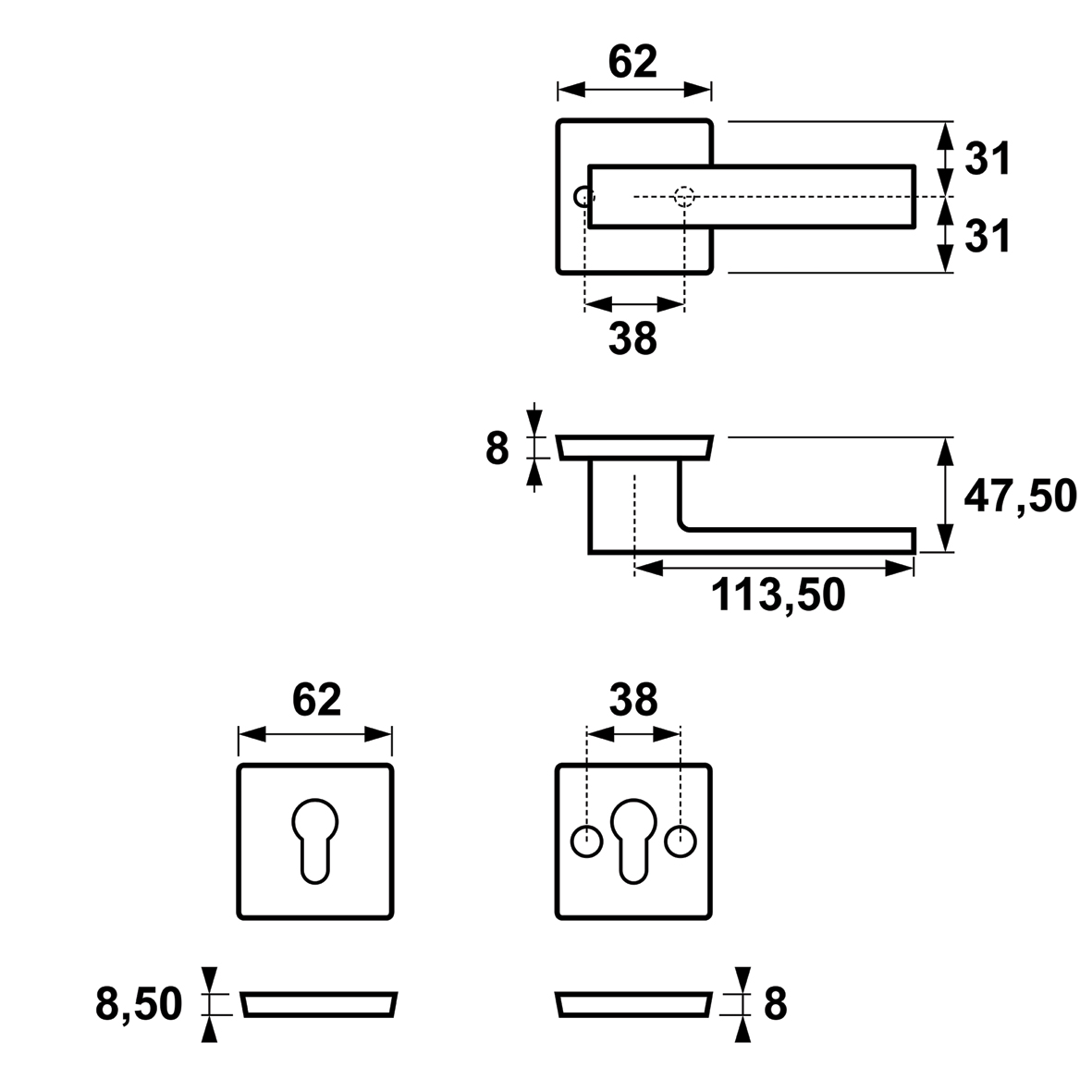

Technical drawings
