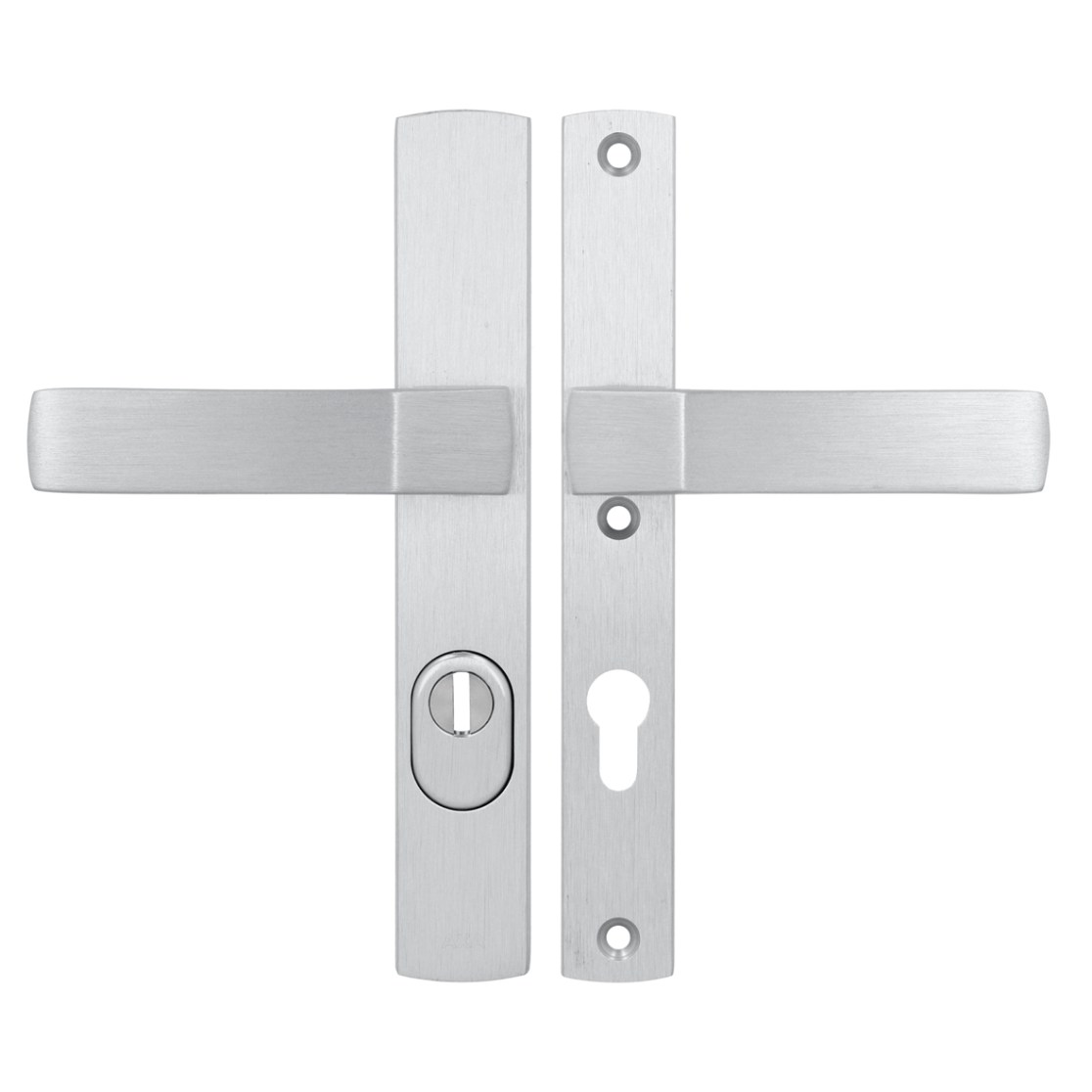

Solid Flex Premium fittings handle+handle PC 72 core protection

AIXXSBD12JA/KXTFXS
arrow_selector
close
Solid and reliable curve Premium security fittings with core protection.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
-M6 x 90 mm bolts: 3 pcs.
- 8 x 150 mm spindle: 1 pc.
- 8 x 170 mm spindle: 1 pc.
- isolating ring: 2 pcs.
Commercial Information
expand_more
Type handle+handle PC 72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 38 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape narrow curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Dimensions bulk package 330 x 280 x 205 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min

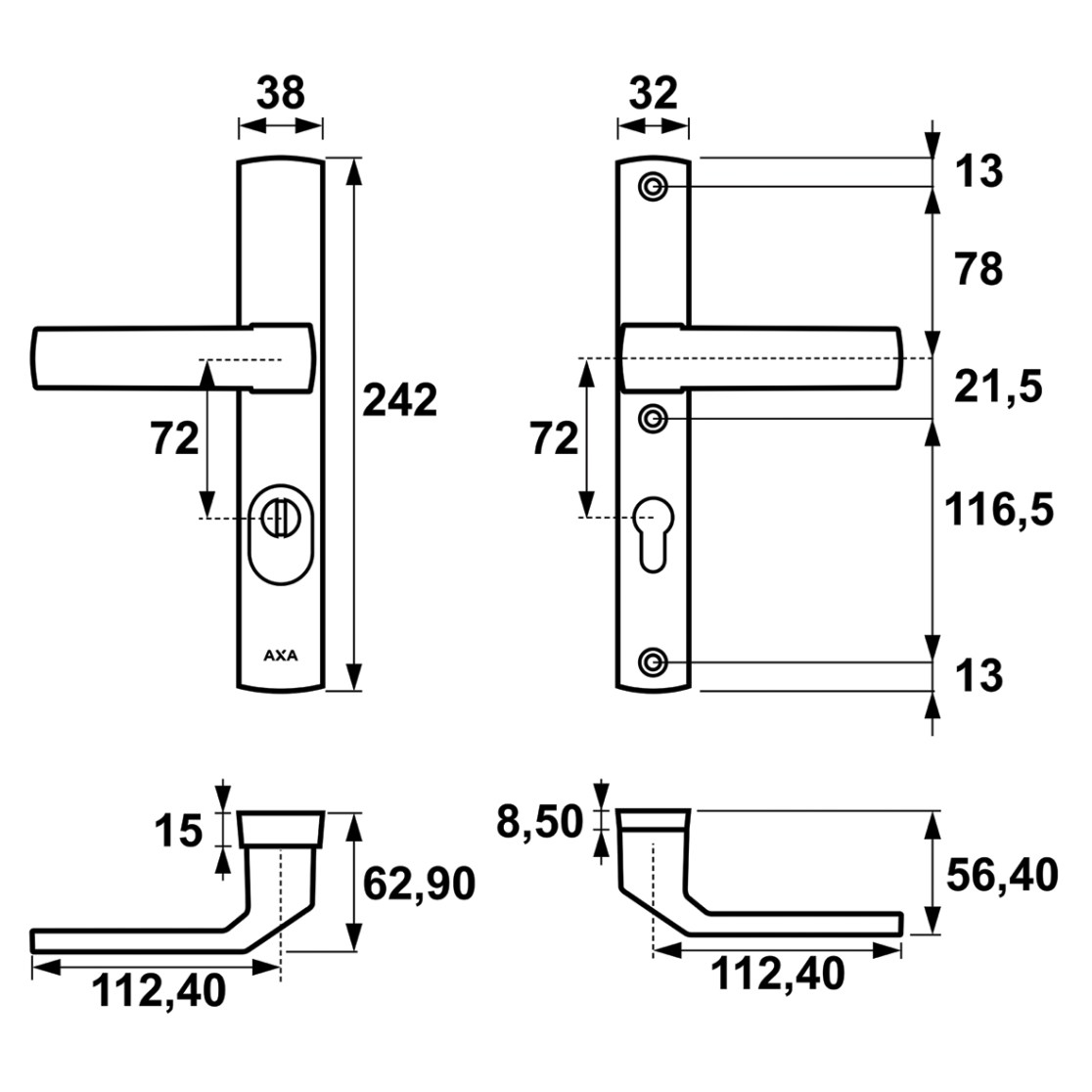

Technical drawings
