Solid fittings handle+knob PC 92

AI5XSBI75JC/KX7FXC
arrow_selector

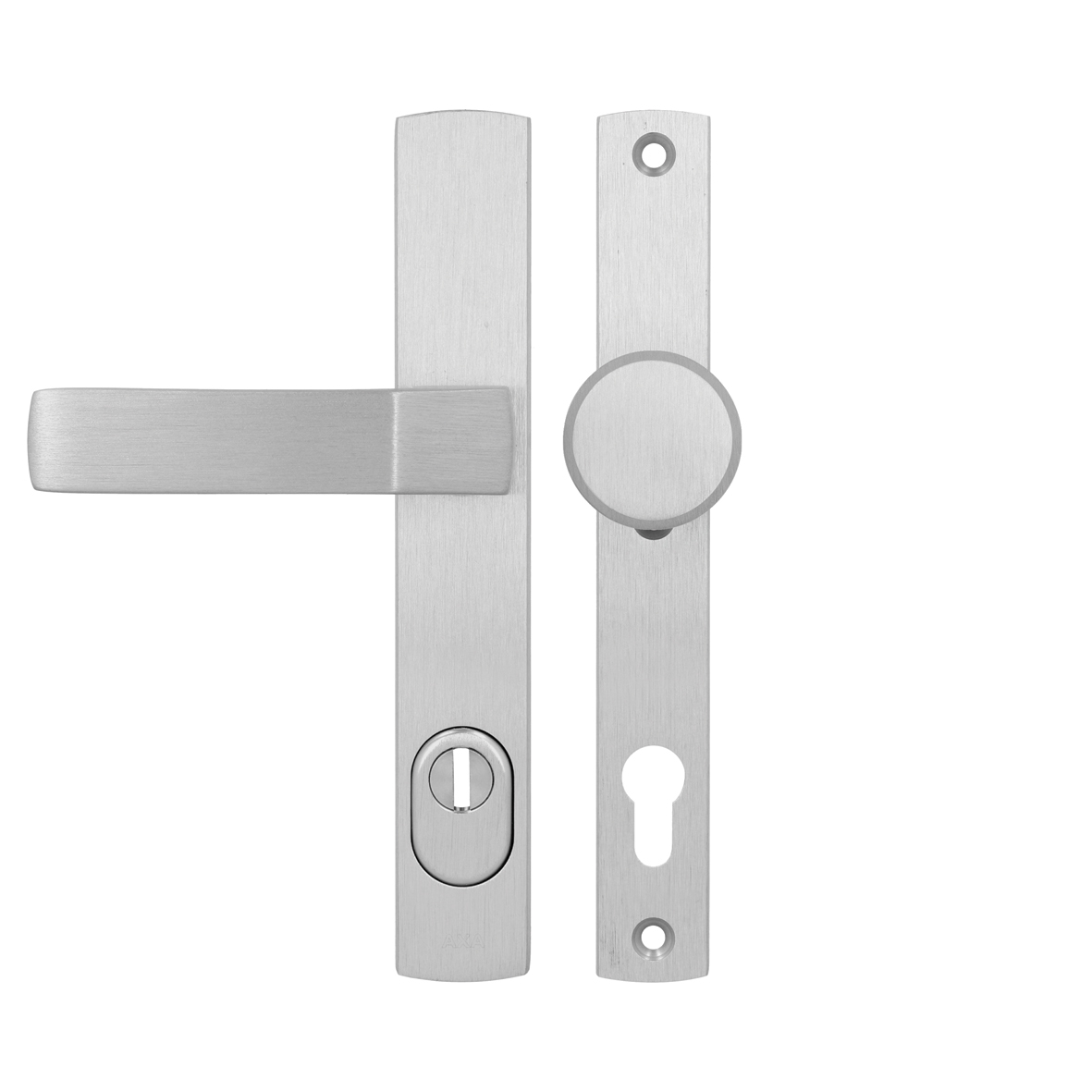

Minimalist door fittings on a narrow 3 centimeters long plate, for exterior doors.

  • cut edges of the handle emphasis the angular shape of the trim
  • finely brushed and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • the upper rosette can be bought to compliment the set
  • complete with assembly materials
Commercial Information
expand_more
Type handle+knob PC 92
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 38 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape narrow right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Anodised F6, inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- 8 x 140 mm spindle 1 piece
- M6 x 90 mm bolts: 3 pieces
