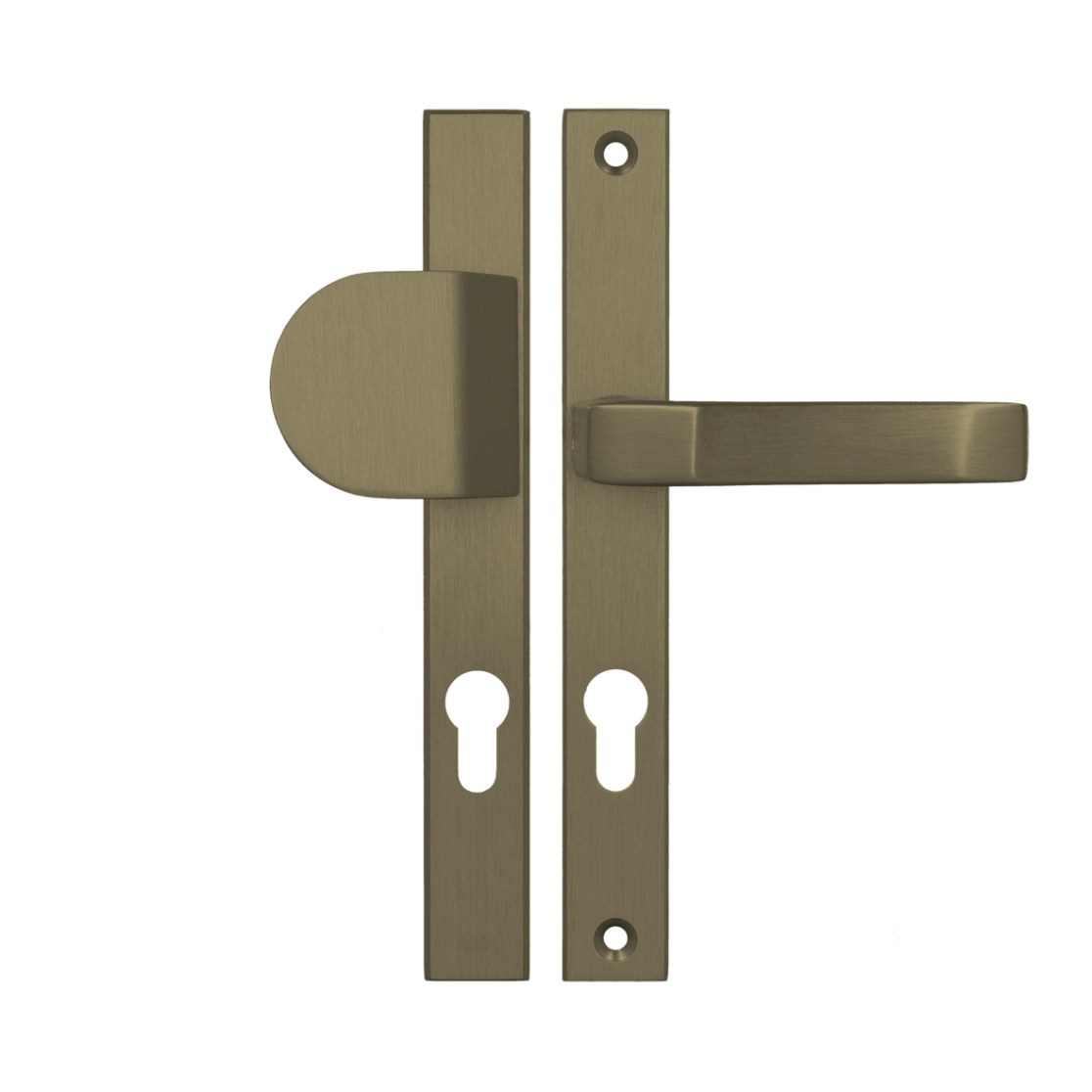

Slim Plus fittings handle+pusher PC 72

MIPXSBD03JA/KXXXXS
arrow_selector
  • cut edges of the handle emphasis the angular shape of the trim
  • finely brushed and less sensitive to scratches
  • for both left and right-opening doors (the knob is reversible)
  • finely brushed and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • the upperrosette can be bought to compliment the set
  • complete with assembly materials
Commercial Information
expand_more
Type handle+pusher PC 72
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 30 mm
Thickness outside 12 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape narrow right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 110 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- M5 x 12 bolt
- Rings: 2 pieces
- ring for knob/pusher

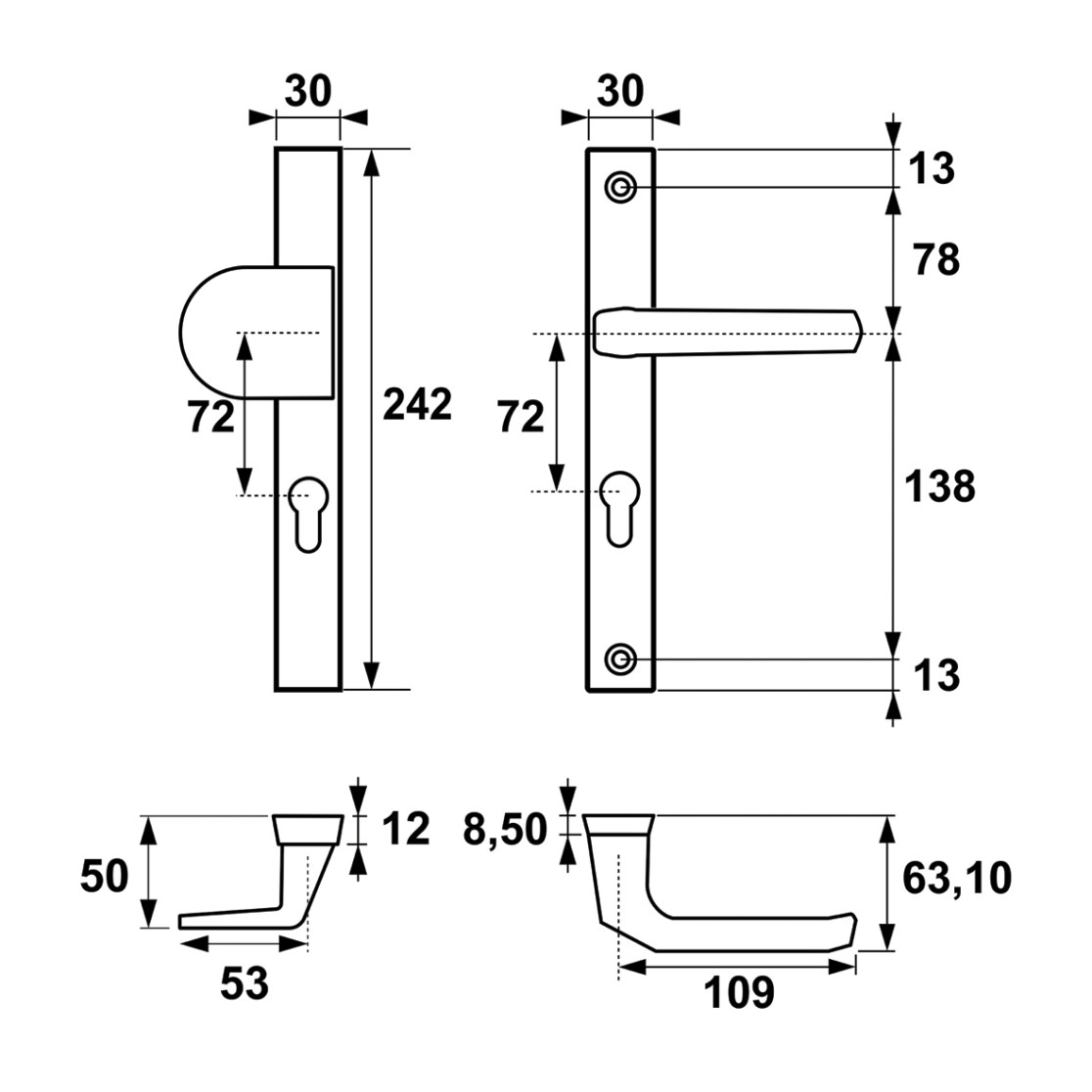

Technical drawings
