Royal Standard fittings pusher+pusher PC 72

ADJXSBI00JCKX/8FXB
arrow_selector
close

Solid and reliable security fittings dedicated for exterior doors.

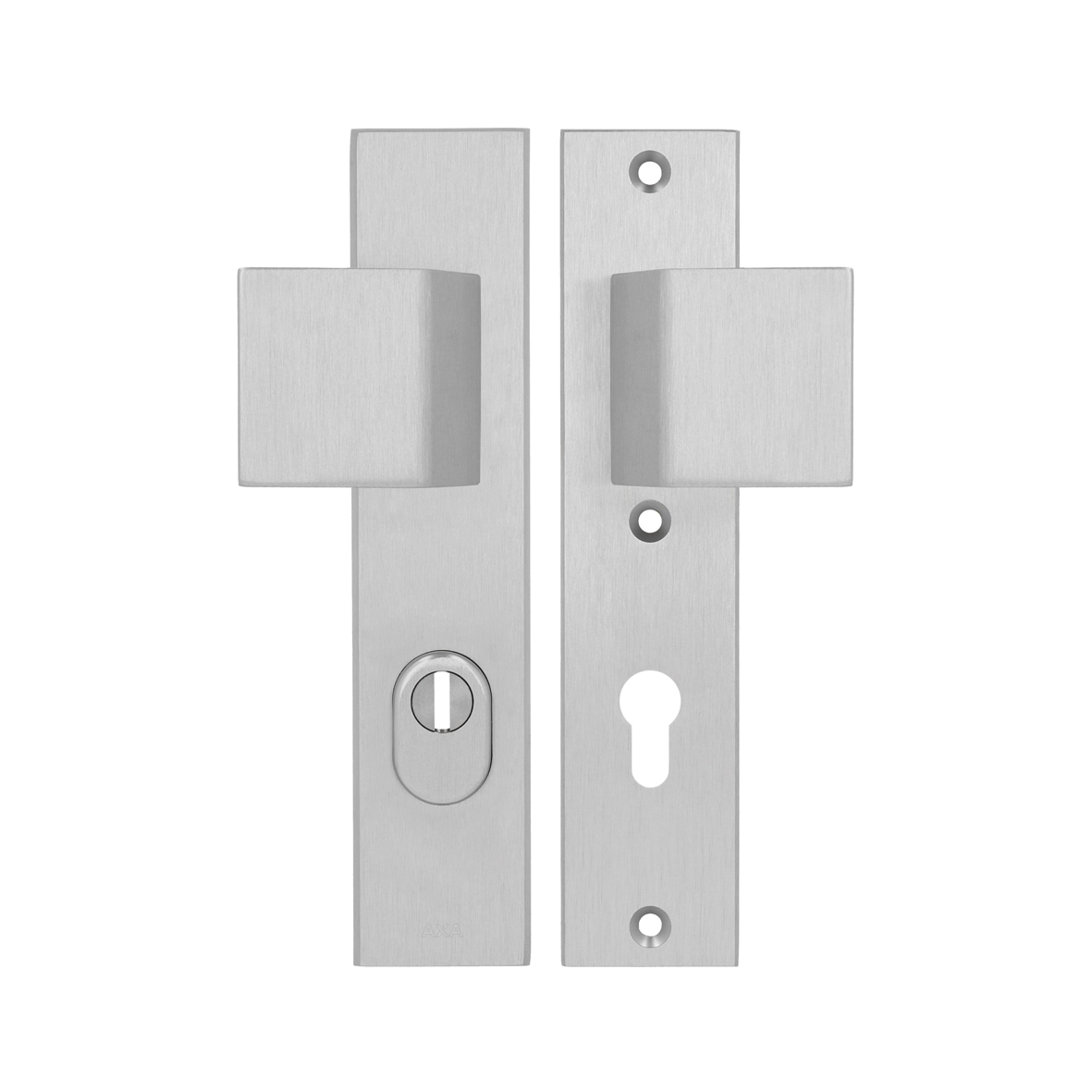

  • The Royal pusher, a classic square form and very popular model for exterior doors
  • for both left and right-opening doors (the knob is reversible)
  • is available in security class 3
  • 5-year warranty
  • finely brushed and less sensitive to scratches
  • comes in five colours
  • Possibility to purchase a complimentary version of the handle-pusher and additionalrosette for the top lock.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type pusher+pusher PC 72
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 1 piece
- 4 mm allen key: 1 piece
- M6 x 90 mm bolts: 3 pieces
- M5 x 12 bolt: 4 pices
- ring for knob/pusher

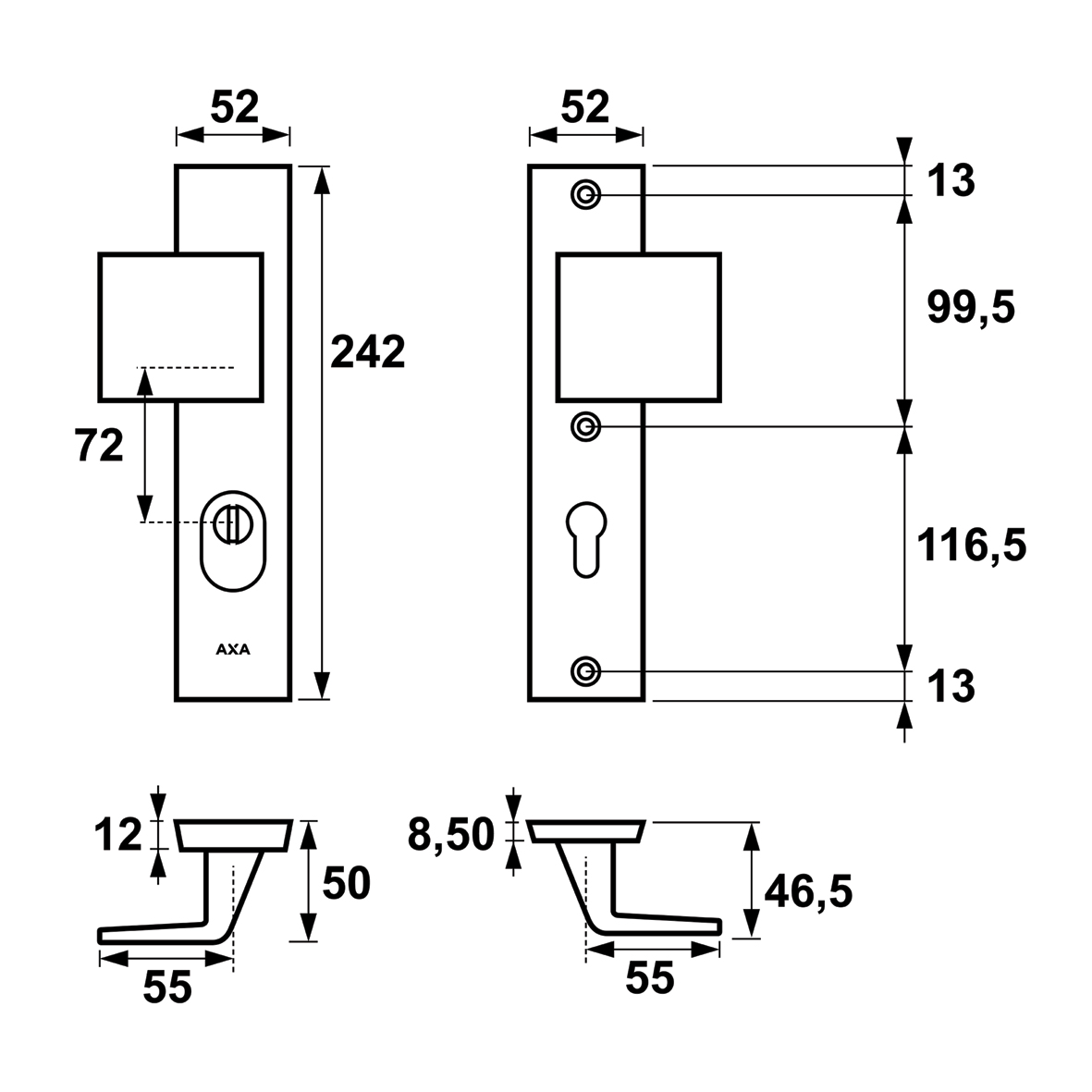

Technical drawings
