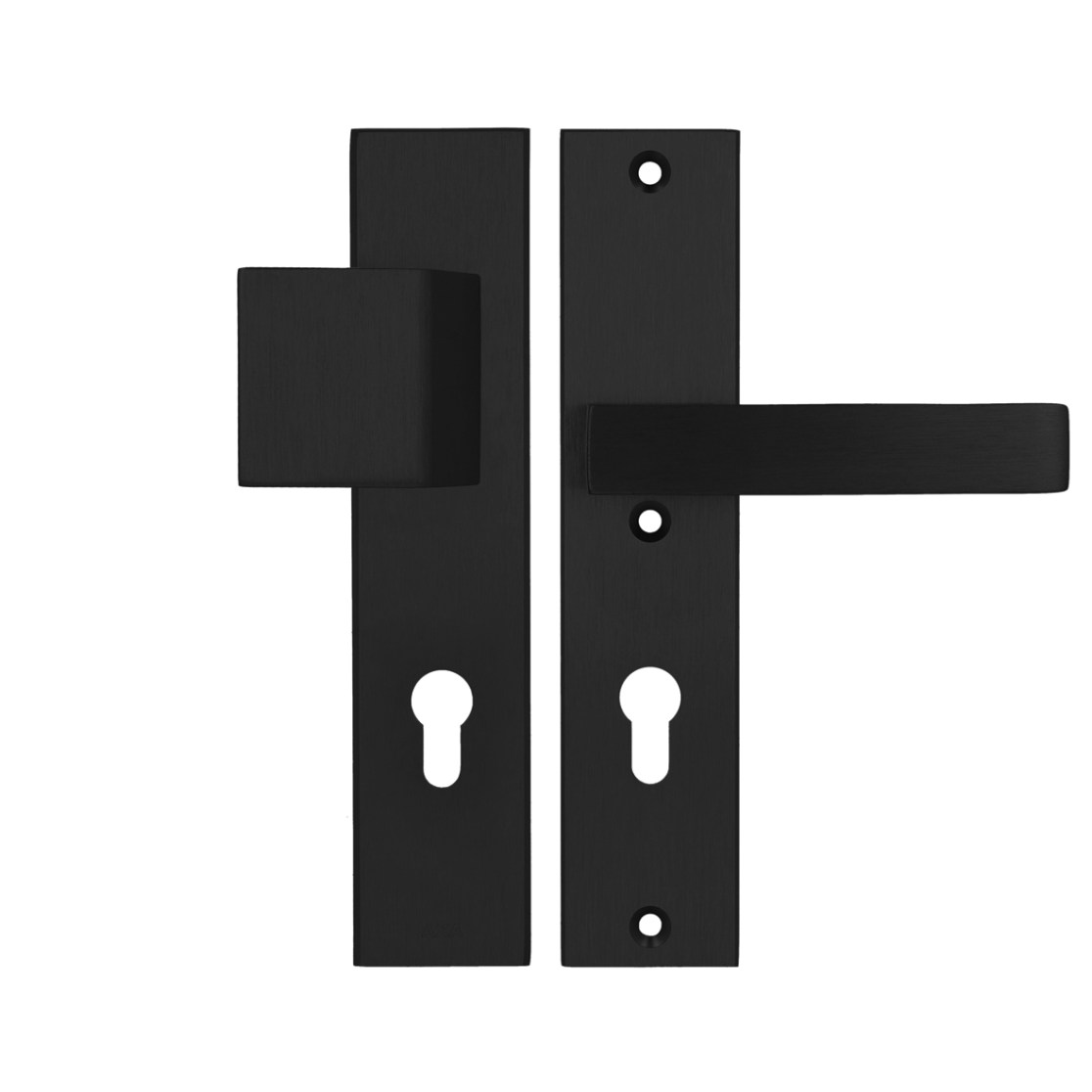

Royal++ Standard fittings handle+pusher PC 72

ACJXSBF37JA/KXEXXZ
arrow_selector
Solid and reliable security fittings dedicated for exterior doors.

Specifications

Recommended Mounting Materials
- Seals: 2 pieces
- M6 x 90 mm bolts: 3 pieces
- 8x150 spindle: 1 piece
Commercial Information
expand_more
Type handle+pusher PC 72
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 250 x 120 x 70 mm mm
Dimensions bulk package 322 x 270 x 154 mm mm
Pieces per small package 1 piece
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

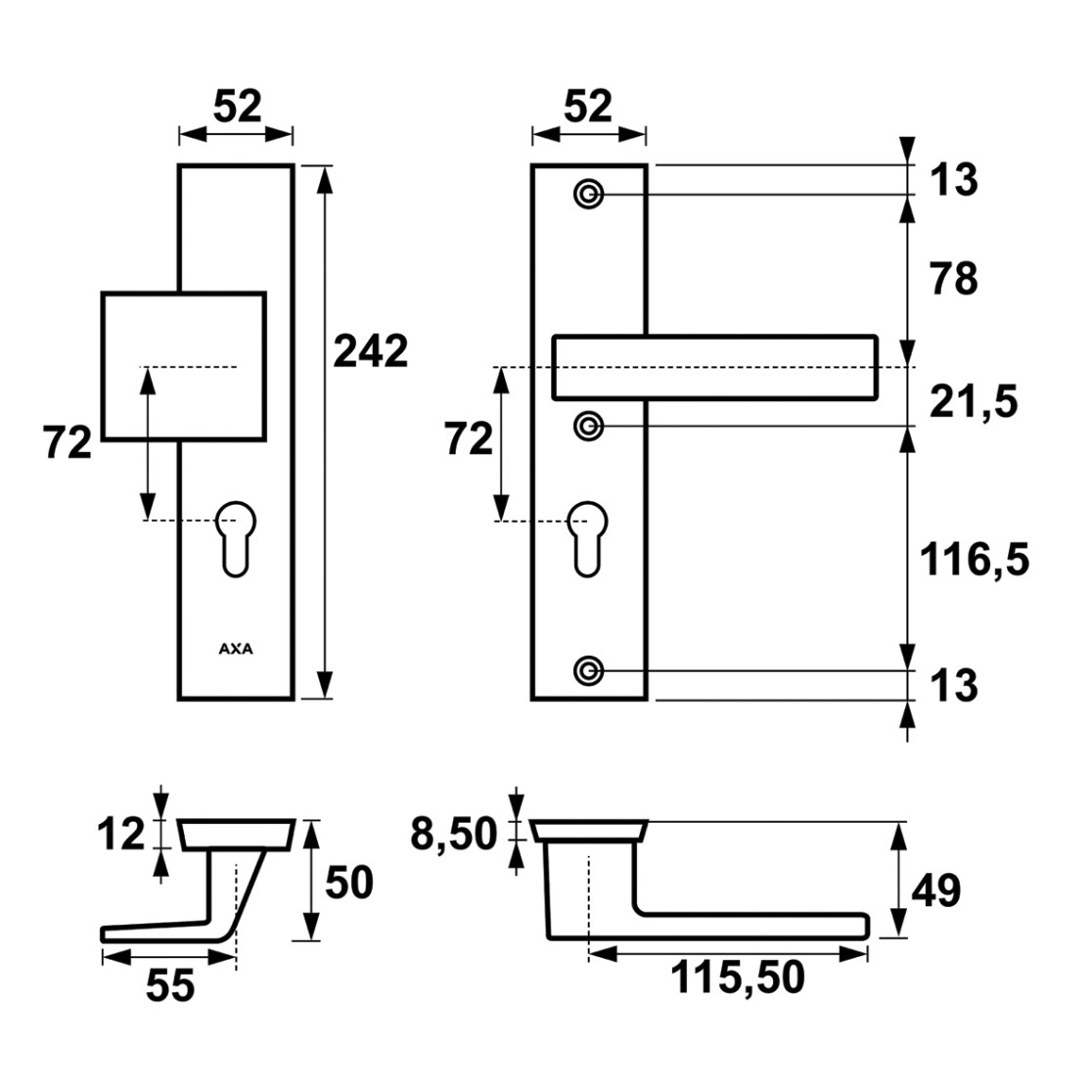

Technical drawings
