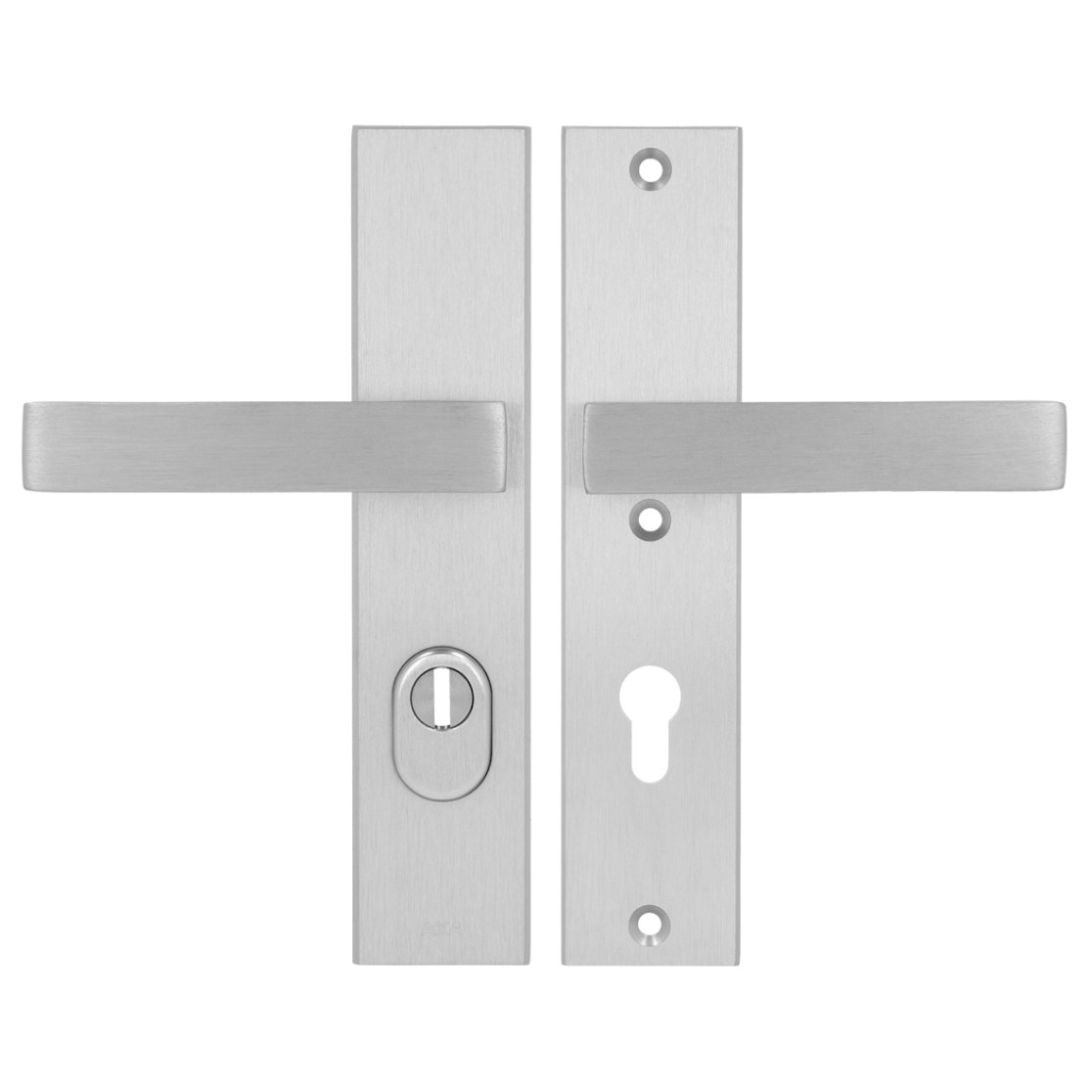

Royal++ Flex fittings handle+handle PC 72 core protection

ADMXSBF08JA/KXXFXZ
arrow_selector
close
Solid and reliable security fittings with flexible core protection dedicated for exterior doors.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- Seals: 2 pcs
- M6 x 8.5 grub screw: 2 pcs
- 3 mm allen key: 1 pc
- 8 x 130 spindle: 1 pc
- M6 x 90 screws: 2 pcs
- Bearing: 2 pcs
Commercial Information
expand_more
Type handle+handle PC 72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 250 x 120 x 70 mm
Dimensions bulk package 322 x 270 x 154 mm
Pieces per small package 1 piece
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

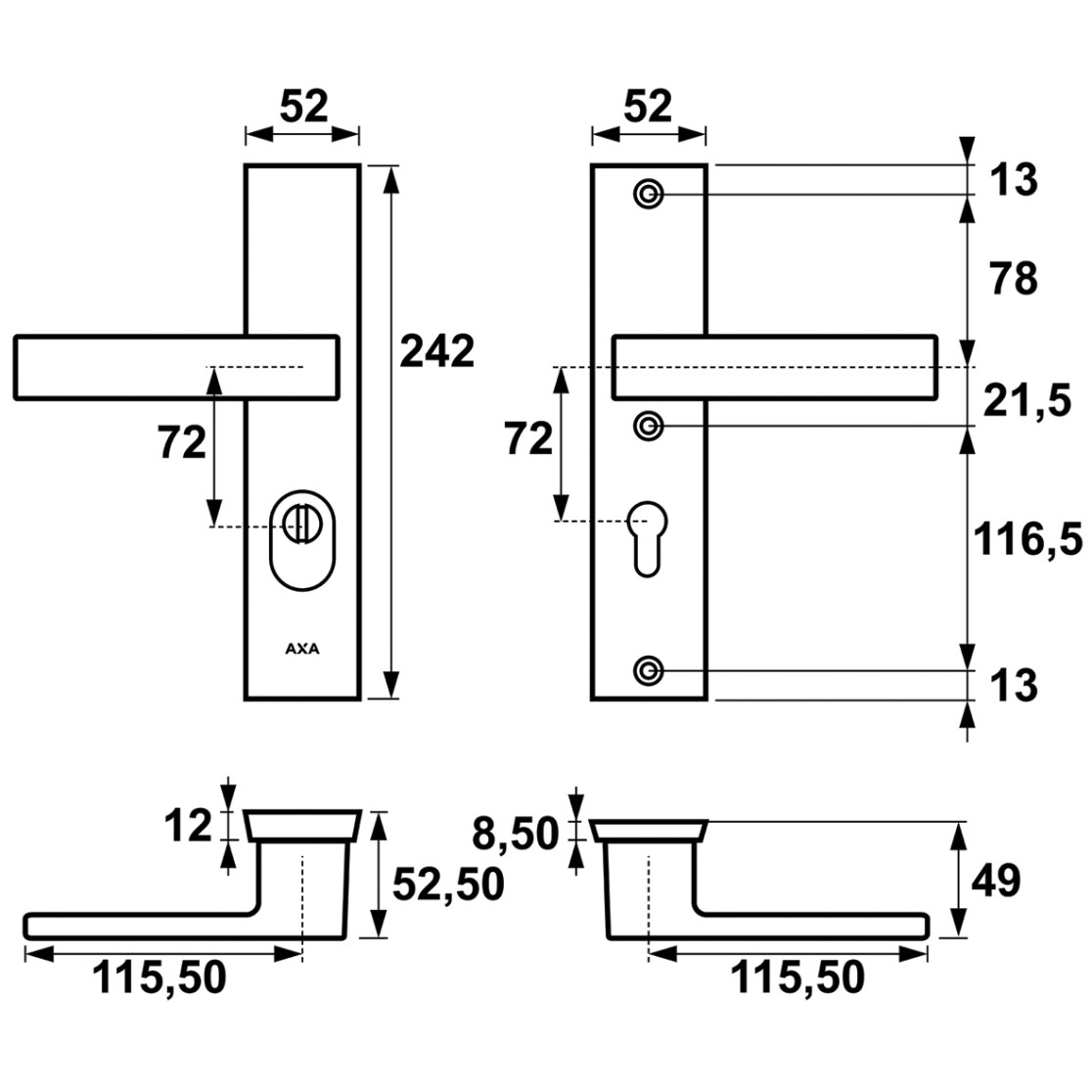

Technical drawings
