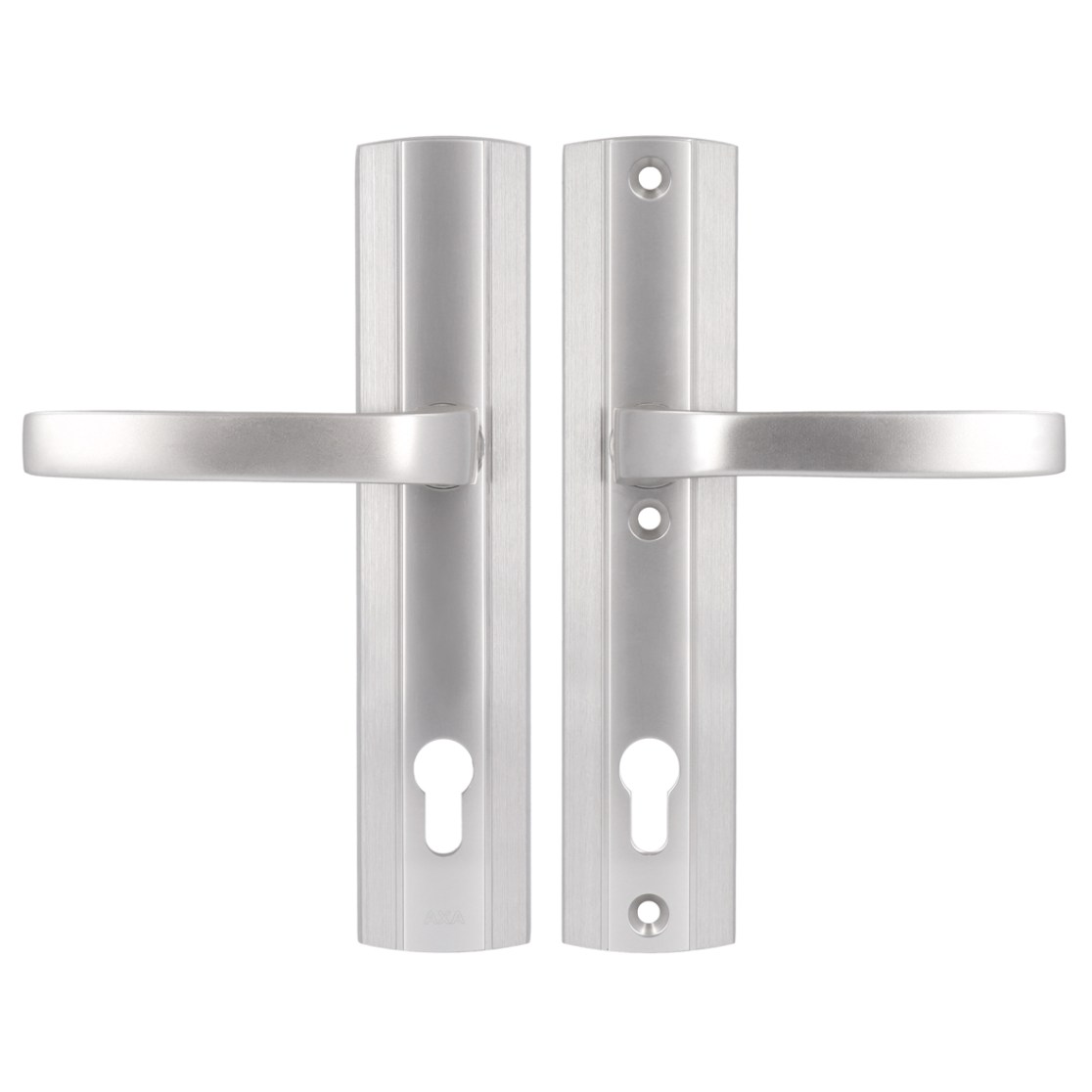

Prestige Standard fittings handle+handle PC 92

ME0XSBE03JC/KXXXXS
arrow_selector
Unique two finishes security fitting dedicated for exterior doors.

Specifications

Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces
Commercial Information
expand_more
Type handle+handle PC 92
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F9, titan
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

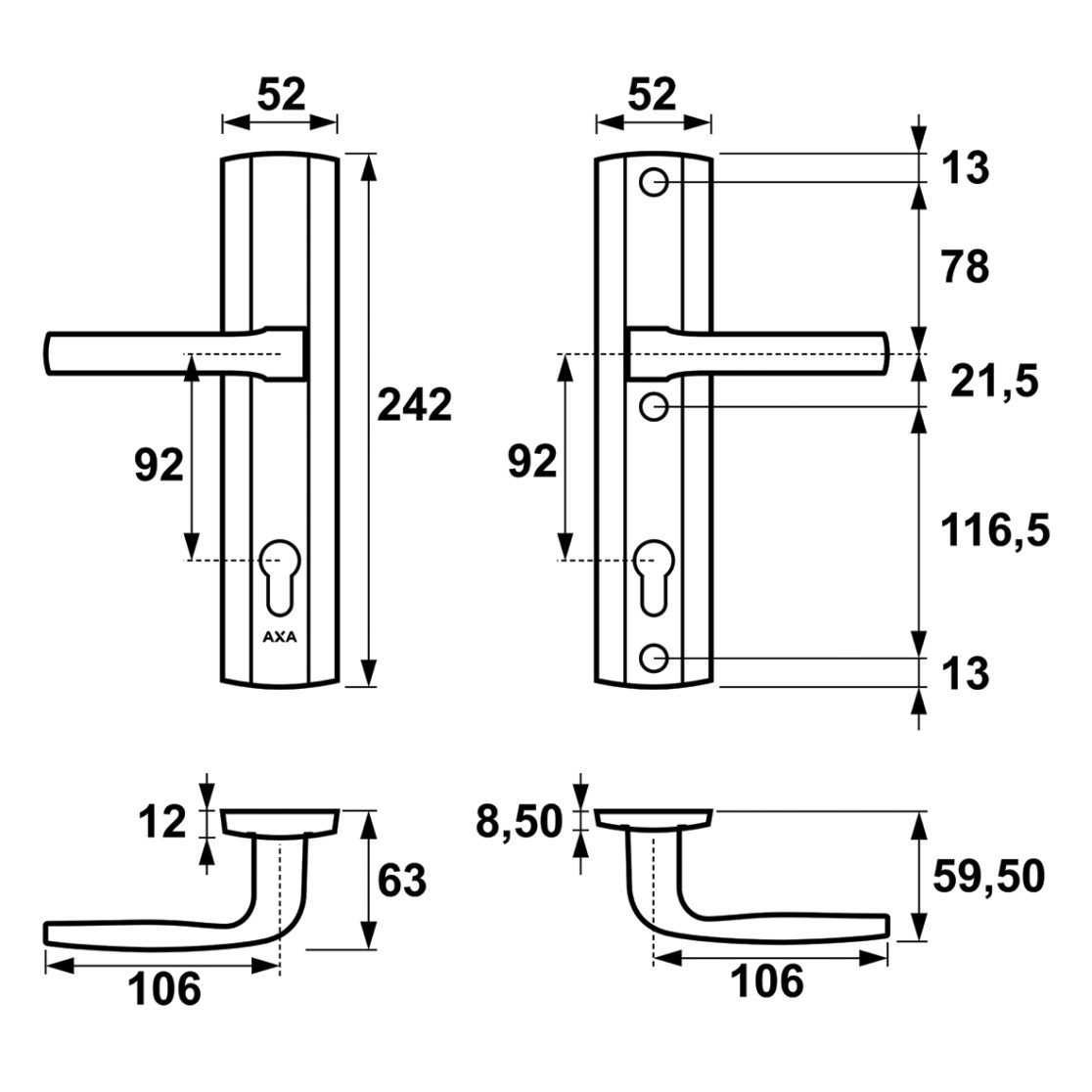

Technical drawings
