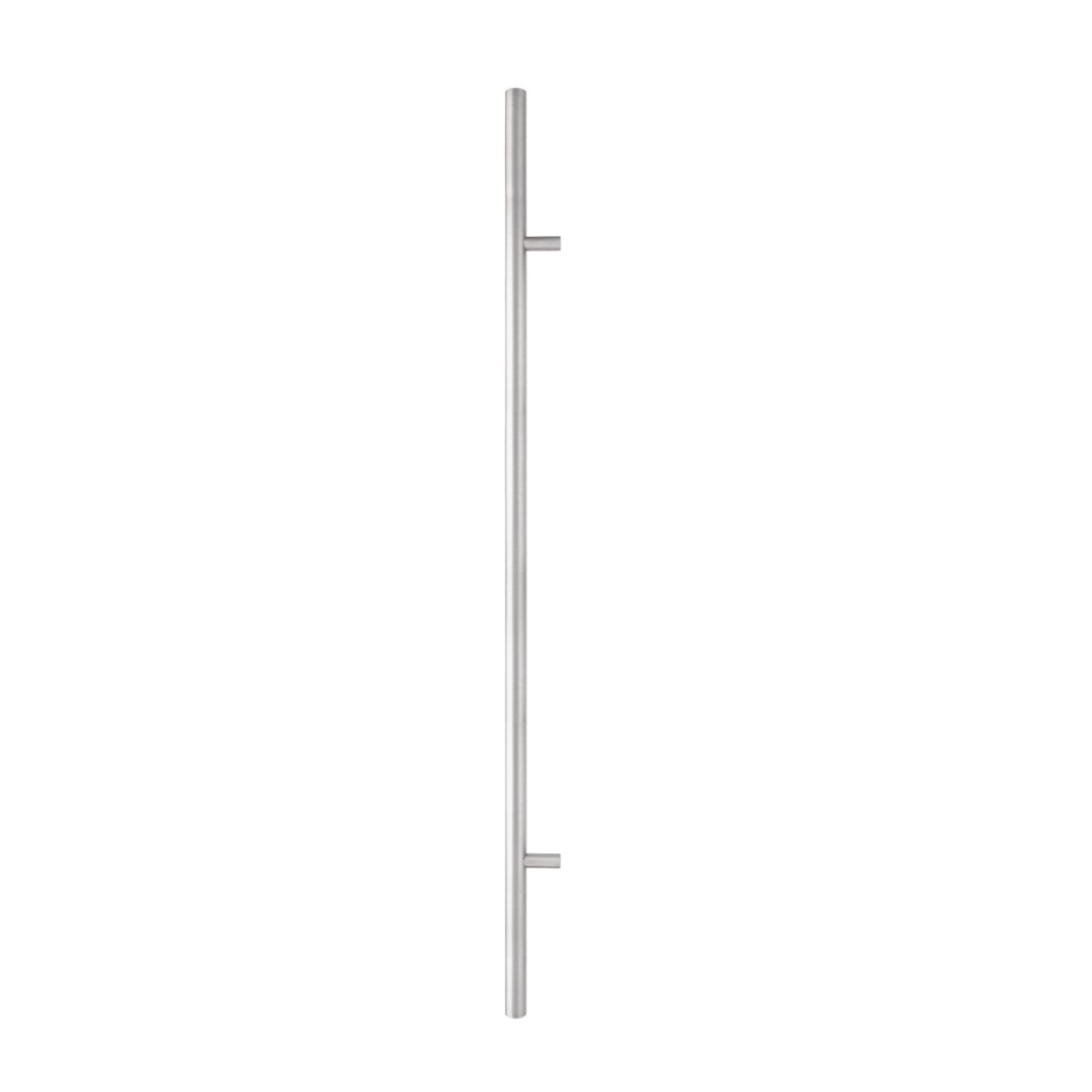

Montreal pull-handle straight one-sided 150 cm bolt-through fix termo

EHLKXXI54XX/WTXSXX
arrow_selector
  • sturdy
  • aluminium
  • for operation from one or two sides
  • for wood, steel, pvc or glass doors (dedicated assembly kits available)
  • wide offer pull-handle hardware available - SOLO series
Commercial Information
expand_more
Type 150 cm bolt-through fix termo
Safety / Security Information
expand_more
CE Applicable NO
Technical Information
expand_more
Product Length 1500 mm
Shape round
Heart to heart size 998 mm
Material Aluminum
Finish Polished anodised F6, Inox
Electro button No
Logistical Information
expand_more
Dimensions small package 1055x130x50 mm
Mounting information
expand_more
Assembly time 20 min
Recommended Mounting Materials
- 30 or 40 mm pin (length depending on door thickness): 4 pcs
- brass or thermal muffle (length depending on door thickness): 2 pieces
- hubcap: 2 pieces
- uni sleeve: 2 pieces
- aluminium washers: 2 pieces
- allen wrenches 3 and 4
- set screw: 4 pieces

Available mounting kits for glass, pvc and aluminium doors.

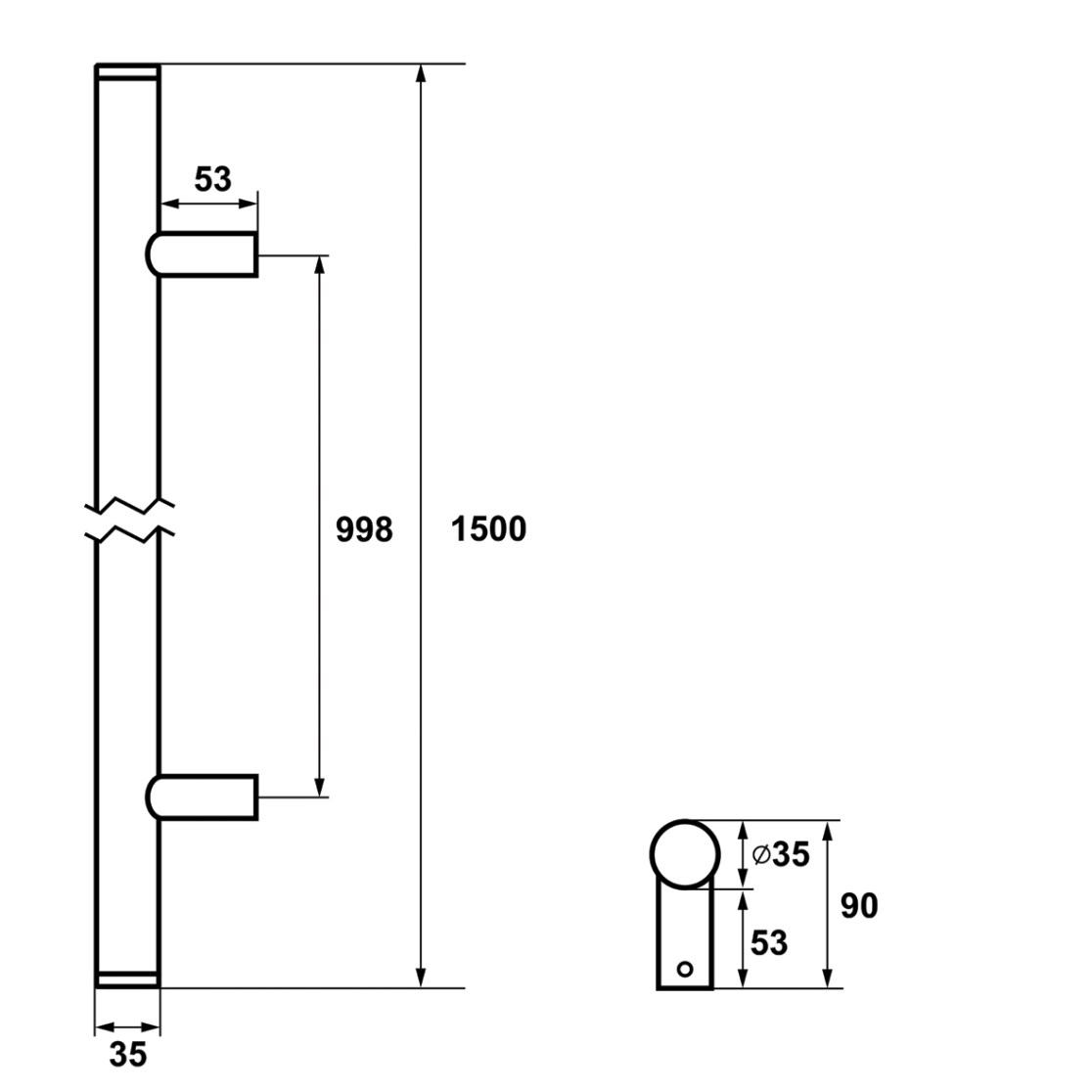

Technical drawings
