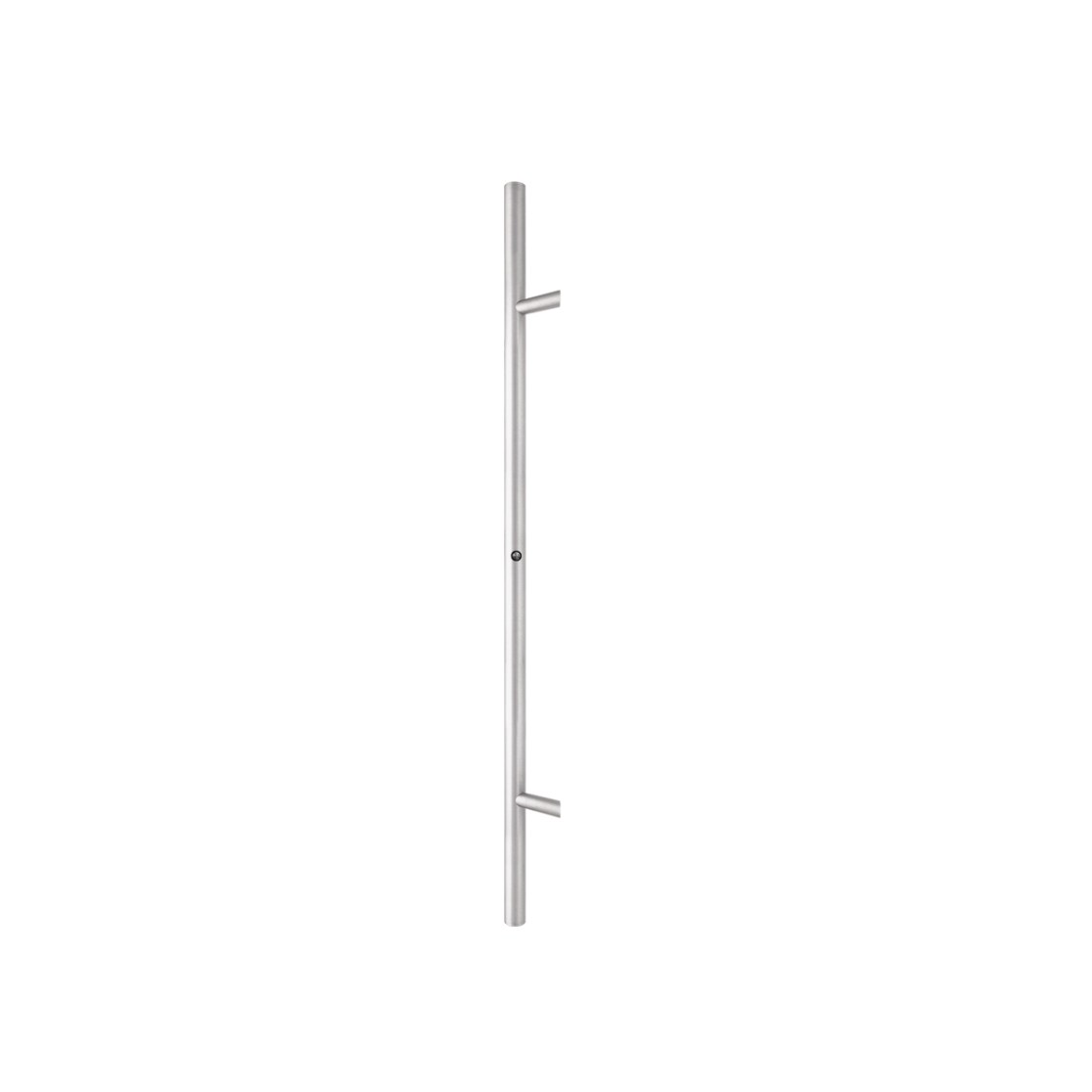

Montreal pull-handle angled one-sided 120 cm concealed fix push butt.

EGLCXAI00XX/WXXXXX
arrow_selector
close
Sleek design beautifully finished pull handle, available in 5 colours, dedicated for wwoden, pvc and aluminium doors.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- uni sleeve: 2 pieces
- wood konfirmat screw: 2 pieces
- allen wrenches
- set screw: 4 pieces

Available mounting kits for glass, pvc and aluminium doors.
Commercial Information
expand_more
Type 120 cm concealed fix push butt.
Safety / Security Information
expand_more
CE Applicable NO
Technical Information
expand_more
Product Length 1200 mm
Shape round
Heart to heart size 800 mm
Material Aluminum
Finish Polished anodised F6, Inox
Electro button Yes, wired
Logistical Information
expand_more
Dimensions small package 1055x130x50 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

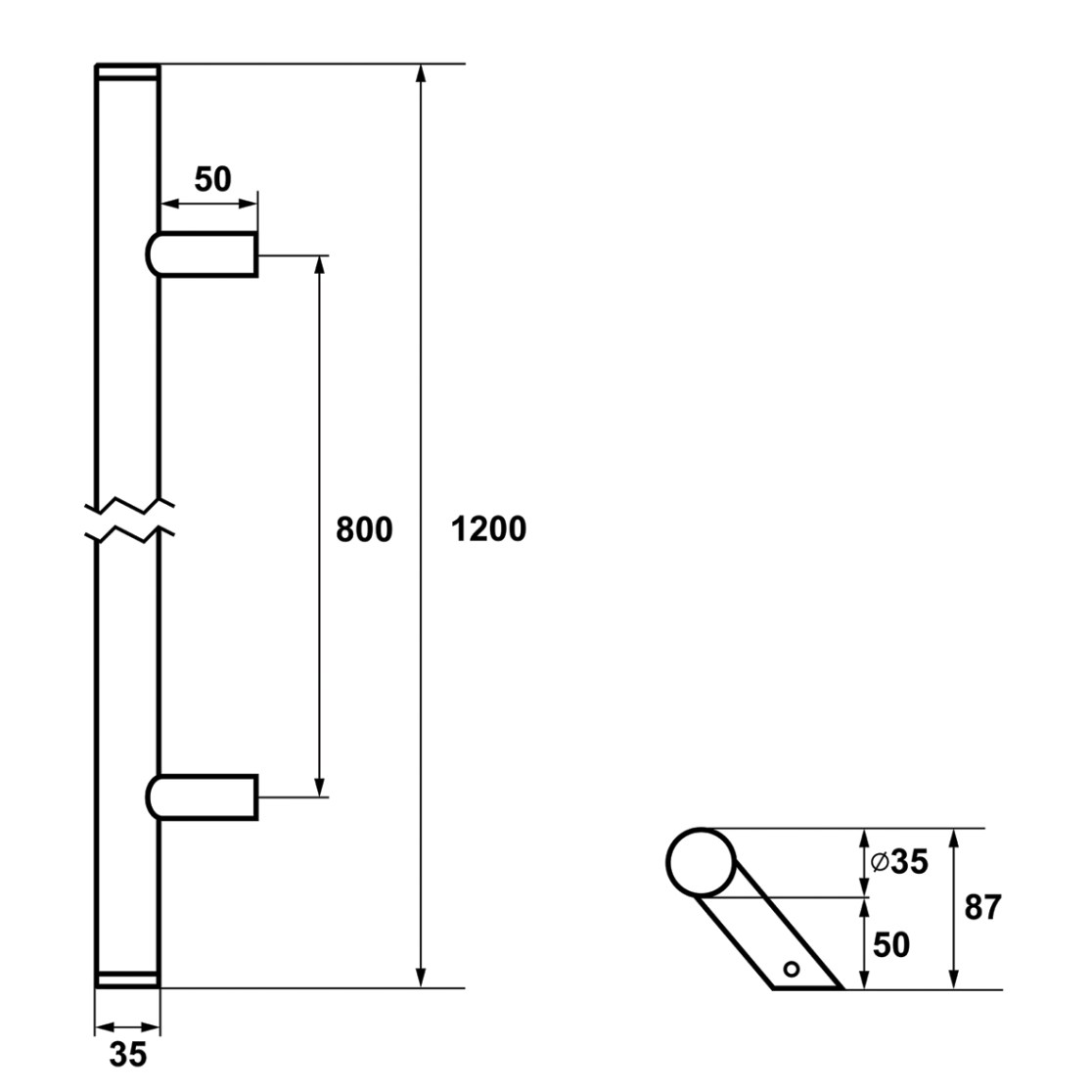

Technical drawings
