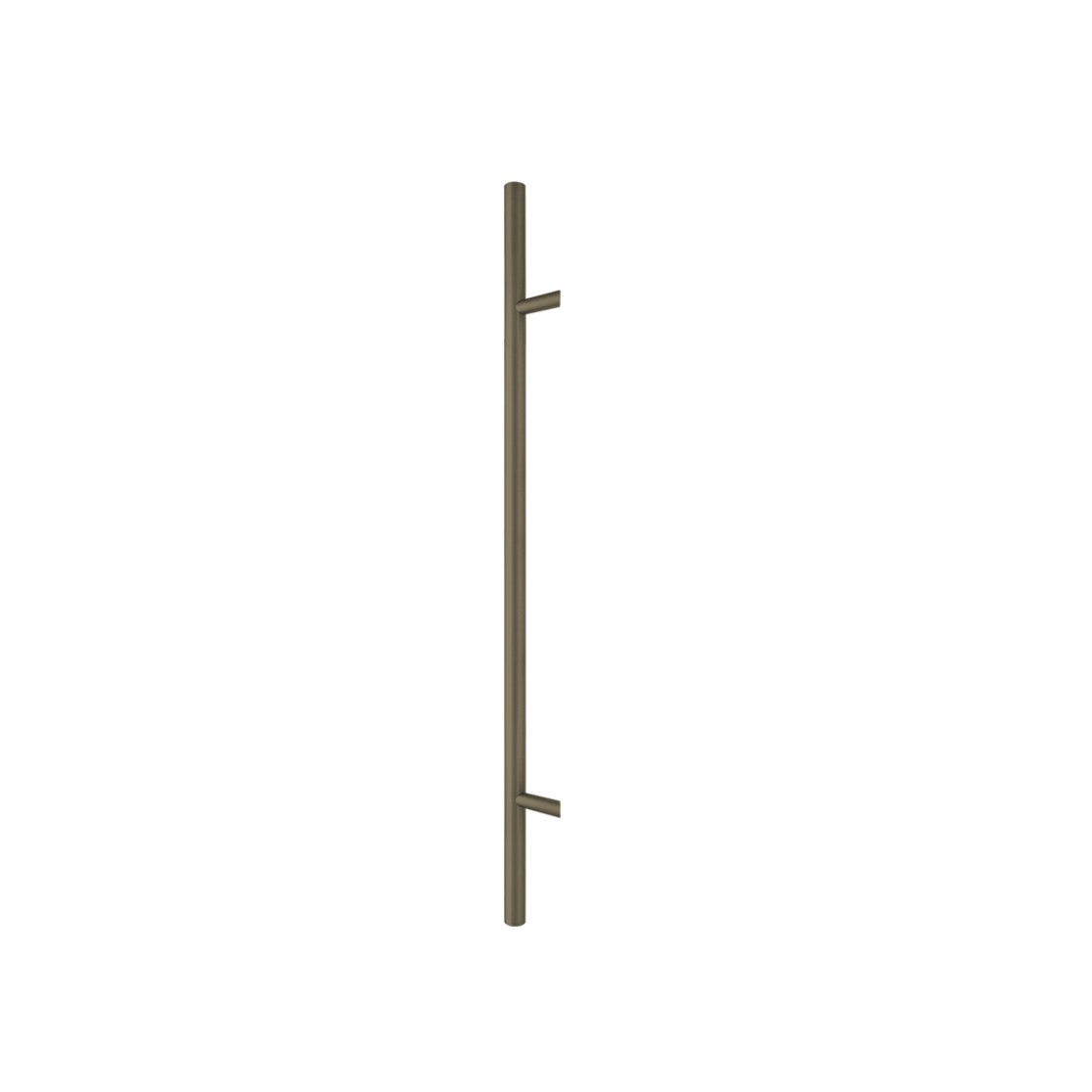

Montreal pull-handle angled one-sided 120 cm bolt-through fix

EILCXXD54XX/WXXXXX
arrow_selector
Sleek design beautifully finished pull handle, available in 5 colours, dedicated for wwoden, pvc and aluminium doors.

Specifications

Recommended Mounting Materials
- 30 or 40 mm pin (length depending on door thickness): 4 pcs
- brass or thermal muffle (length depending on door thickness): 2 pieces
- hubcap: 2 pieces
- uni sleeve: 2 pieces
- aluminium washers: 2 pieces
- allen wrenches 3 and 4
- set screw: 4 pieces

Available mounting kits for glass, pvc and aluminium doors.
Commercial Information
expand_more
Type 120 cm bolt-through fix
Safety / Security Information
expand_more
CE Applicable NO
Technical Information
expand_more
Product Length 1200 mm
Shape round
Heart to heart size 800 mm
Material Aluminum
Finish Polished anodised F4, bronze
Electro button No
Logistical Information
expand_more
Dimensions small package 1055x130x50 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

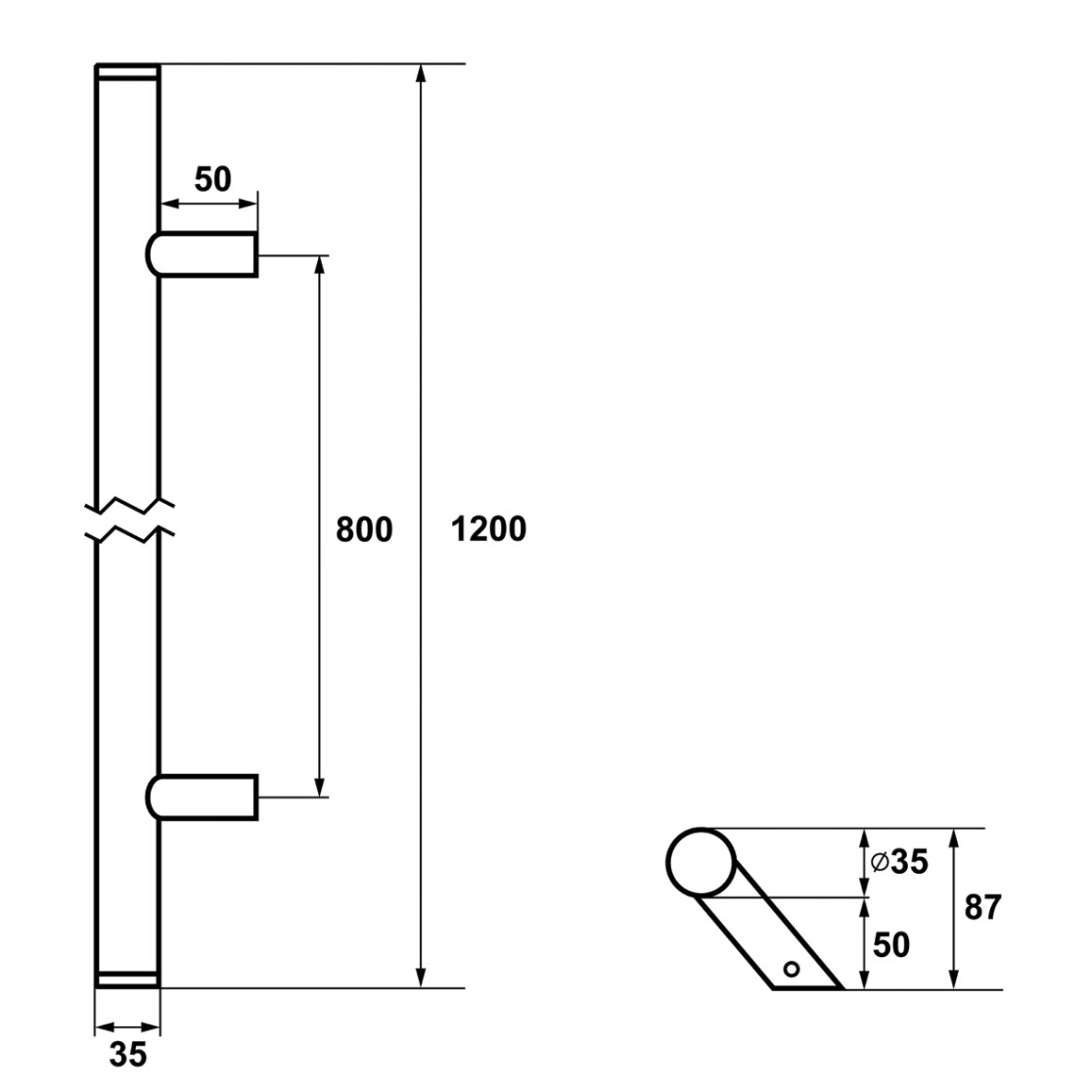

Technical drawings
