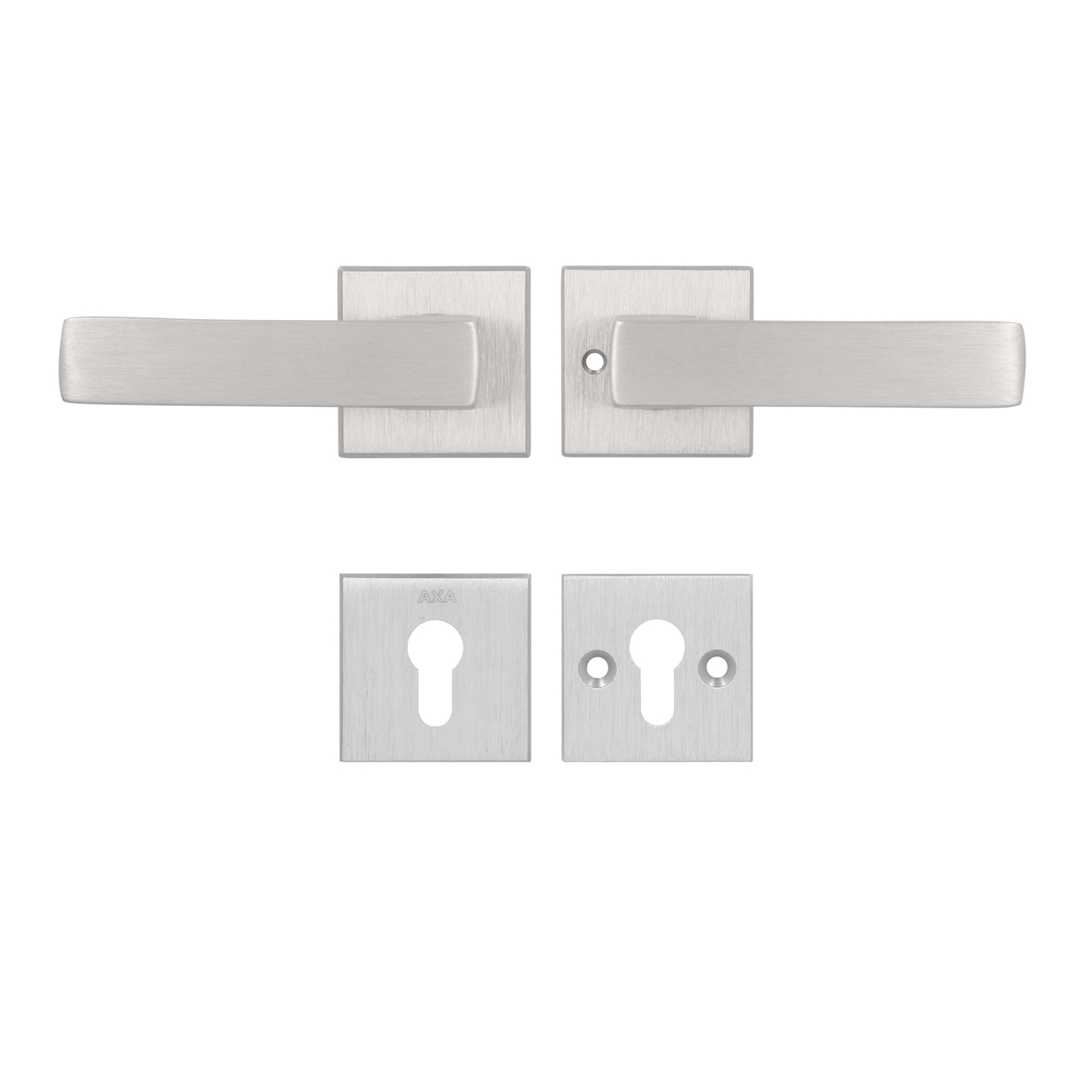

Mars Premium fittings handle+handle+euro lock rosettes

ACRXRBE08RX/KXWXXS
arrow_selector
close
Premium security fittings on square rosettes dedicated for main exterior doors.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
-seals: 2 pieces
-8 x 150 mm spindle (drilled): 1 piece
-8 x 170 mm spindle (drilled): 1 piece
-M6 x 100 mm bolts: 2 pieces
-M5 x 100 mm bolts: 2 pieces
Commercial Information
expand_more
Type handle+handle+euro lock rosettes
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape square
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Material Aluminum
Finish Polished anodised F9, titan
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

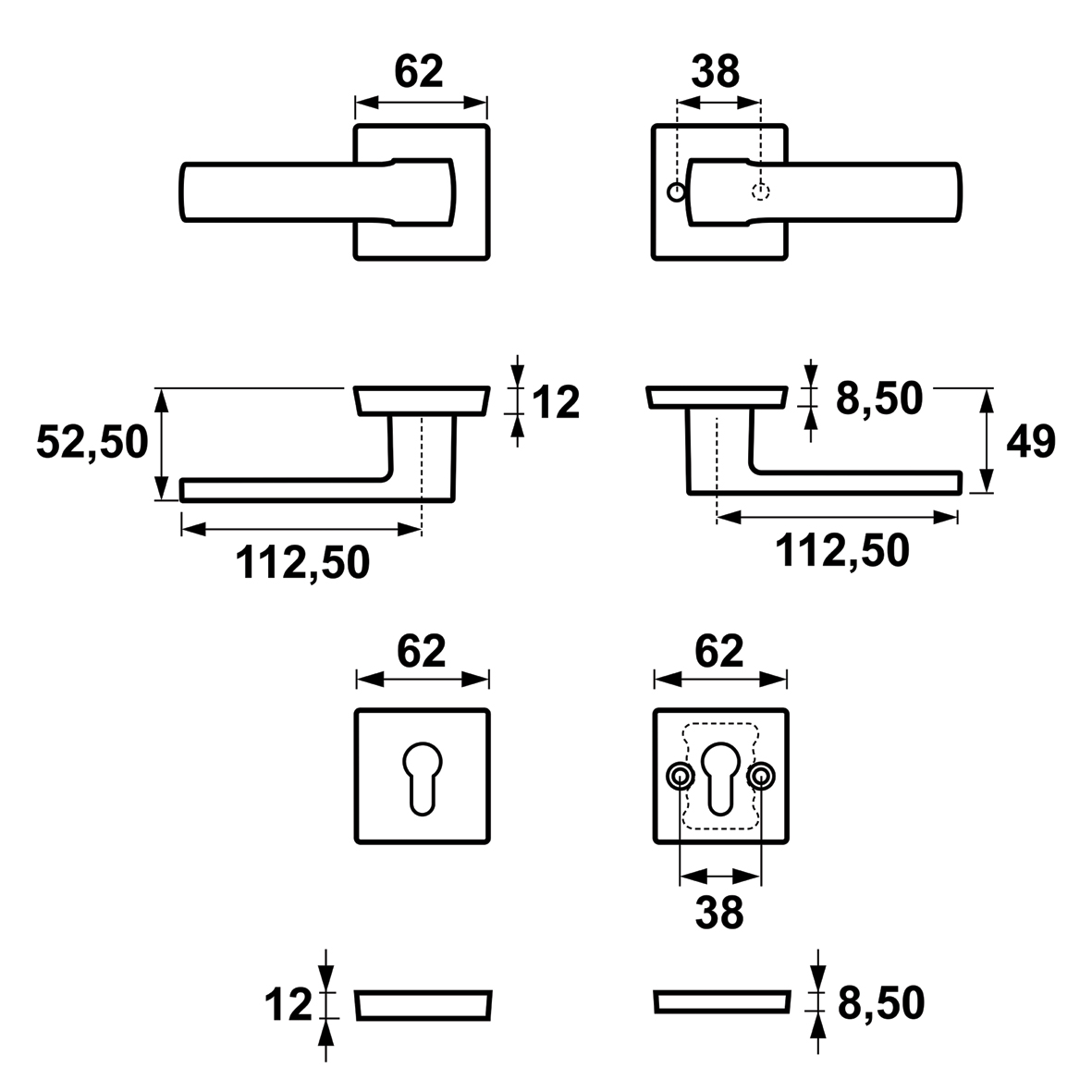

Technical drawings
