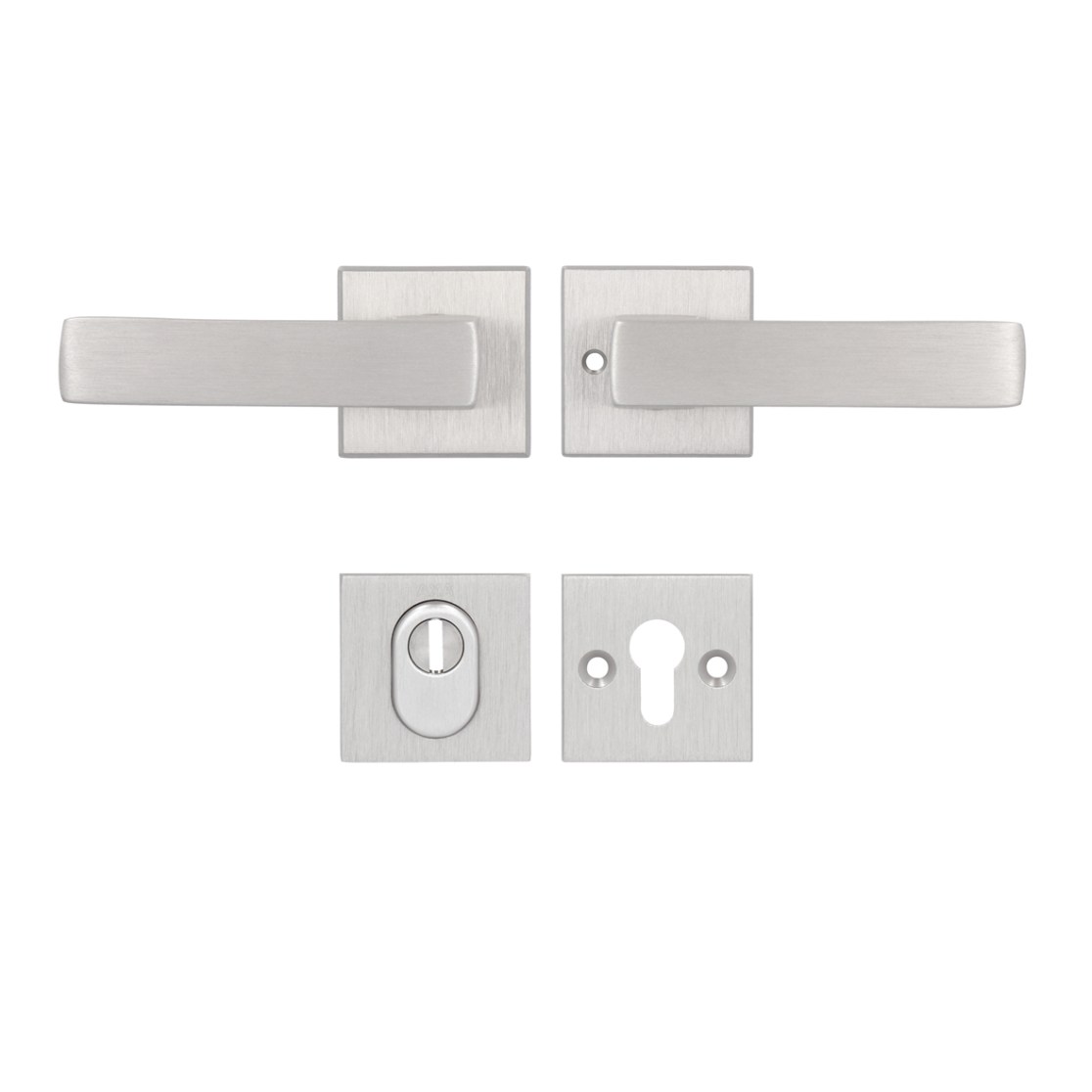

Mars Flex Click fittings handle+handle+euro lock rosettes core protection

ADRXRBI75RX/KXWFXC
arrow_selector

bronze

  • Mars Flex Click fittings on splited rosettes
  • Mars is on square rosette
  • fittings of Premium series - handle is already integrated with the plate( system click)
  • significantly thicker and stronger spring located in the handle
  • ideal for intensive use
  • for both left and right-opening doors
  • available in five colours in regular offer
  • finely brushed and less sensitive to scratches
Commercial Information
expand_more
Type handle+handle+euro lock rosettes core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Cradle to Cradle certification bronze
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape square
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 10 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 100 mm bolts: 2 pieces
- M5 x 100 mm bolts: 2 pieces
- 8 x 160 mm spindle: 1 piece

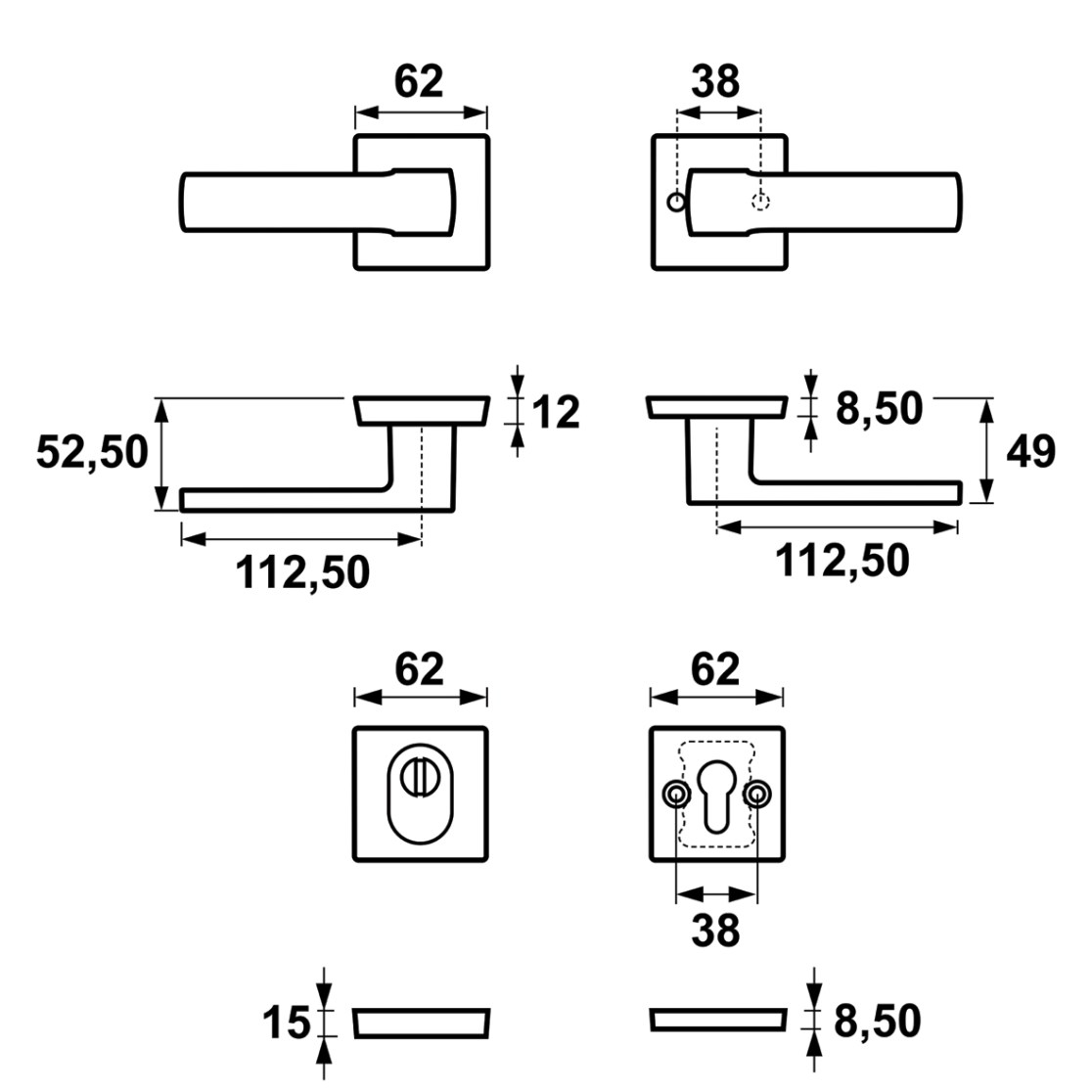

Technical drawings
