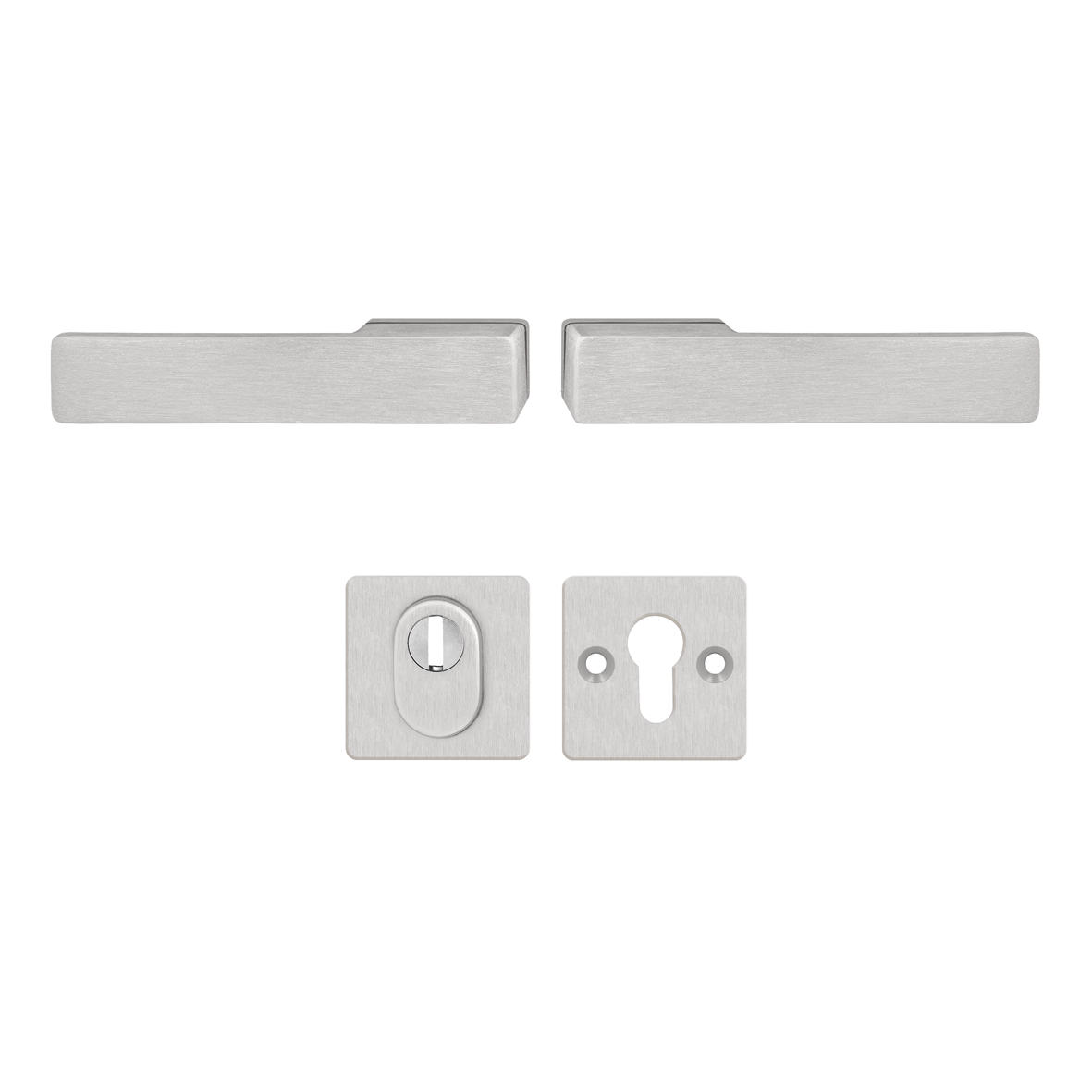

Libera fittings handle+handle+euro lock rosettes core protection

MNIXRBI75RX/KXXFXC
arrow_selector
close

Libera is a handle model in a modern shape, on a concealed rectangular rosette. Libera is dedicated to both internal and external doors.

Aluminium, integrated handle
  • Modern handle on a rectangular concealed rosette
  • Handle dedicated to internal and external doors
  • Significantly thicker and stronger spring located in the handle
  • Ideal for intensive use
  • For both left and right-opening doors
  • Dedicated assembly set of the screws included
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+handle+euro lock rosettes core protection
Safety / Security Information
expand_more
Burglarproof YES
Anti-snap protection YES
Police Hallmark NO
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Material Aluminum
Finish Anodised F6, inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm mm
Dimensions bulk package 322 x 270 x 154 mm mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 10 min
Recommended Mounting Materials
M5x100 bolts: 1 pcs
M6x100 bolts: 2 pcs
8x150 spindel: 1 pcs
mounting sleeves: 2pcs
mounting plate: 1pcs

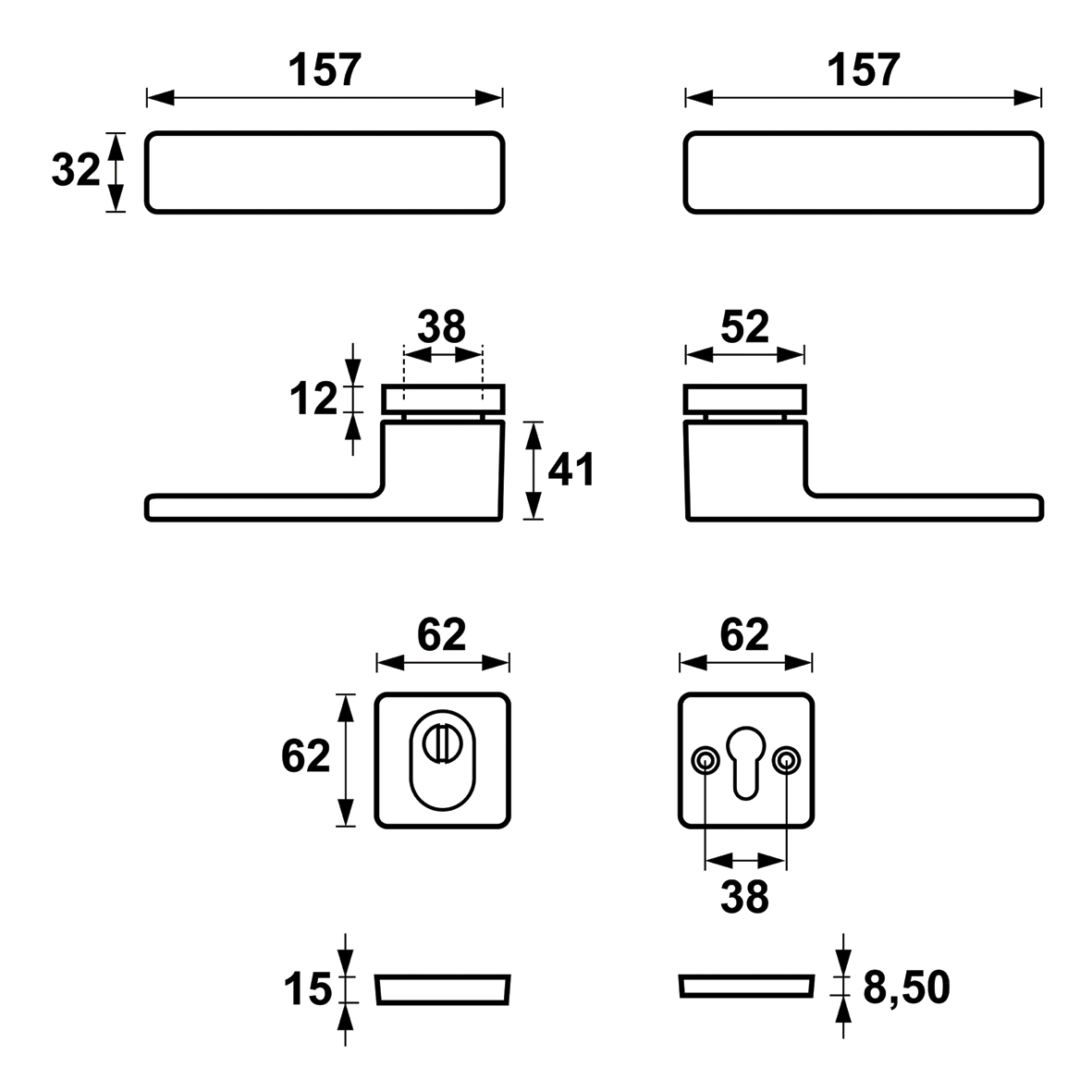

Technical drawings
