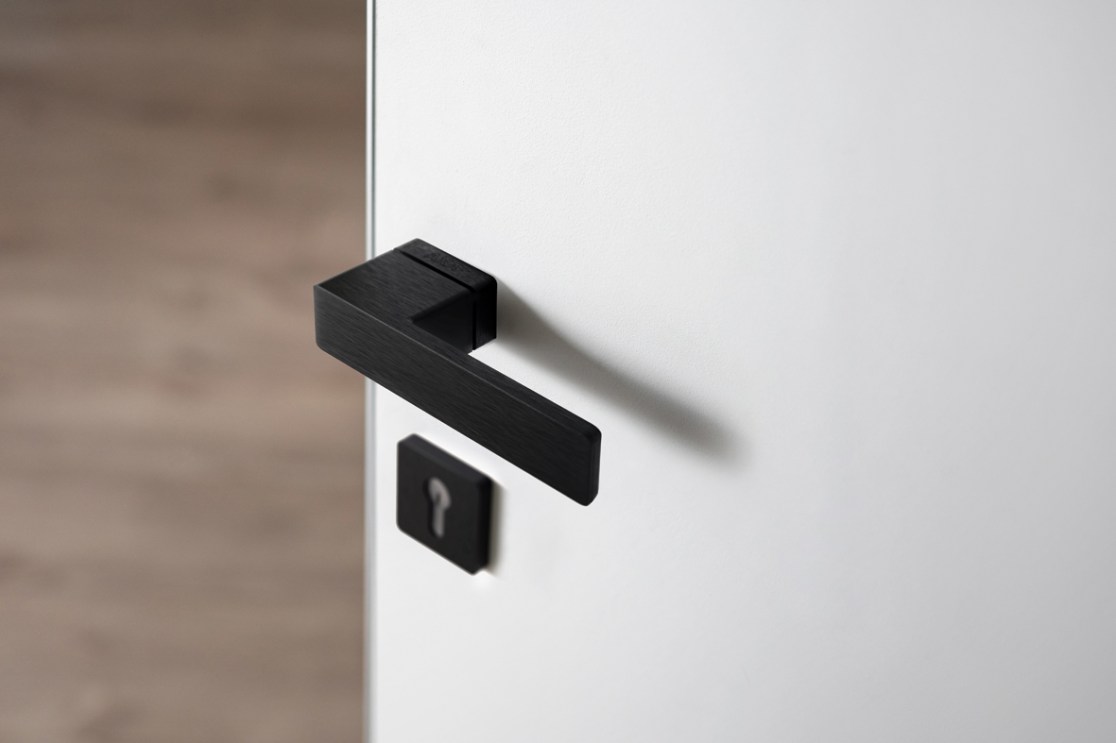

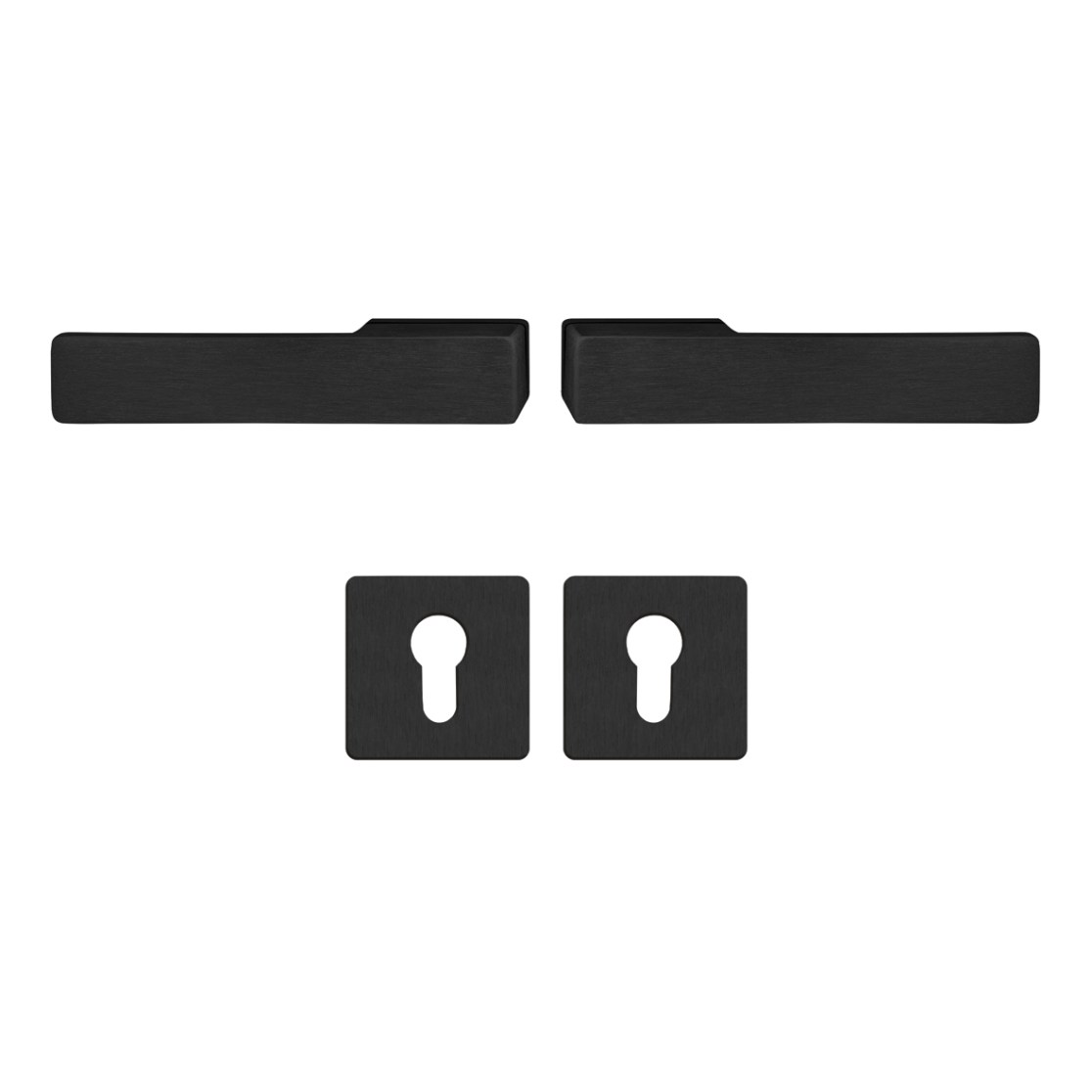

Libera fittings handle+handle+euro lock rosettes

MNIXRBF02CX/KXXXXC
arrow_selector
Aluminium, integrated handle
  • Modern handle on a rectangular concealed rosette
  • Handle dedicated to internal and external doors
  • Significantly thicker and stronger spring located in the handle
  • Ideal for intensive use
  • For both left and right-opening doors
  • Dedicated assembly set of the screws included
Commercial Information
expand_more
Type handle+handle+euro lock rosettes
Safety / Security Information
expand_more
Burglarproof NO
Police Hallmark NO
Technical Information
expand_more
Product Length 52 mm
Product Width 52 mm
Direction of rotation outward and inward-opening
Handle assembly handle integrated in backplate/rosettes
Material Aluminum
Finish Anodised F8, black
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm mm
Dimensions bulk package 322 x 270 x 154 mm mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 10 min
Recommended Mounting Materials
M5x50 bolts: 2pcs
8x110 spindel: 1 pcs
mounting sleeves for handle: 2pcs
mounting plate for handle: 1pcs
M5x50 screws: 2pcs
mounting sleeves for rosettee: 2pcs
mounting plate for rosette: 1pcs

Technical drawings
