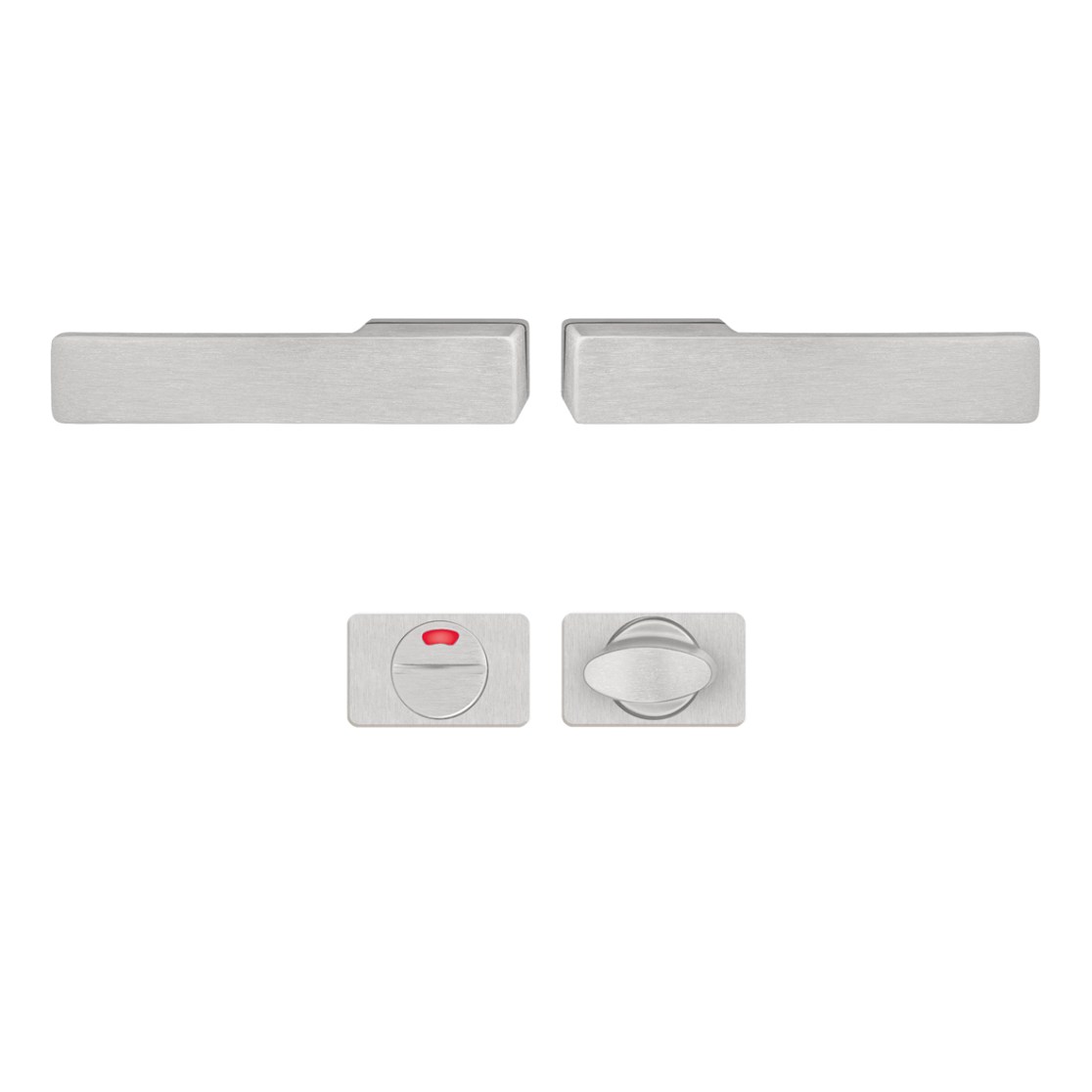

Libera fittings handle+handle+ TL rosettes

MNIXRCI02CX/KXXXXC
arrow_selector
close
Libera is a handle model in a modern shape, on a concealed rectangular rosette. Libera is dedicated to both internal and external doors.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
M5x50 bolts: 2pcs
8x110 spindel: 1 pcs
mounting sleeves for handle: 2pcs
mounting plate for handle: 1pcs
M5x50 screws: 2pcs
mounting sleeves for rosettee: 2pcs
mounting plate for rosette: 1pcs
spindel reducer: 1 pcs
4x76 spindel: 1pcs
Commercial Information
expand_more
Type handle+handle+ TL rosettes
Safety / Security Information
expand_more
Burglarproof NO
Police Hallmark NO
Technical Information
expand_more
Product Length 52 mm
Product Width 32 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Material Aluminum
Finish Anodised F8, black
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm mm
Dimensions bulk package 322 x 270 x 154 mm mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 10 min

Technical drawings
