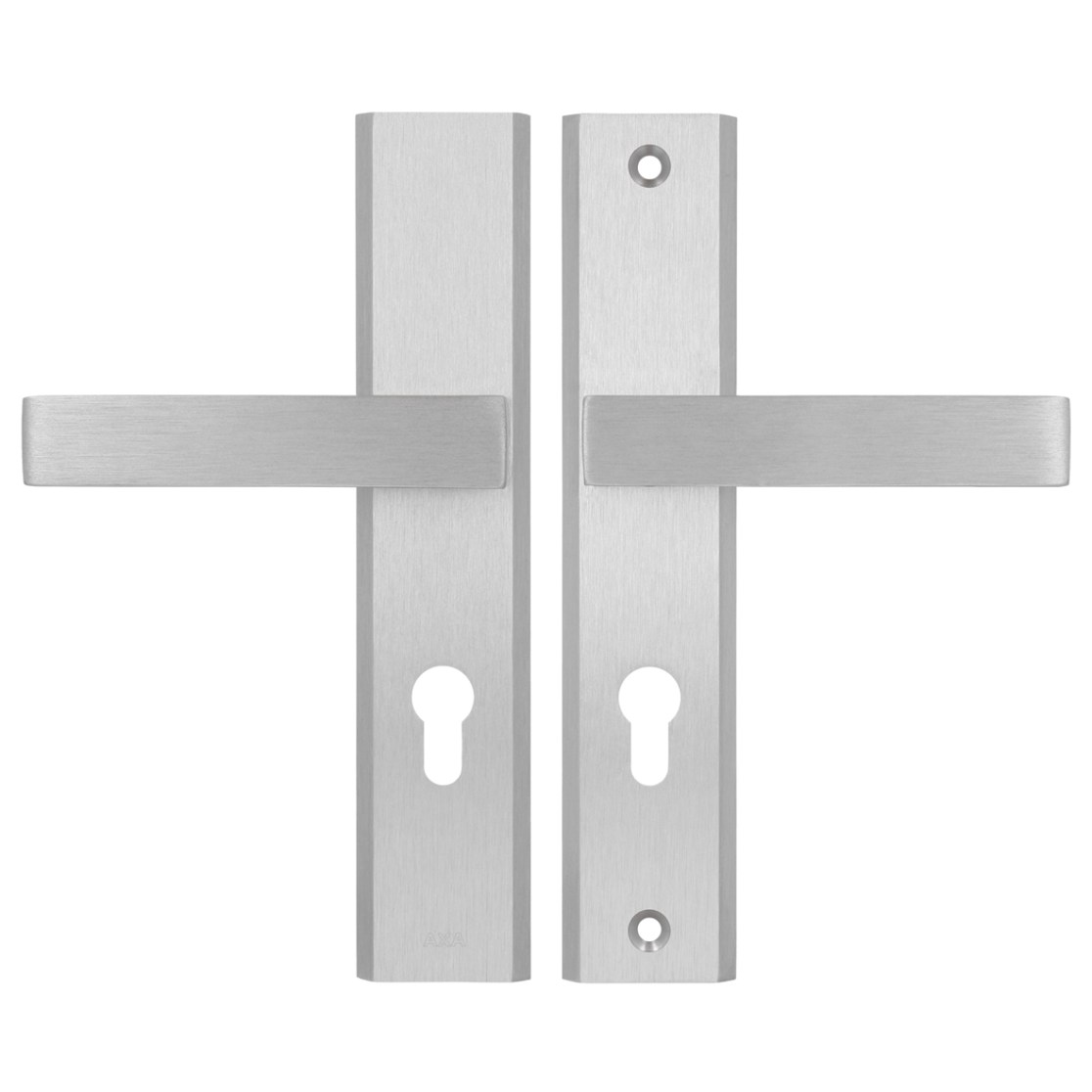

Haga++ fittings handle+handle PC 72

AOMXSBF08JA/KXXXXZ
arrow_selector
close
AXA++ serie. Integrated fitting, with handle support in both - internal and external plates, in 1st security class, without cylinder protection.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- Seals: 2 pcs
- 8x150 spindle: 1 pc
- M6x90 screws: 2 pcs
- Locking plate: 2 pcs
Commercial Information
expand_more
Type handle+handle PC 72
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 1
Anti-snap protection NO
Fire door assemblies NO
Police Hallmark NO
Technical Information
expand_more
Product Length 246 mm
Product Width 50 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 278 x 136 x 65 mm
Dimensions bulk package 348 x 285 x 140 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min

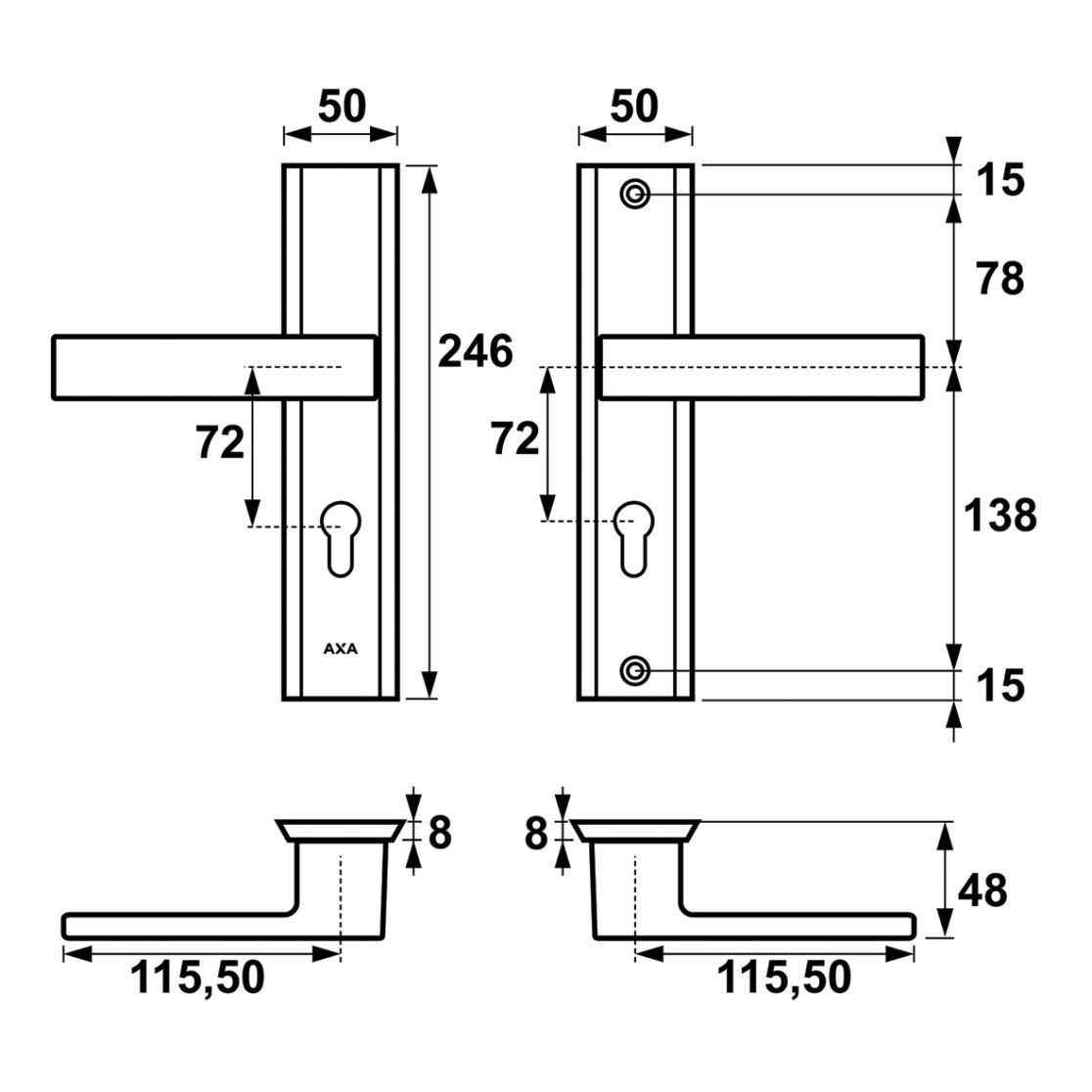

Technical drawings
