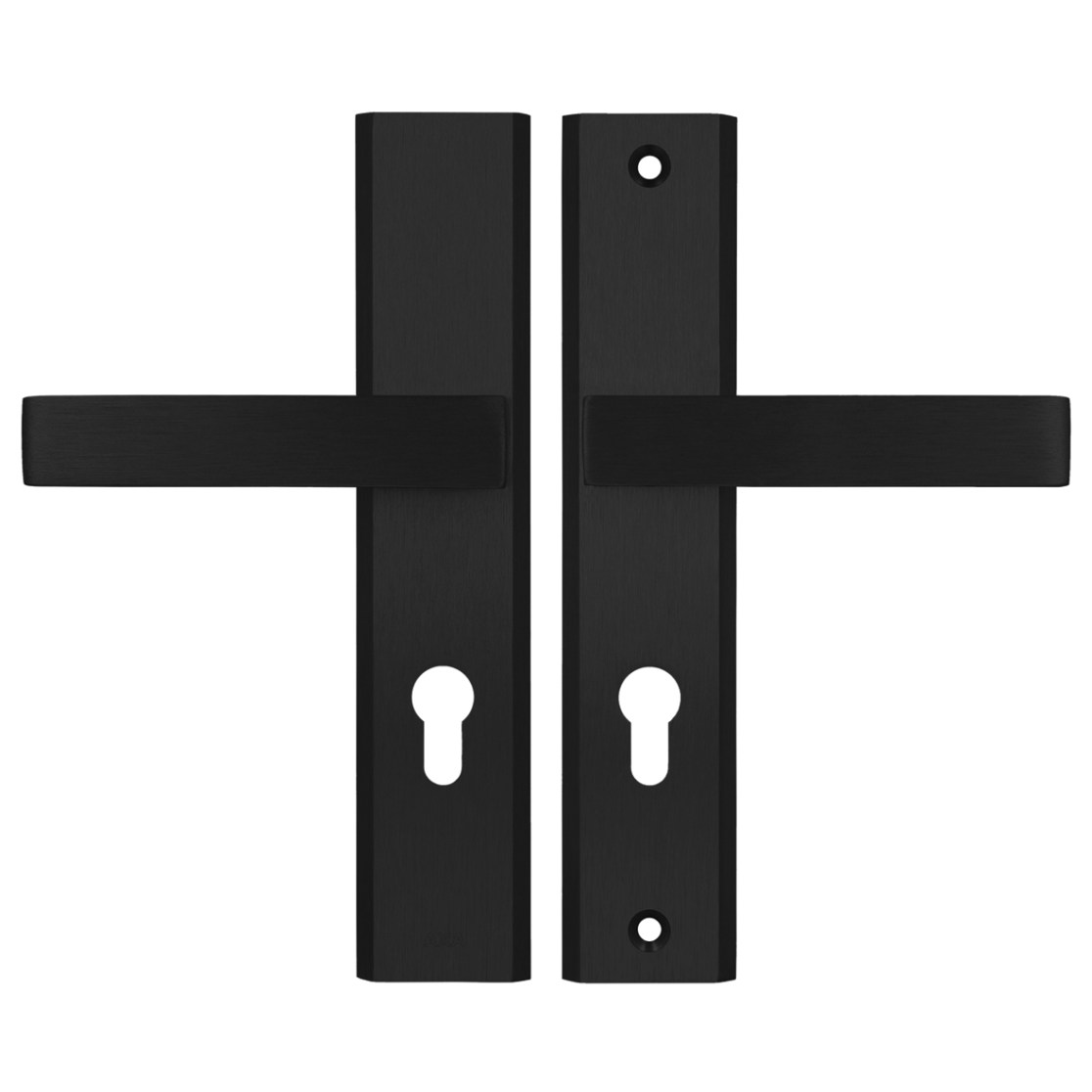

Haga fittings handle+handle PC 72

AOMXSBI03JA/KXXXXB
arrow_selector
Solid and reliable security fittings dedicated for exterior doors.

Specifications

Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces
Commercial Information
expand_more
Type handle+handle PC 72
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 246 mm
Product Width 50 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min

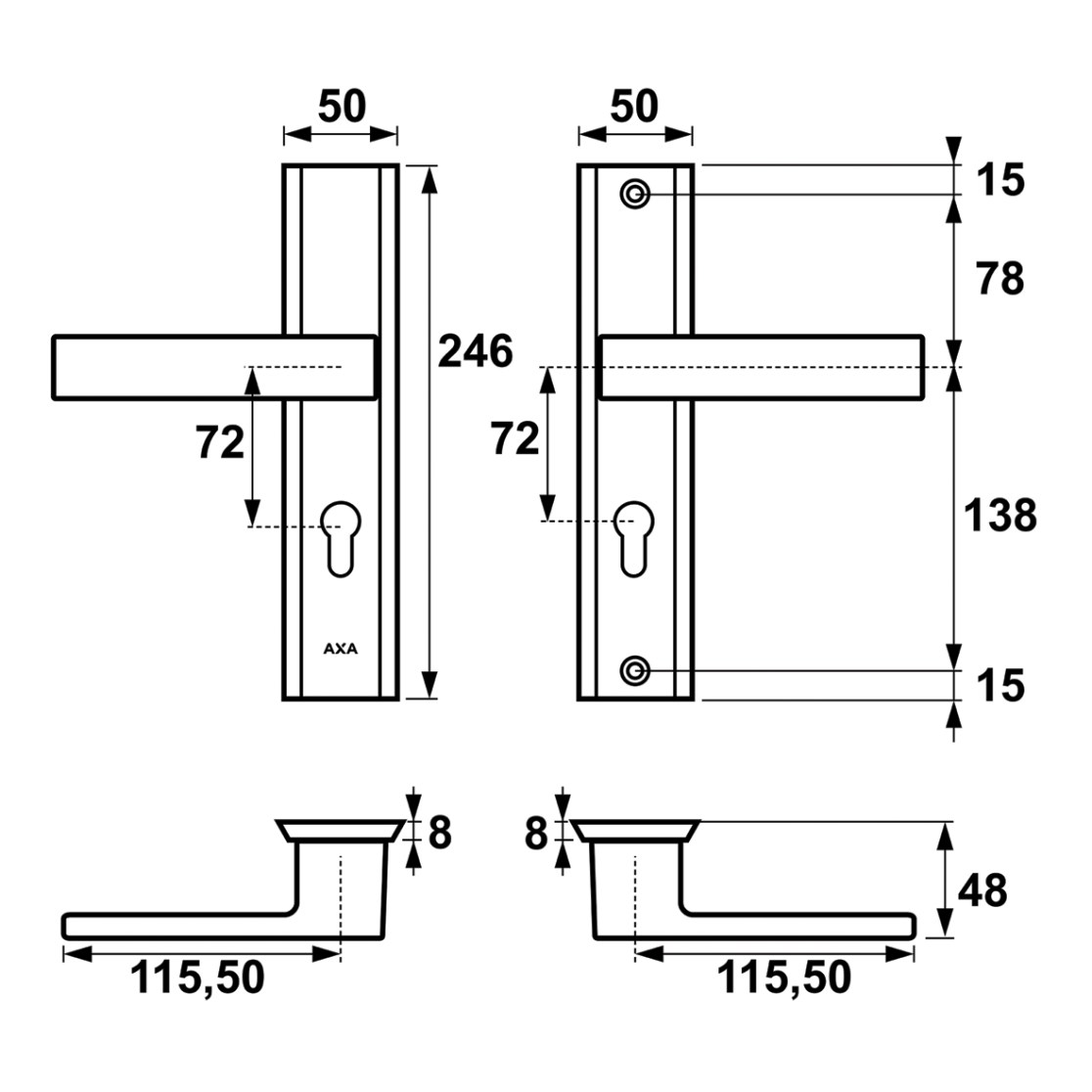

Technical drawings
