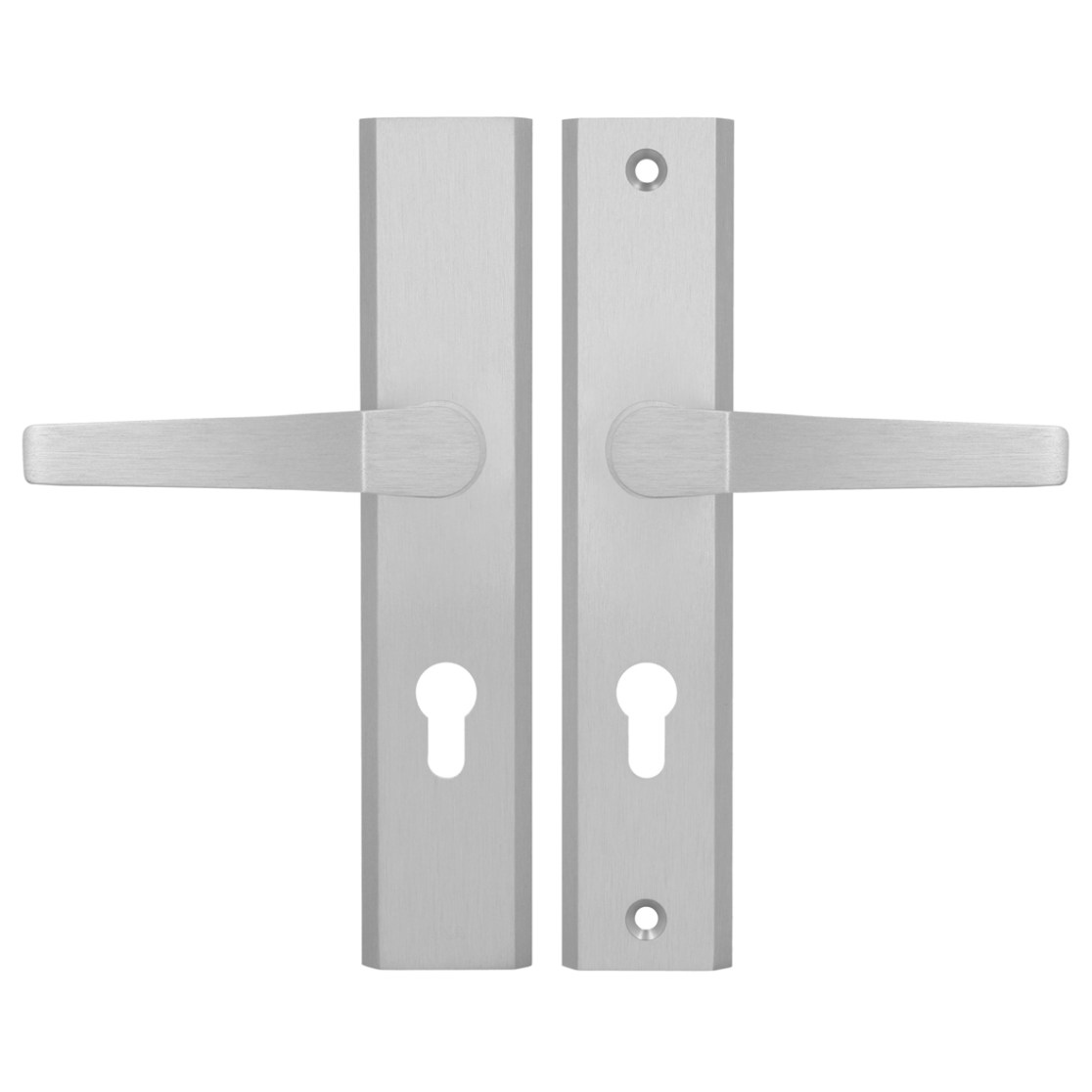

Fast Premium handle+handle PC 72

AO1XSBI08JA/KXPXXS
arrow_selector
Popular and reliable security fittings, dedicated for exterior doors, in Premium Series with integrated handle.

Specifications

Recommended Mounting Materials
- M6 x 90 mm bolts: 2 pcs.
- 8 x 150 mm spindle: 1 pc.
- 8 x 170 mm spindle: 1 pc.
- isolating ring: 2 pcs.
Commercial Information
expand_more
Type handle+handle PC 72
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 246 mm
Product Width 50 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Weight small package 1.295 kg
Weight bulk package 5.5 kg
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min

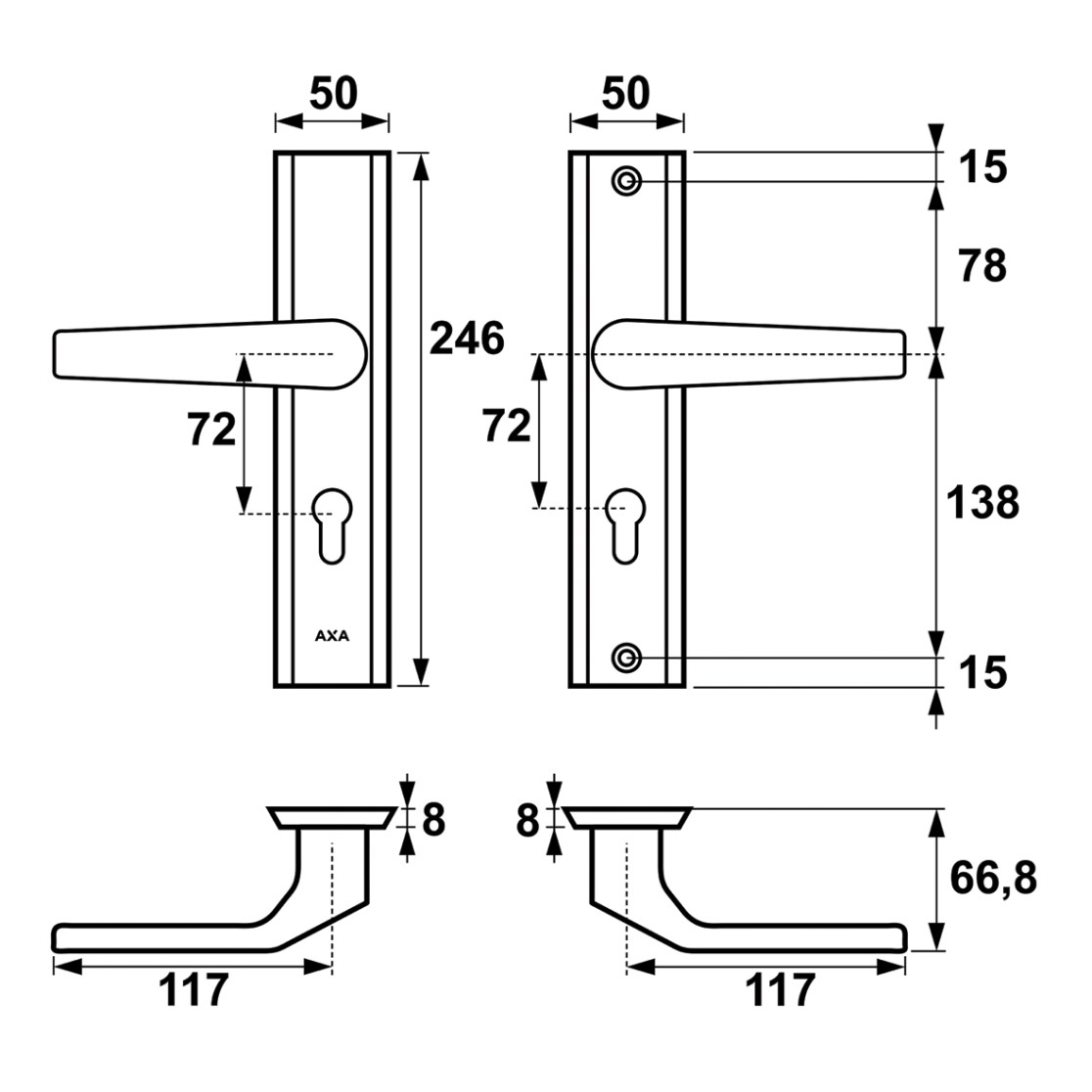

Technical drawings
