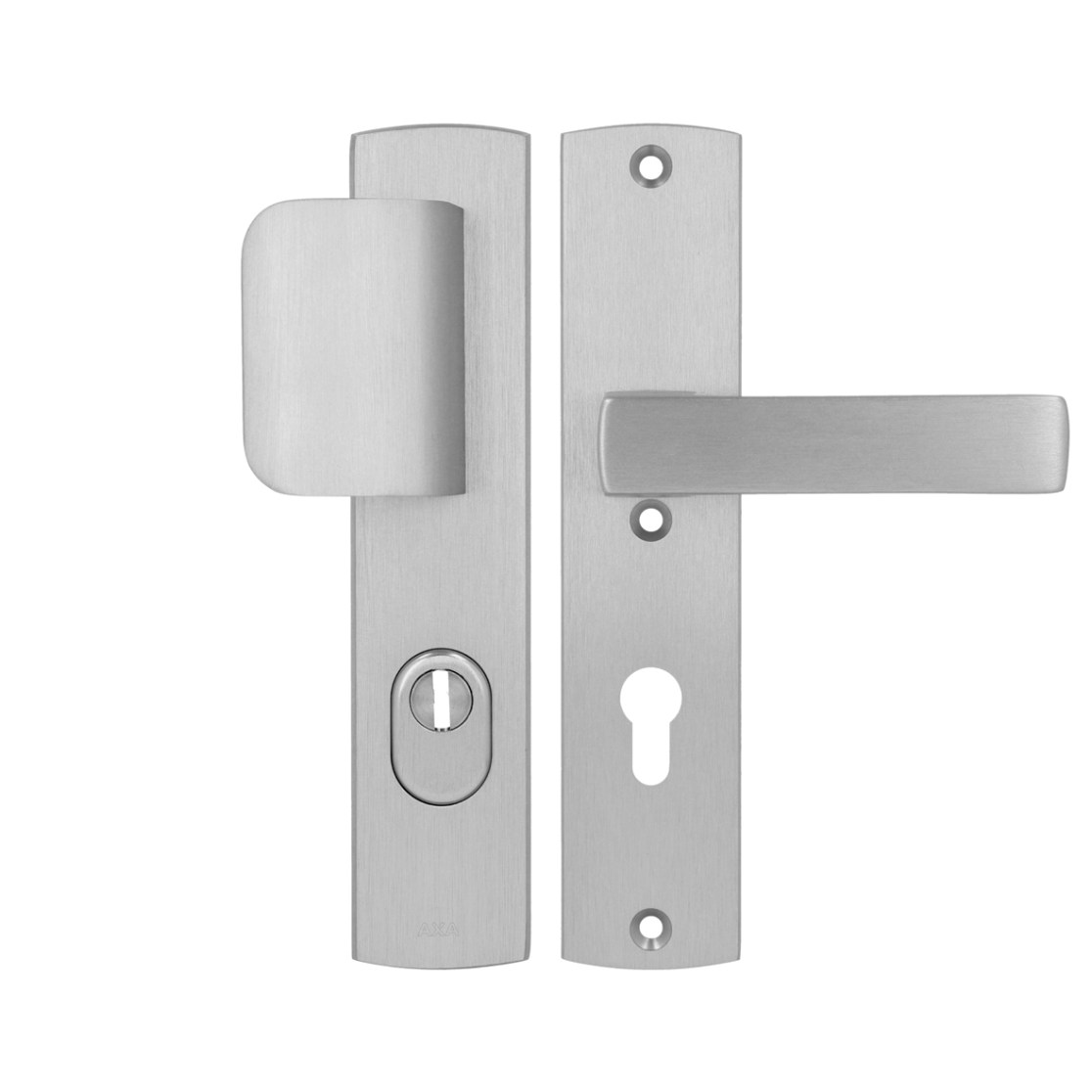

Apollo Flex Premium fittings handle+pusher PC 72 core protection

ATPXSBF03JA/KXWFXS
arrow_selector
close
Solid and reliable curve security fittings with core protection.
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- 4mm allen key
- M6 x 90 mm bolts: 3 pcs.
- 8 x 110 mm spindle: 1 pc.
- M5 x 12 bolts: 2 pcs
- isolating rings
- knob ring
Commercial Information
expand_more
Type handle+pusher PC 72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Dimensions bulk package 330 x 280 x 205 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min

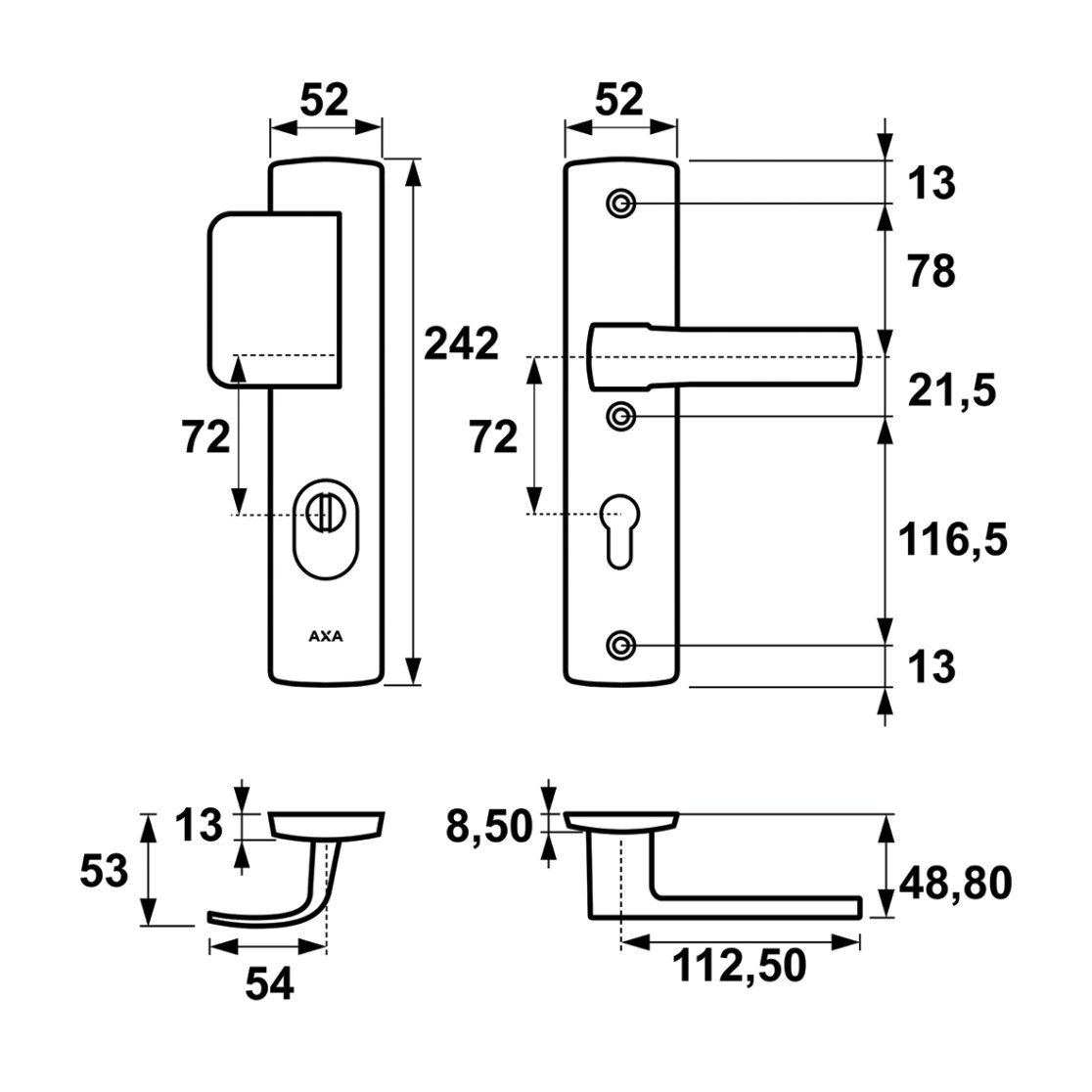

Technical drawings
