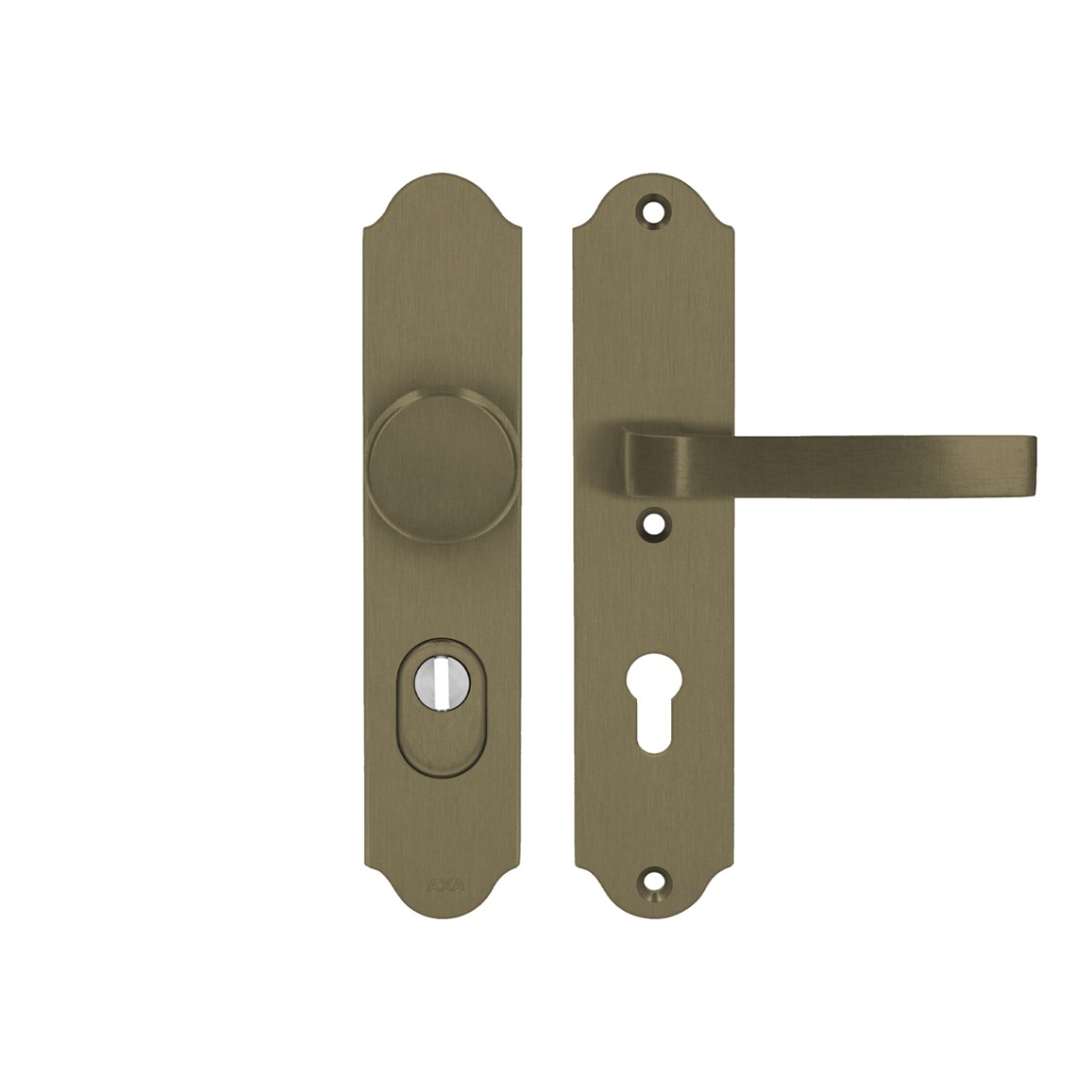

Verona Standard fittings handle+knob PC 72

AVRXSBD03JA/KXFFXZ
arrow_selector
close

Reliable and stylish curve burglar-resistant security fittings.

  • Interesting design of this fittings
  • new product in offer of AXA's external door handles
  • for both left and right-opening doors (the knob is reversible)
  • finely brushed and less sensitive to scratches
  • Verona is available in safety class 3
  • 5-year warranty
  • available in 2 colours
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+knob PC 72
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Anodised F4, bronze
Finish 2 Anodised F8, black
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- 8x150 pin: 1 pcs
- M6 x 90 screws: 2 pcs

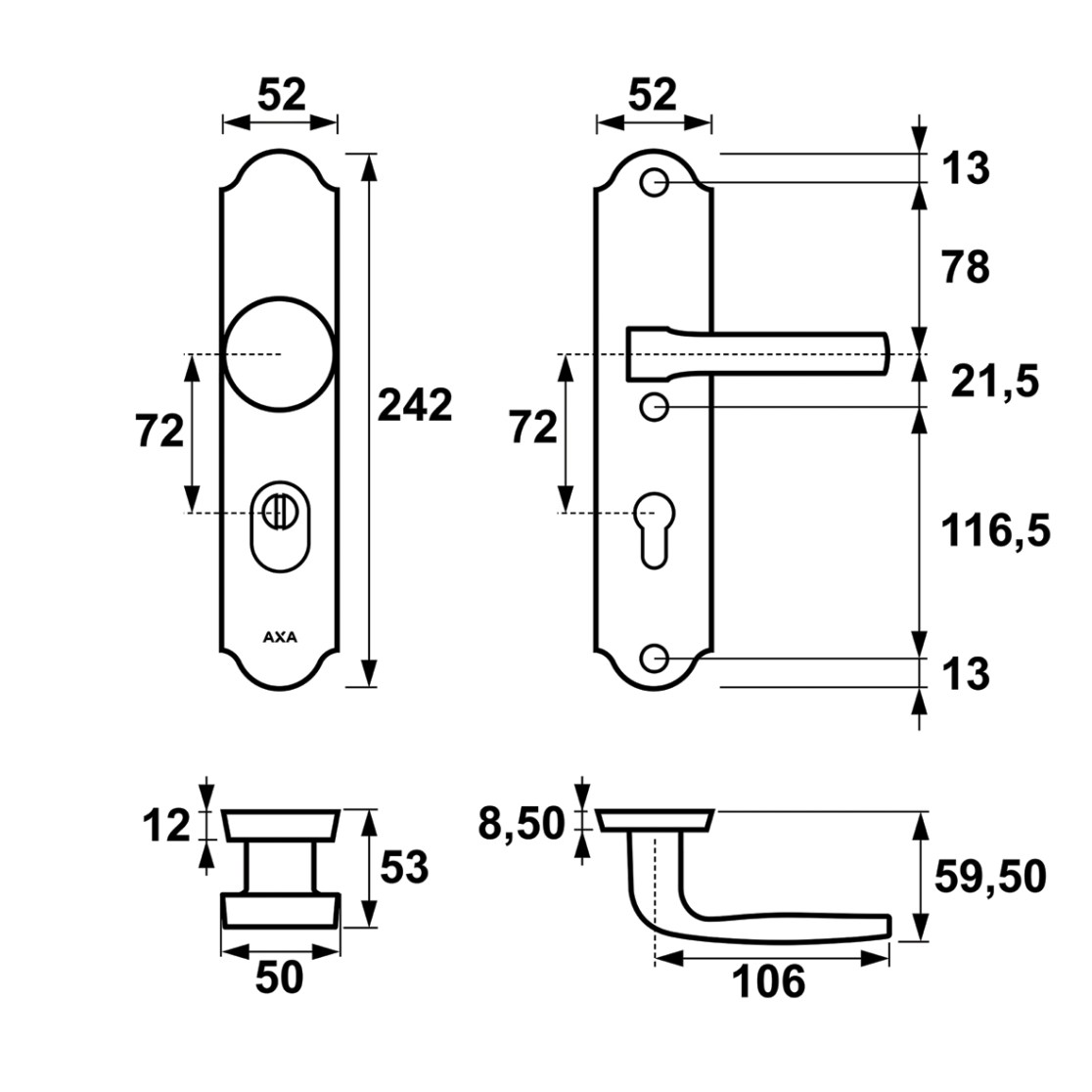

Technical drawings
