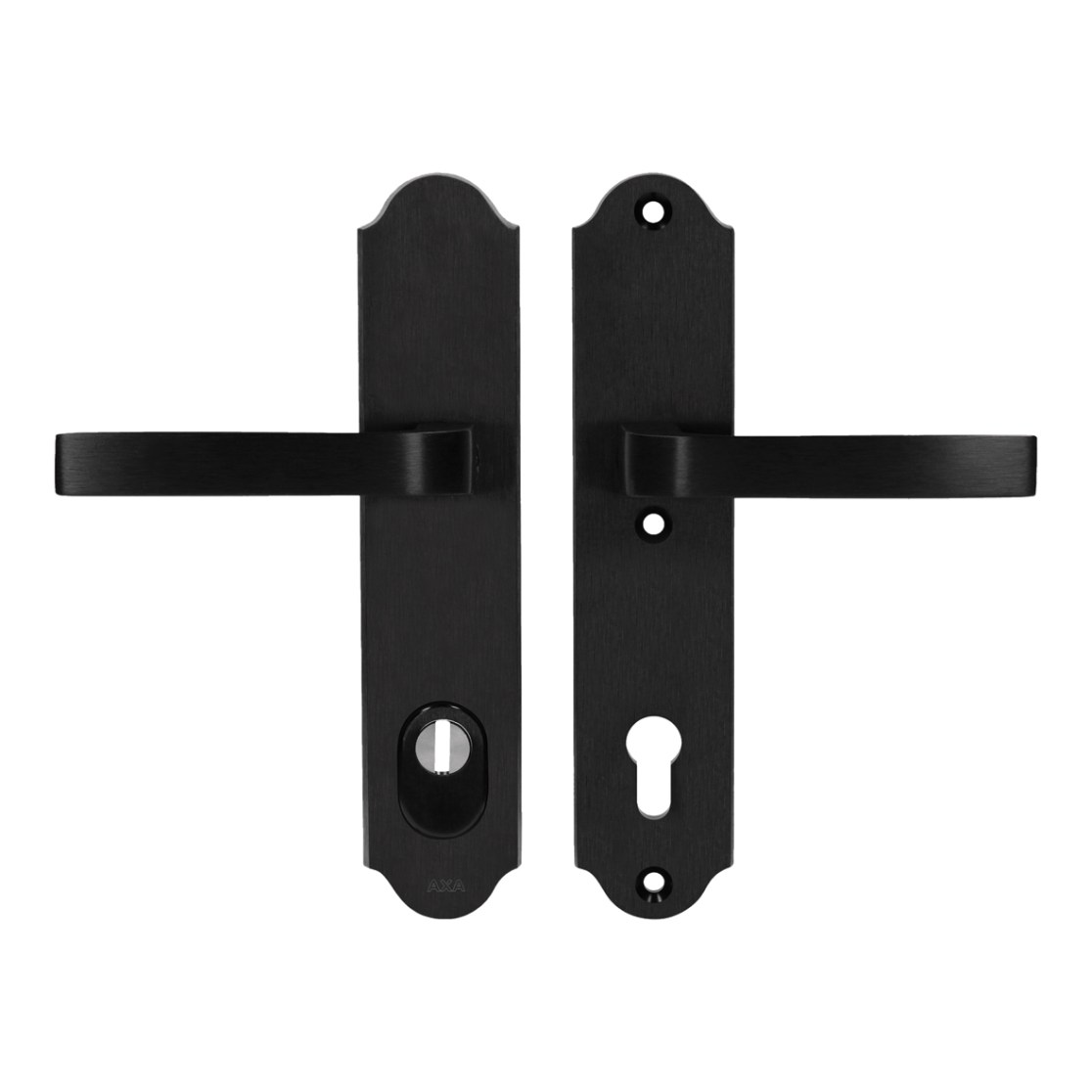

Verona Flex fittings handle+handle PC 92 core protection

AV0XSBF08JC/KXXFXZ
arrow_selector
close
  • Verona Flex is a door fittings dedicated for exterior doors
  • self-aligning core protection
  • finely brushed and less sensitive to scratches
  • available in
  • 2 colours
  • 10 year warranty and support in the plate.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+handle PC 92 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE certificate of conformity NO
Security class (EN 1906) 3
Anti-snap protection YES
Suitable for fire doors YES
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness Security backplate/rosette outside 12 mm
Thickness Security backplate/rosette inside 8,5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Anodised F8, black
Logistical Information
expand_more
Dimensions small package 278 x 136 x 65 mm
Dimensions bulk package 322 x 270 x 154 mm
Pieces per small package 1 piece
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- 8x150 pin: 1 pcs
- M6 x 90 screws: 2 pcs

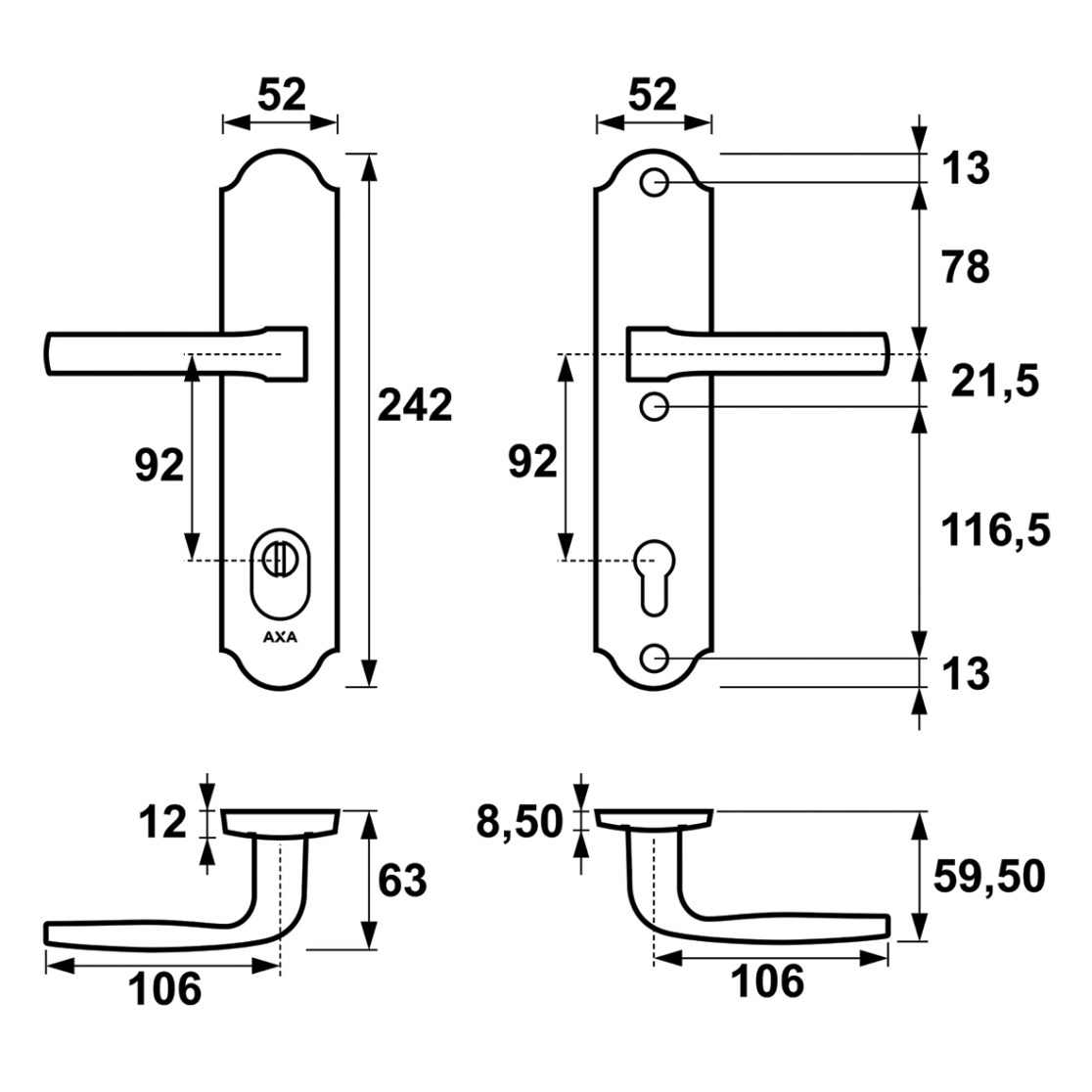

Technical drawings
