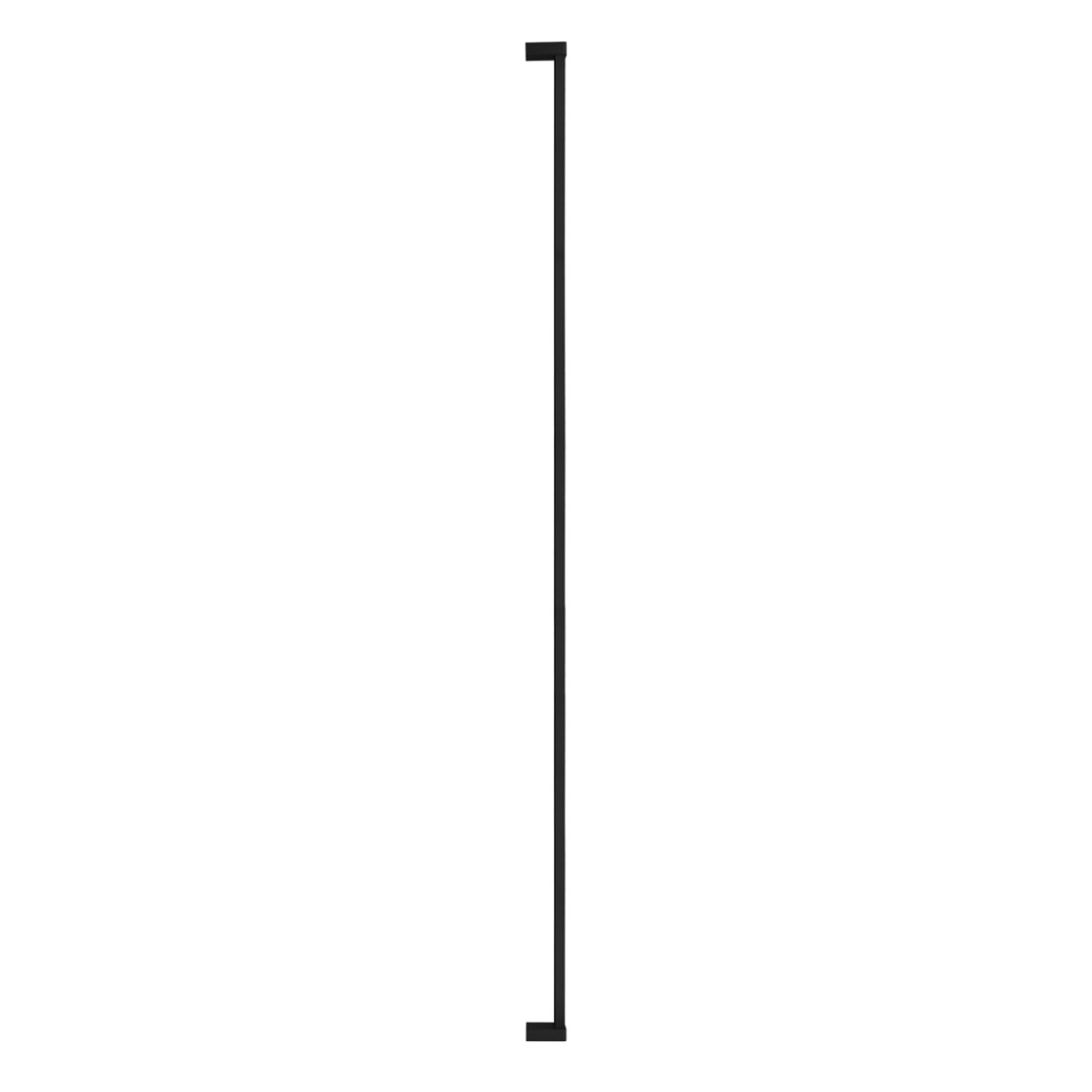

Szanghaj pull-handle one-sided 200 cm self tapping fixing

EOS2XXF00XX/WXXXXX
arrow_selector
close

bronze

Two-metre high pull handle with a unique installation method, which makes it possible shorten it to any desired length and perfectly match the height of the door or glazing.

  • Two-meter high pull handle
  • aluminum

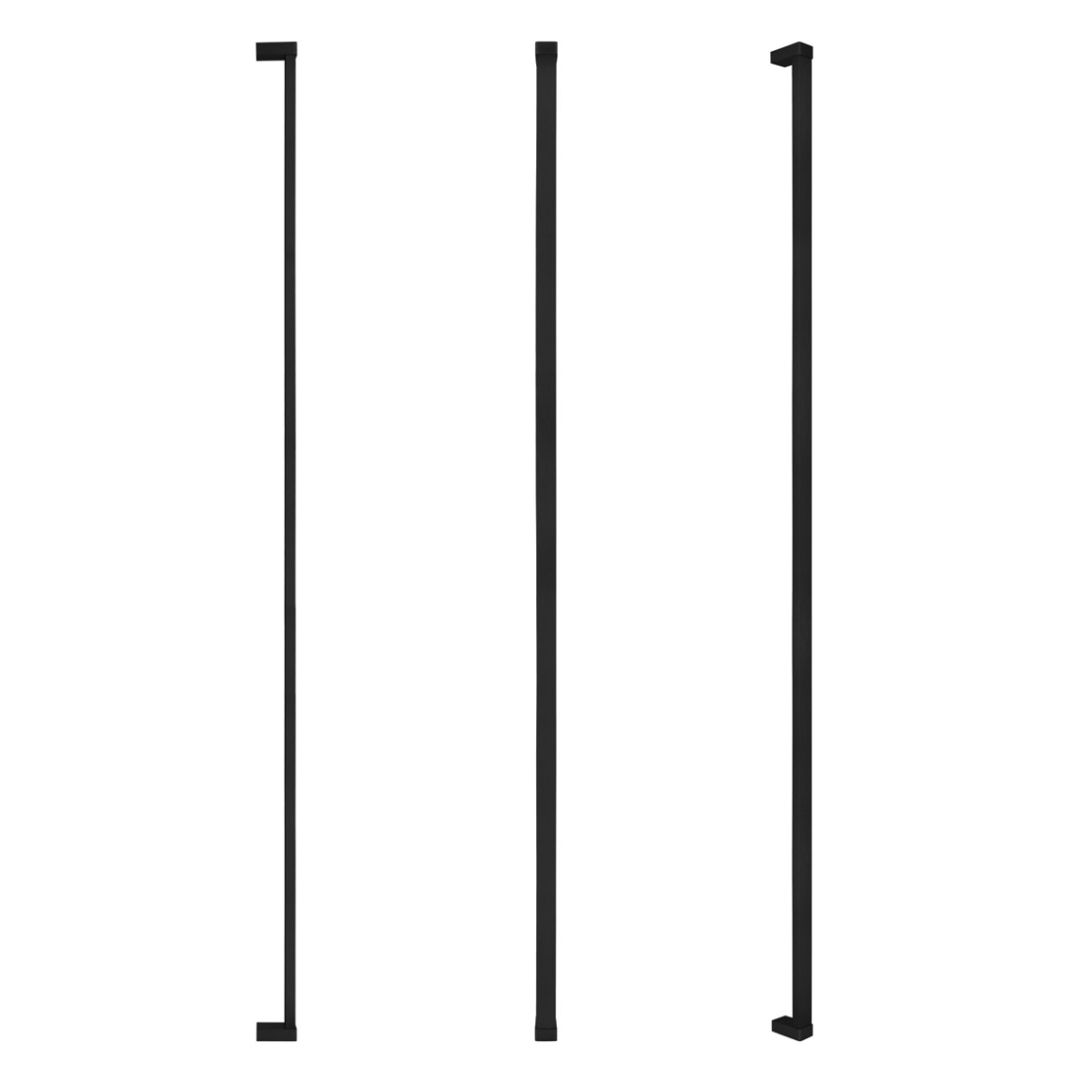

  • adjustable - possibility of shortening or dividing the pull
available in two colors: inox and black available for wooden, pvc, aluminium and steel doors.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type 200 cm self tapping fixing
Safety / Security Information
expand_more
CE Applicable NO
Cradle to Cradle certification bronze
Technical Information
expand_more
Product Length 2000 mm
Product Width 40 mm
Shape right
Heart to heart size 1970 mm
Material Aluminum
Finish Polished anodised F8, black
Electro button No
Logistical Information
expand_more
Dimensions small package 1990 x 135 x 35 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- self-tapping screw: 2 pcs.
- spacer sleeve : 2 pcs.
- Allen wrenches
- set screw: 4 pcs.

Available mounting kits for wood and aluminium doors.

Technical drawings
