Solo Mars Flex Click fittings handle + euro lock rosettes core protection

EVRXDBF01RX/KXWFXC
arrow_selector
close

bronze

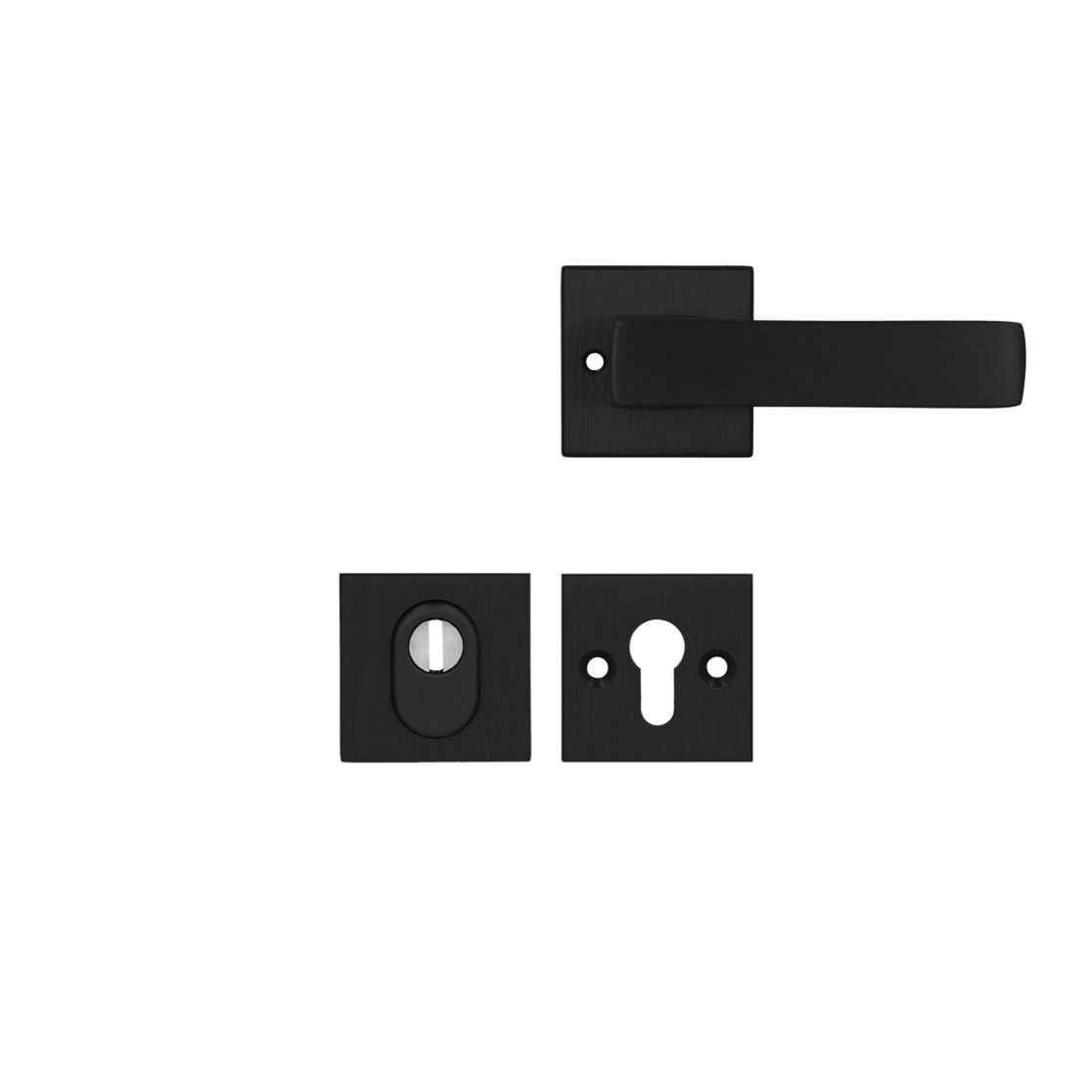

Pull handle dedicated fittings on separate square rosettes with core protection.

  • Set containing external square rosette with cylinder protection and internal handle on square rosette and euro lock rosette
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle + euro lock rosettes core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies NO
Cradle to Cradle certification bronze
Technical Information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape square
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Material Aluminum
Finish Polished anodised F8, black
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 10 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 100 mm bolts: 2 pieces
- M5 x 30 mm bolts: 2 pieces
- 8 x 90 mm spindle: 1 piece

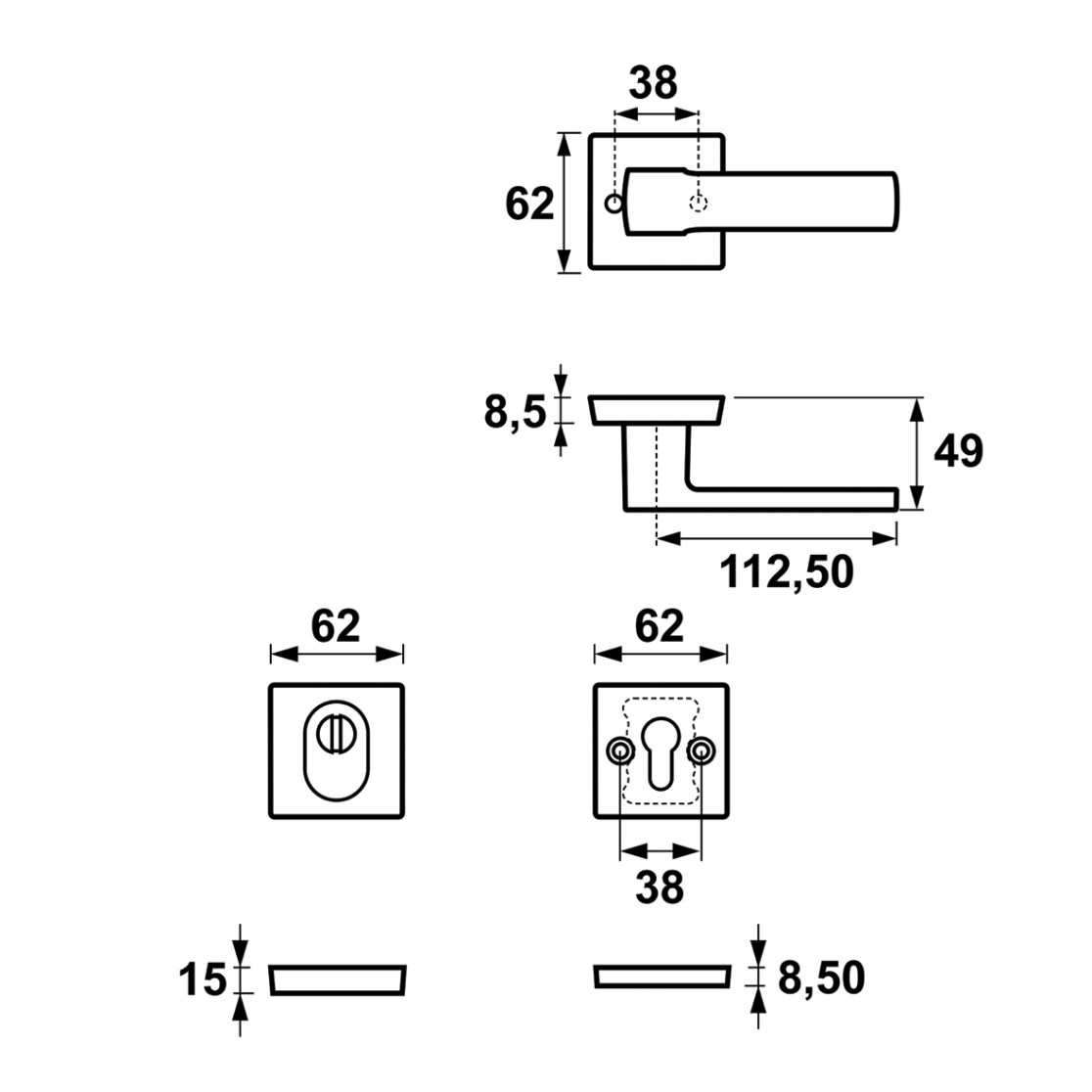

Technical drawings
