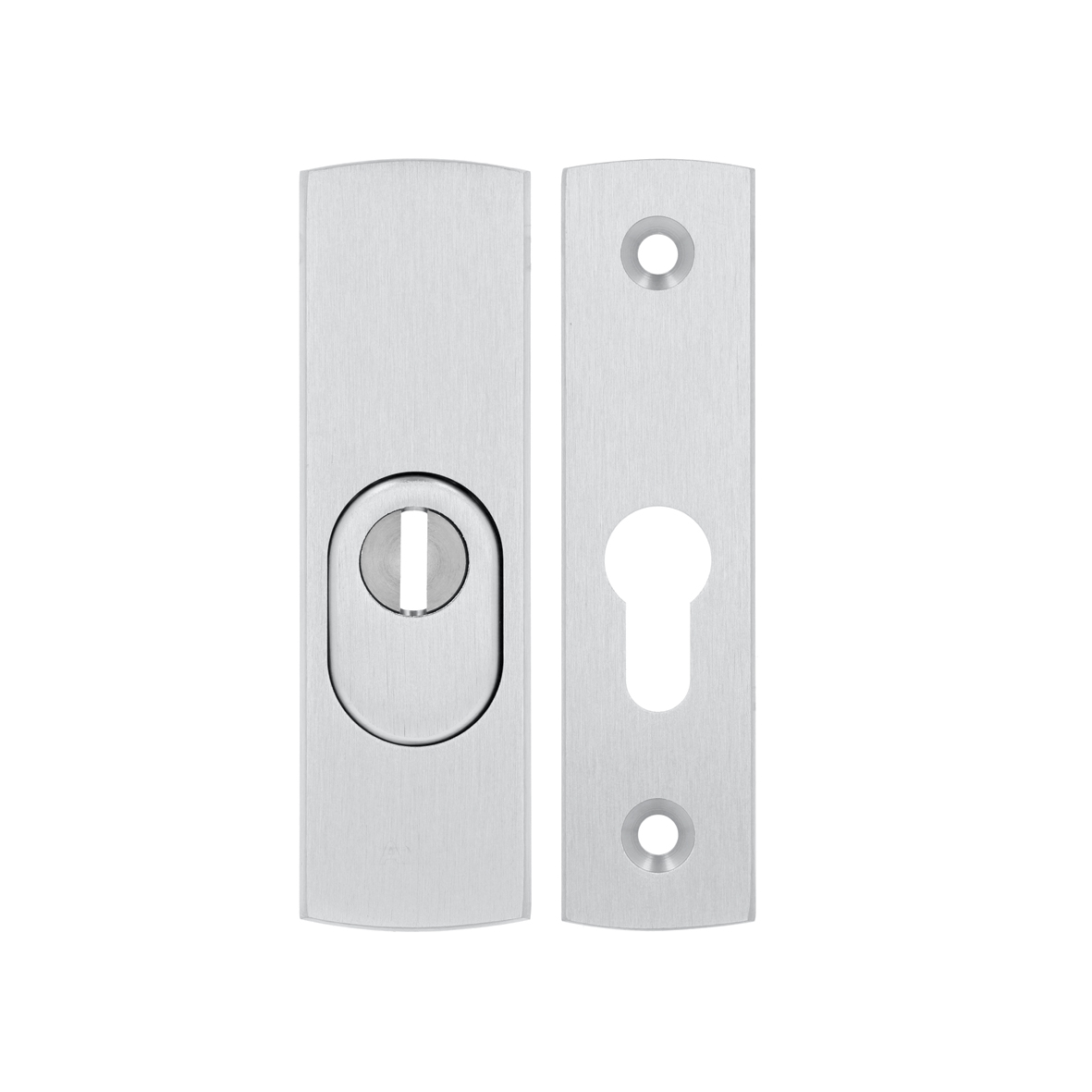

Solid Flex Premium rosettes core protection

AIXXRBA00JX/KXXFXB
arrow_selector
close

bronze
  • sturdy and reliable
  • security class 3
  • with cylinder protection
finely brushed and less sensitive to scratches complete with assembly materials complimentary with Solo Solid Flex Premium Fittings
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type core protection
Safety / Security Information
expand_more
Burglarproof YES
CE certificate of conformity NO
Anti-snap protection YES
Suitable for fire doors YES
Cradle to Cradle sustainability label bronze
Technical Information
expand_more
Product Length 127 mm
Product Width 38 mm
Thickness Security backplate/rosette outside 15 mm
Thickness Security backplate/rosette inside 8,5 mm
Shape narrow curved
Material Aluminum
Finish Polished anodised F1, natural
Logistical Information
expand_more
Dimensions small package 116 x 68 x 62 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min
Recommended Mounting Materials
- M6 x 90 mm mm bolts: 2 pieces

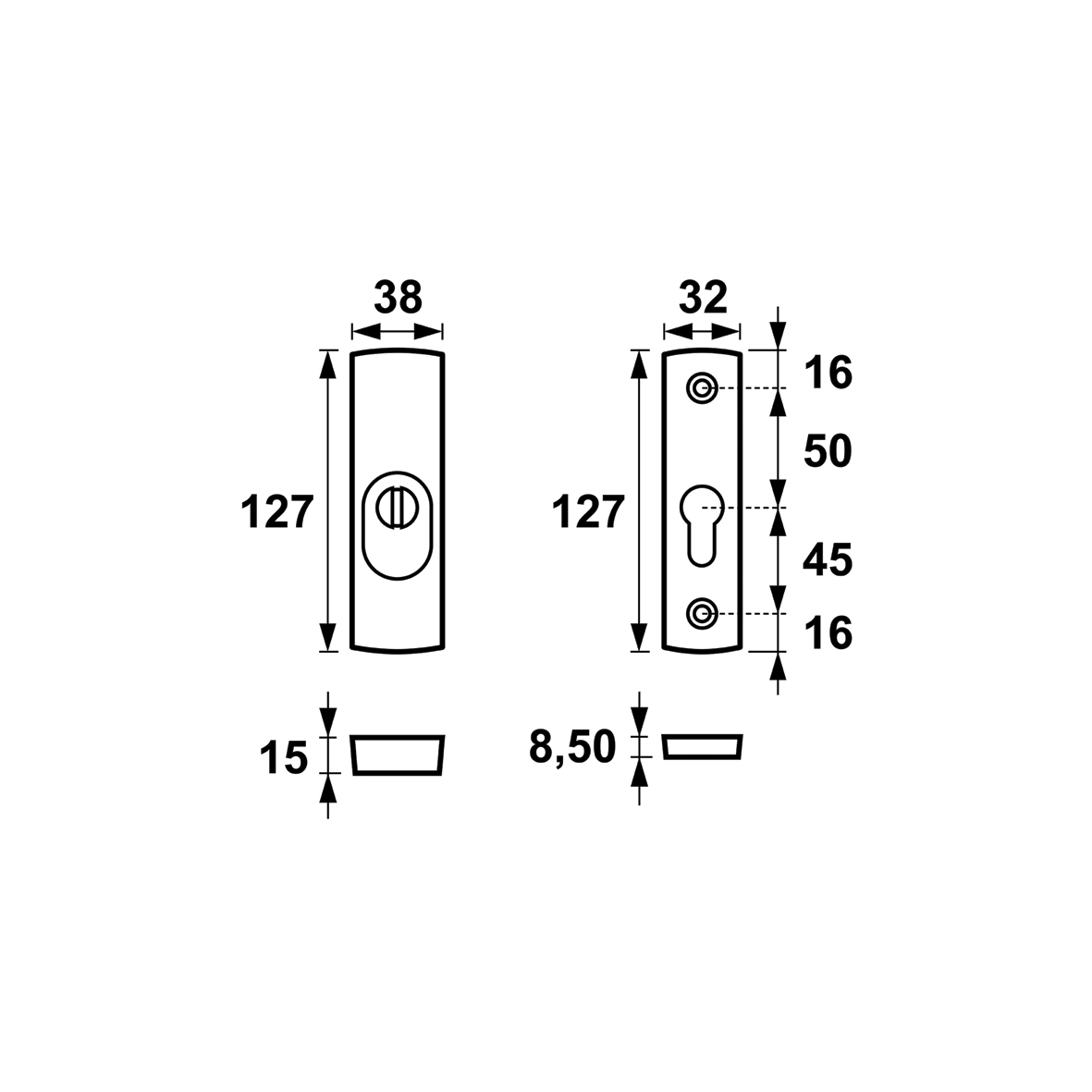

Technical drawings
