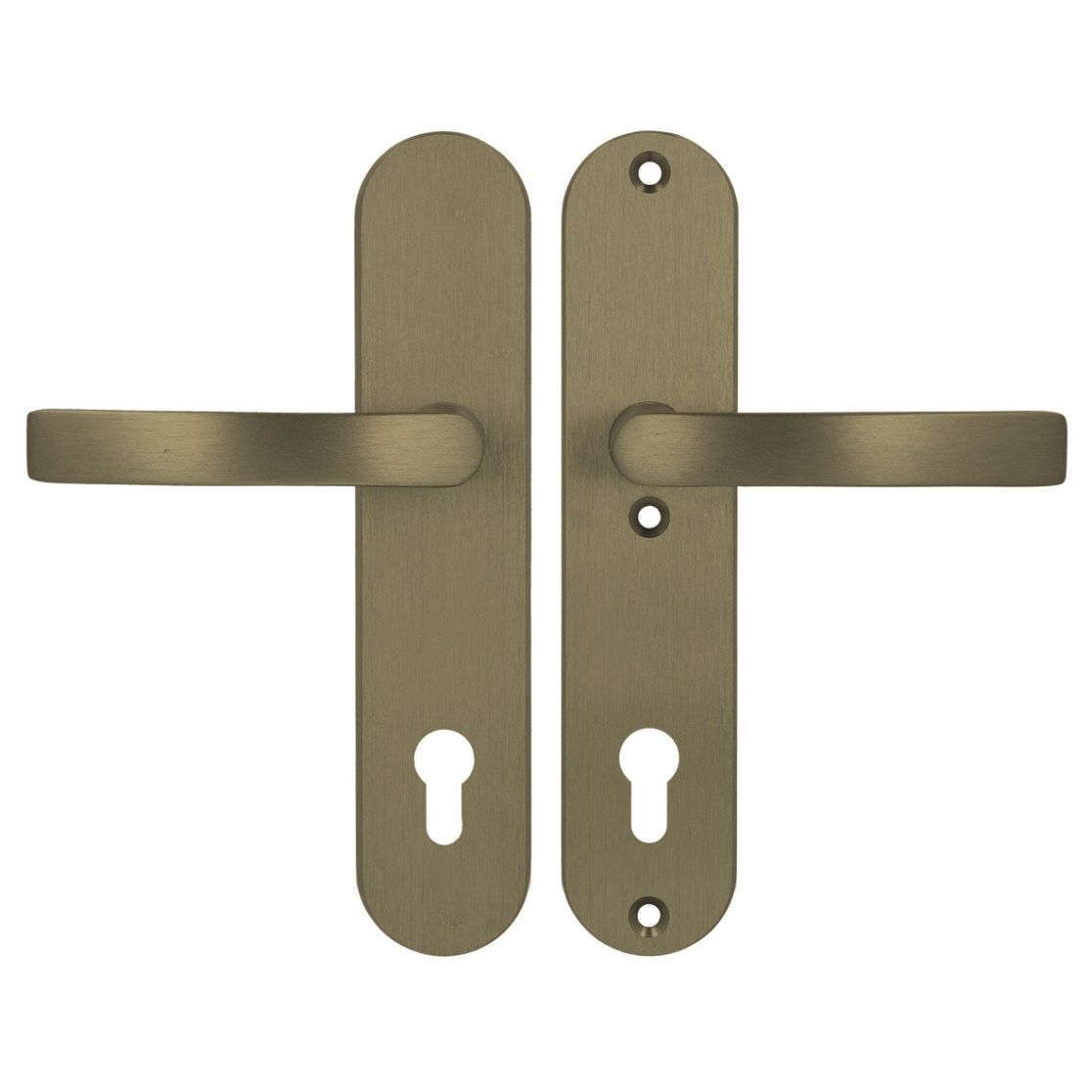

Quebec Standard fittings handle+handle PC 92

MJOXSBD03JC/KXXXXS
arrow_selector

Reliable and stylish oval burglar-resistant security fittings.

  • solid oval trims in brushed finish
  • toprosette and handle-pusher version can be ordered
  • 5-year warranty in standard version
  • without cylinder protection
  • finely brushed and less sensitive to scratches
  • Quebec exterior door fittings can be ordered in four basic colours
  • in black and gold it is only available when ordering min. 50 sets.
Commercial Information
expand_more
Type handle+handle PC 92
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape oval
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces

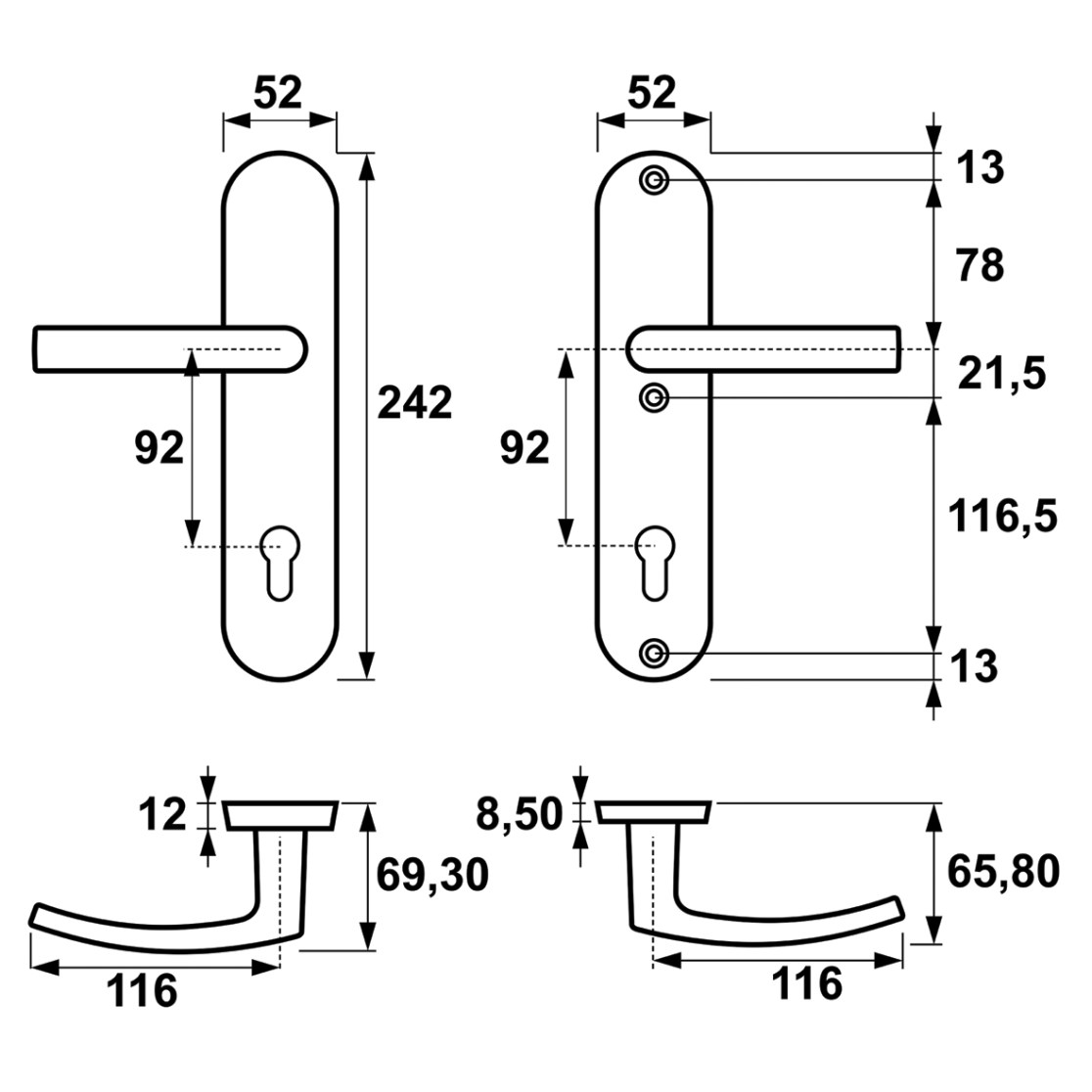

Technical drawings
