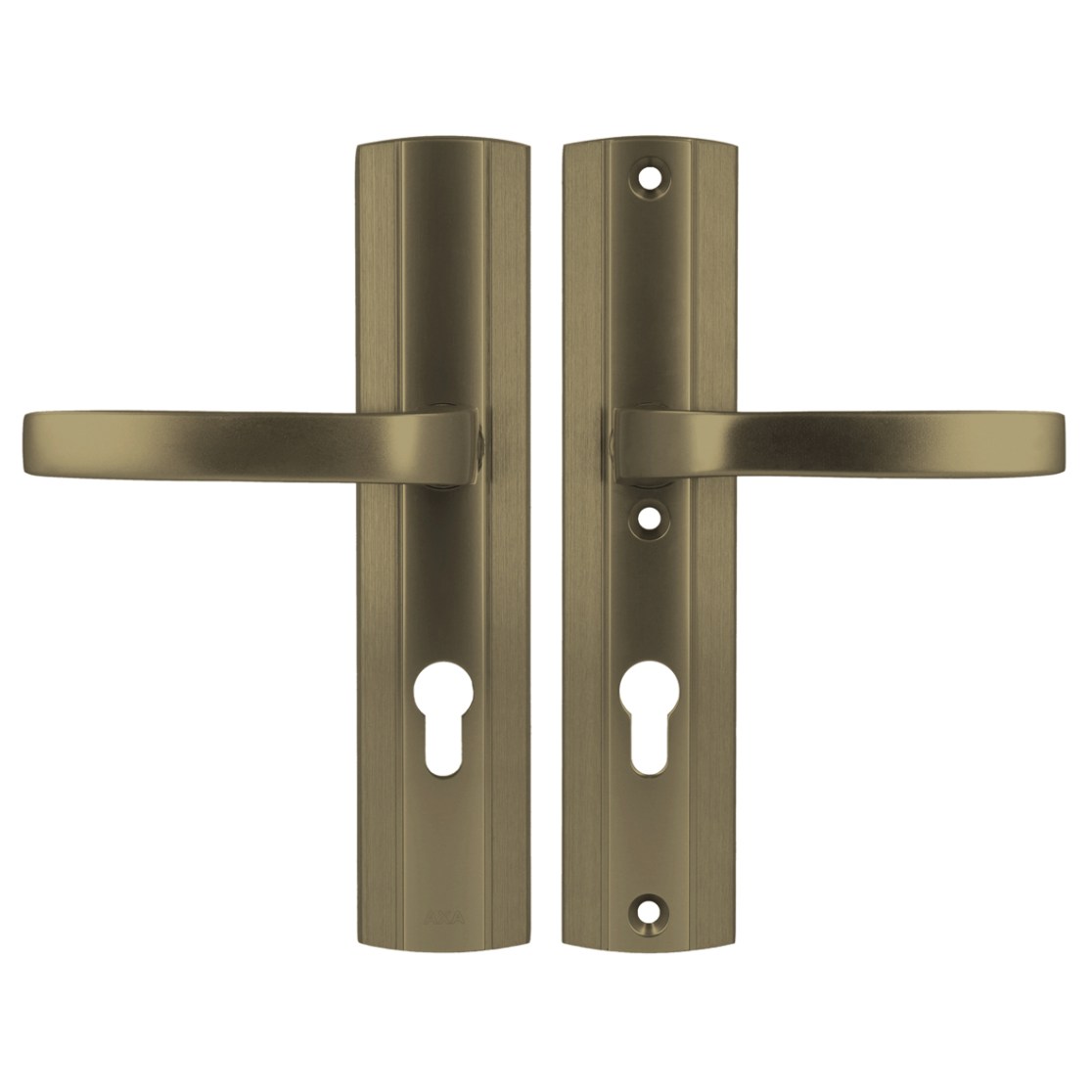

Prestige Standard fittings handle+handle PC 72

ME0XSBD03JA/KXXXXS
arrow_selector
close

Unique two finishes security fitting dedicated for exterior doors.

  • Interesting design of this fittings - half-polished and half-brushed finish
  • flagship product in offer of AXA's external door handles
  • finely brushed and less sensitive to scratches
  • Prestige is available in safety class 3
  • 5-year warranty
  • available in 4 colours, including black and two spacing.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+handle PC 72
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F4, bronze
Finish 2 Anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces

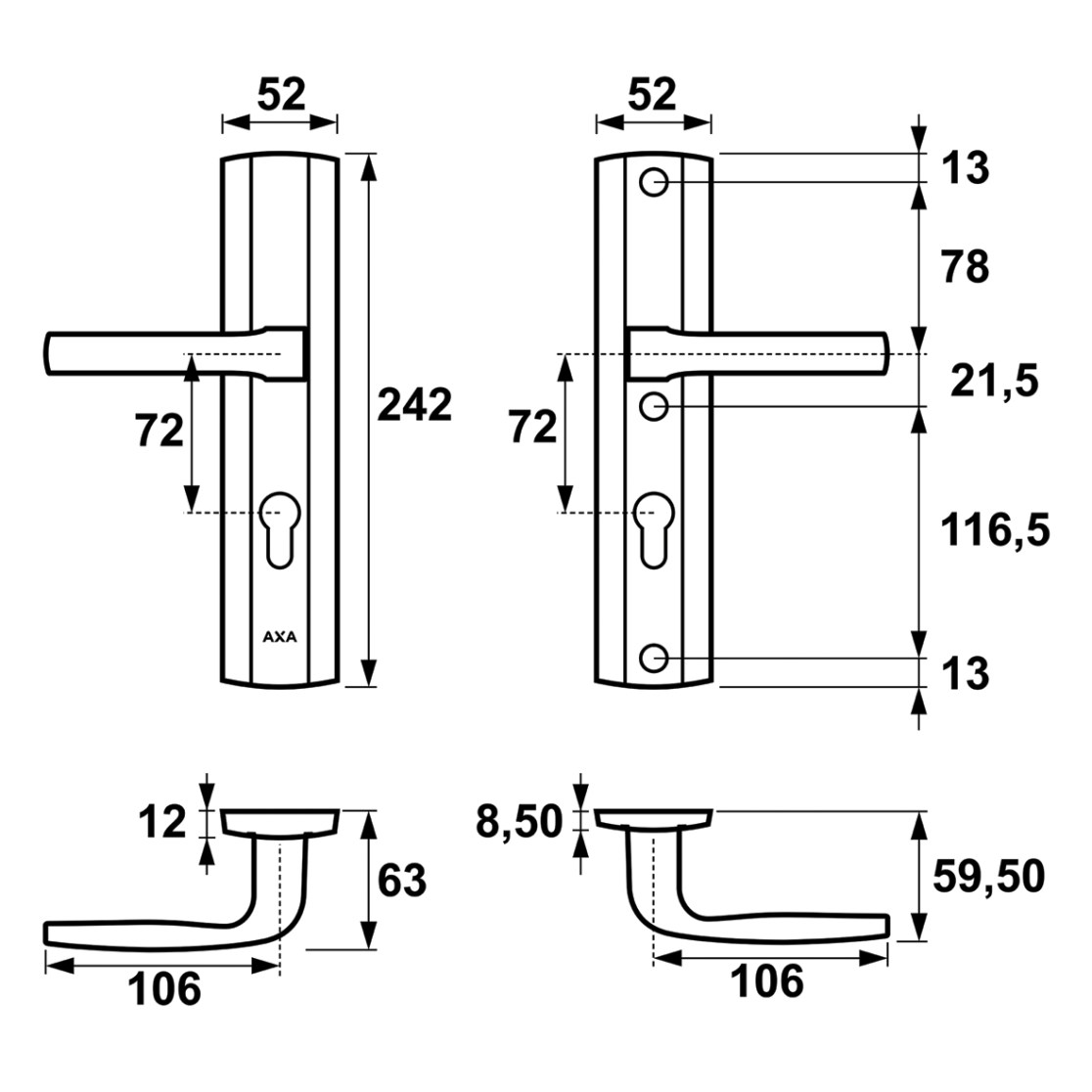

Technical drawings
