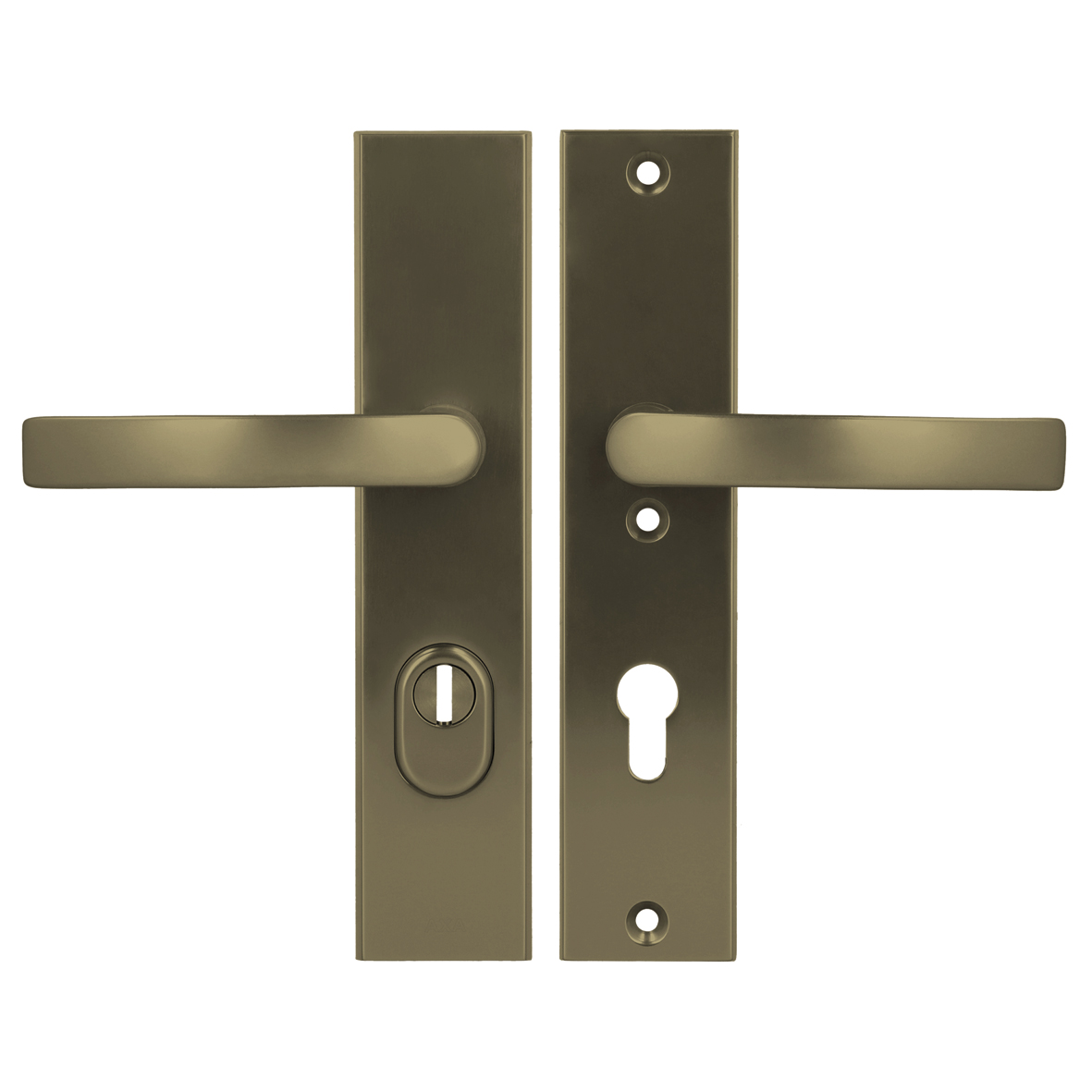

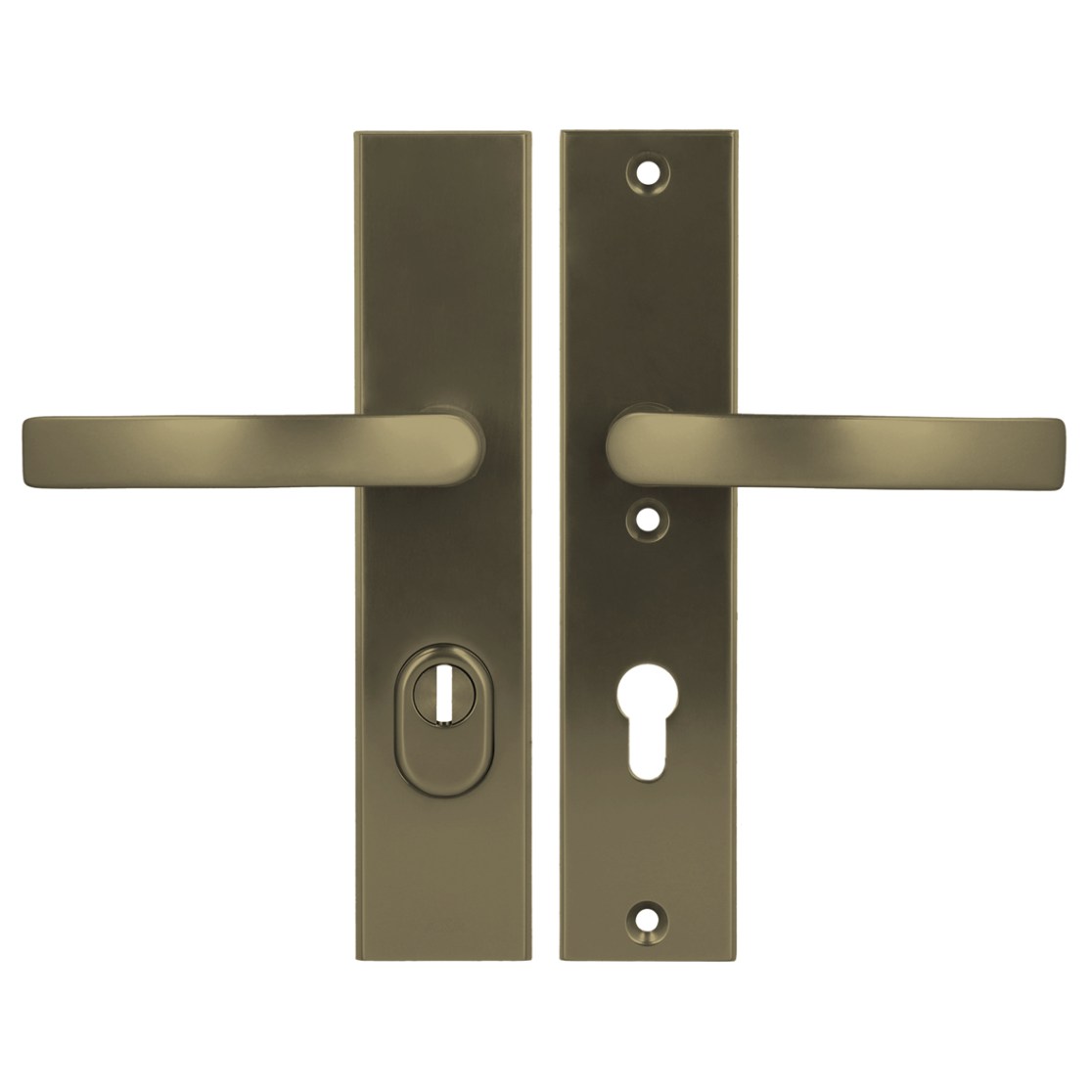

Odin Flex fittings handle+handle PC 72 core protection

ADOXSBP03JA/KXDFXS
arrow_selector
close
  • Odin Flex is a version of the classic Odin handle but with FLEX cylinder protection
  • 10-year warranty
  • fire certificate makes it a reliable and secure fitting for years
  • complementary toprosette is available, as well as a handle-pusher version
  • finely brushed and less sensitive to scratches
  • this door handle for exterior doors can be selected in four basic colours and two spacings.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+handle PC 72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE certificate of conformity NO
Security class (EN 1906) 3
Anti-snap protection YES
Suitable for fire doors NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness Security backplate/rosette outside 12 mm
Thickness Security backplate/rosette inside 8,5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Polished anodised F4, bronze
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 130 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- Rings: 2 pieces

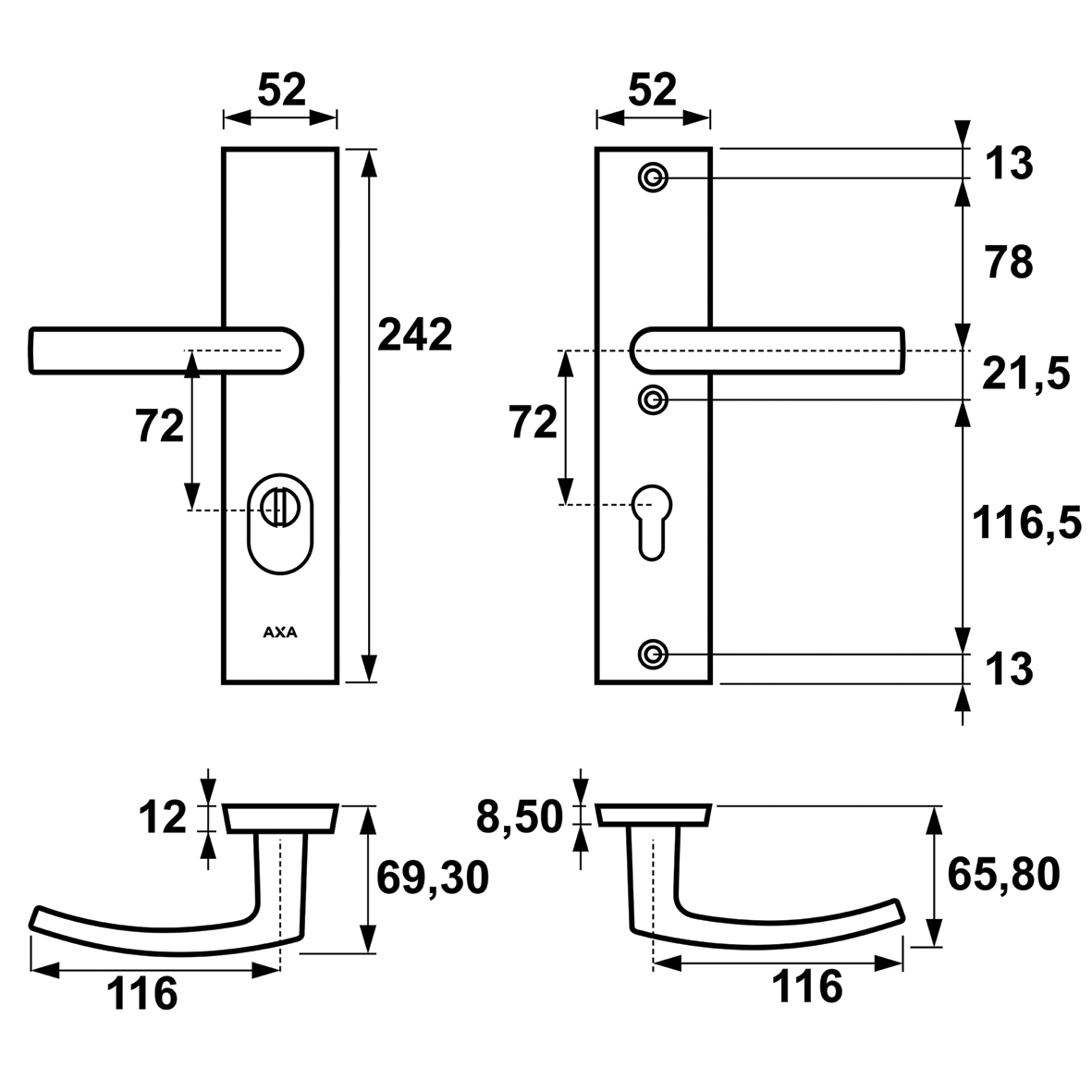

Technical drawings
