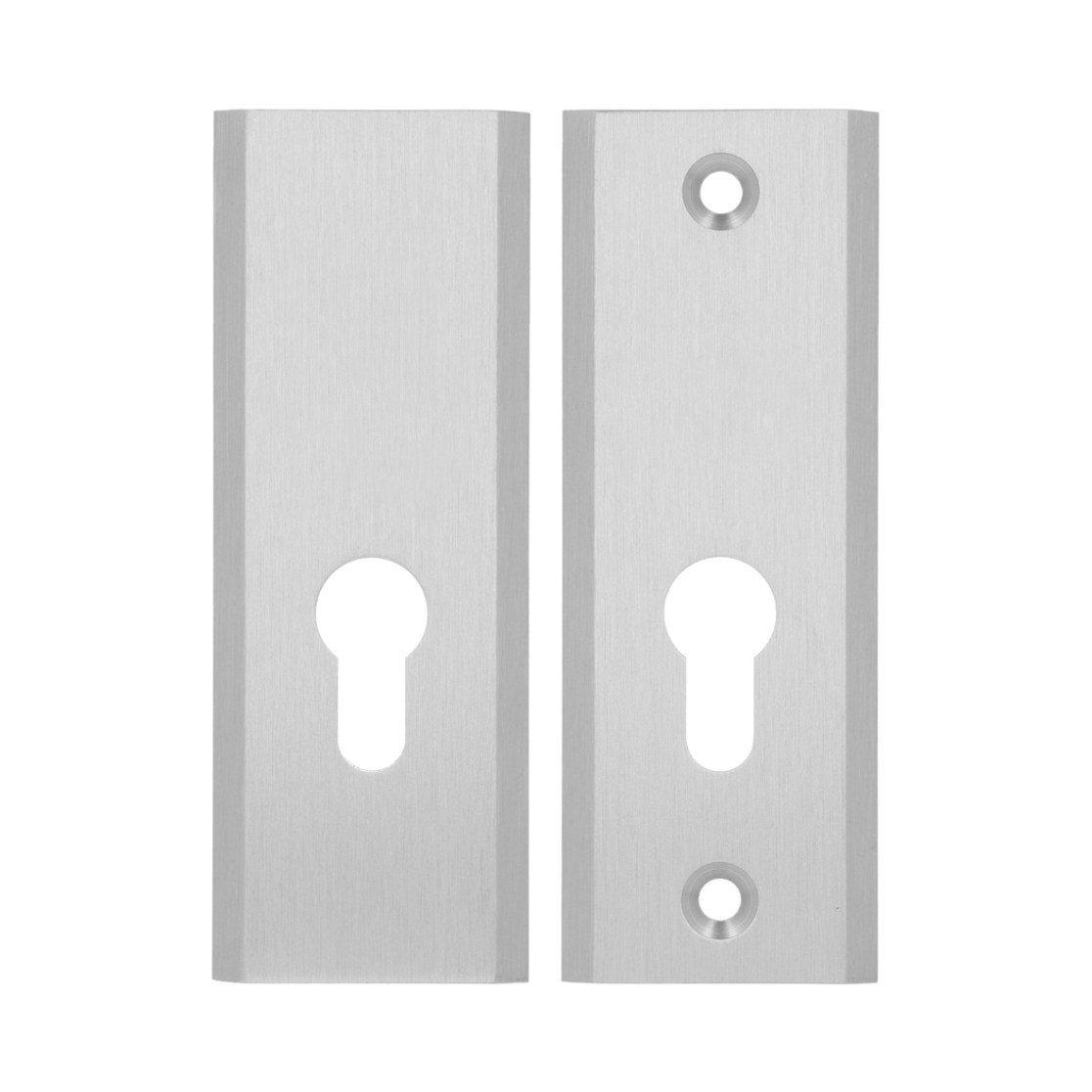

Niagara-Haga rosettes long

AORDRBI00JX/KXXXXB
arrow_selector
close

bronze
sturdy and reliable finely brushed and less sensitive to scratches complete with assembly materials ideal for combining with Niagara-Niagara Plus-Haga-Haga Plus fittings
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type long
Safety / Security Information
expand_more
Burglarproof NO
CE certificate of conformity NO
Anti-snap protection NO
Suitable for fire doors NO
Cradle to Cradle sustainability label bronze
Technical Information
expand_more
Product Length 137 mm
Product Width 50 mm
Thickness Security backplate/rosette outside 8 mm
Thickness Security backplate/rosette inside 8 mm
Shape right
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 116 x 68 x 62 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min
Recommended Mounting Materials
- M6 x 90 mm mm bolts: 2 pieces

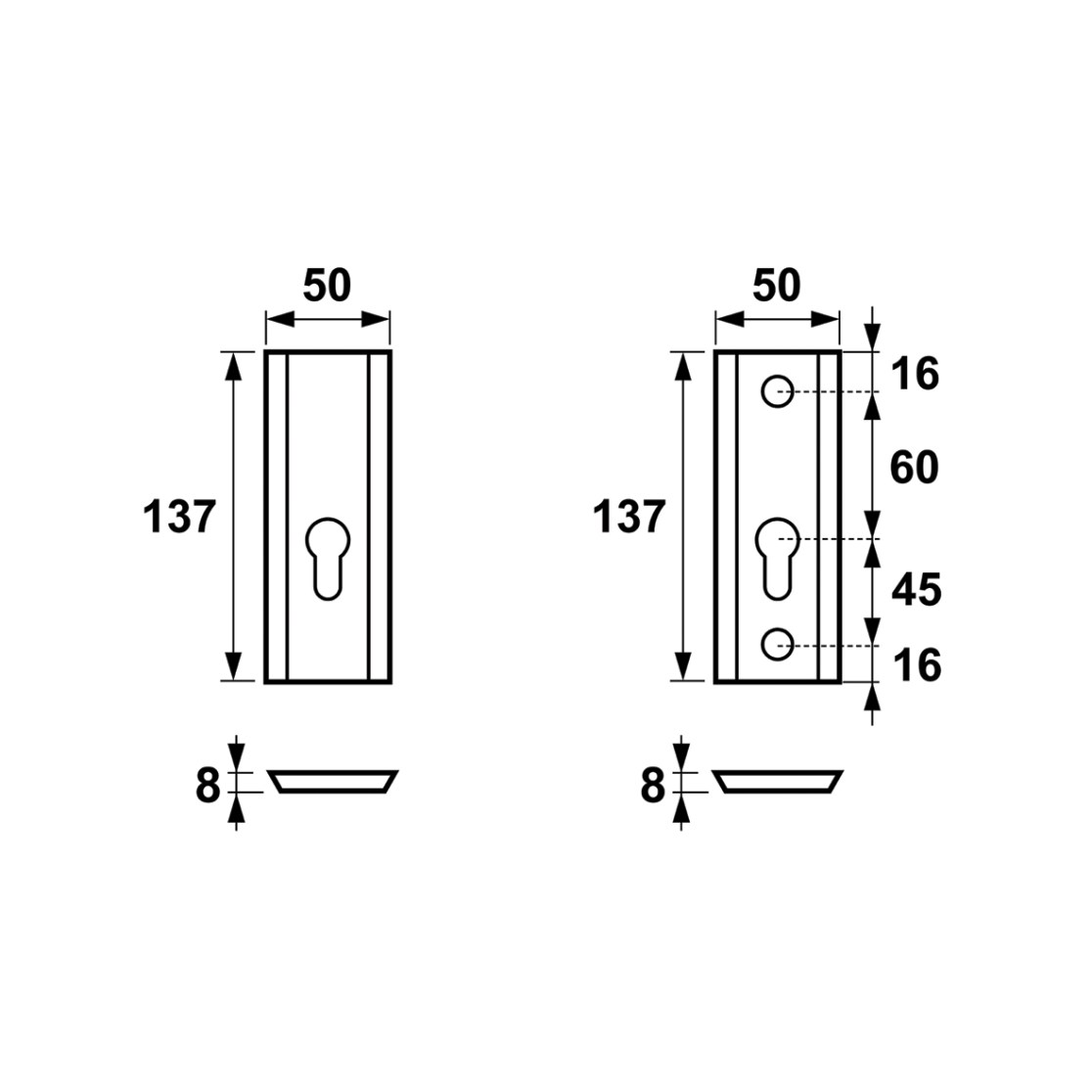

Technical drawings
