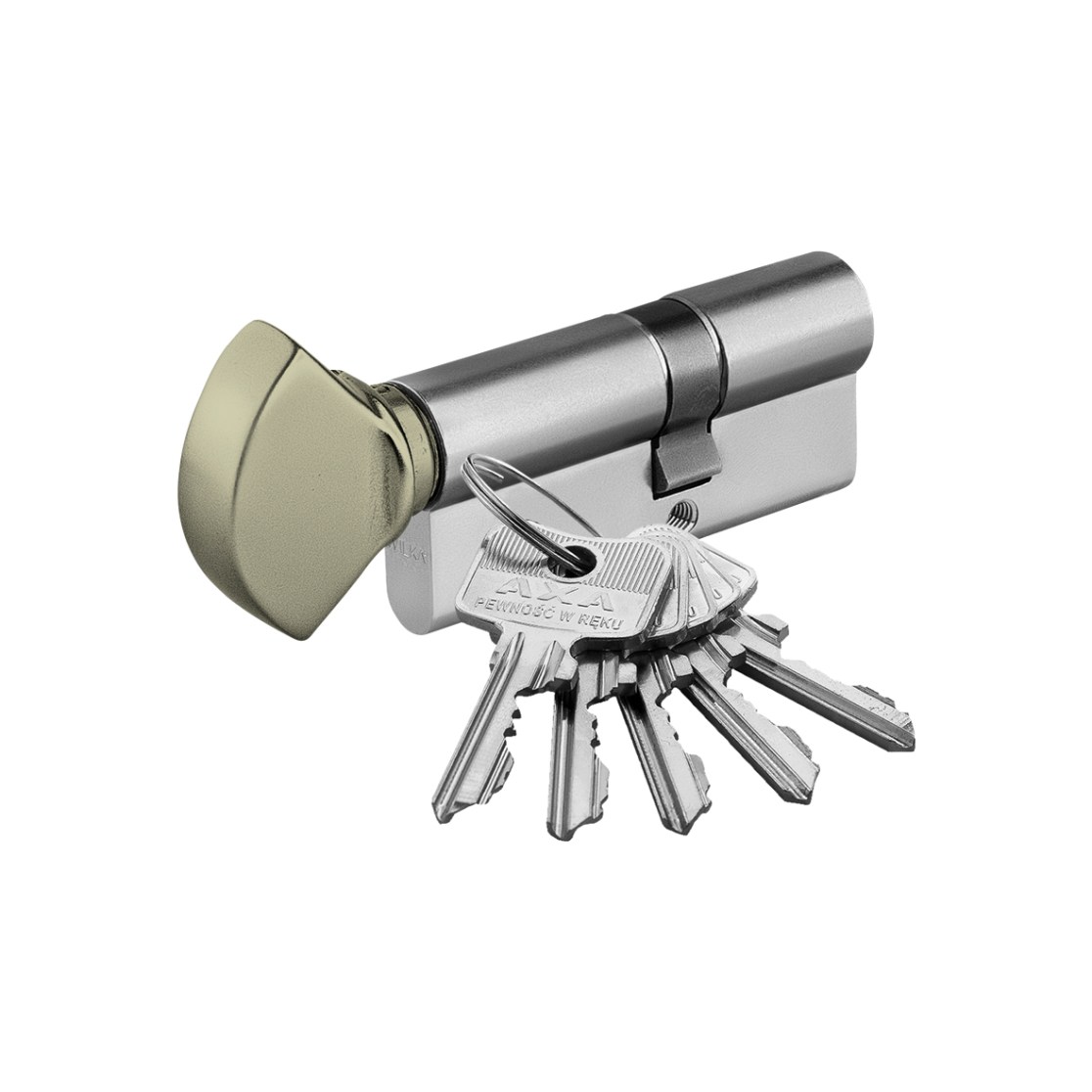

Knob cylinder class C K50-35

AXXXXXT11XC/KXXSXB
arrow_selector

Class C euro thumbturn cylinder for exterior doors.

  • highest degree of burglary protection
  • 6 valve pins
  • special shape of the lock cylinder to ensure the durability of the cylinder
  • nickel-plated hardened cylinder pins
  • brass and steel housing pins
  • protection against insert drilling
  • 5 keys with special tamper-proof profile
making keys based on a security card
  • two colour versions: nickel and brass
  • 'anti-picking' protection
  • highest security level of key code 6
  • highest degree of resistance to aatack 2
  • highest degree of resistance C
  • highest durability 6 - 100.000 cycles
  • approval for use in fire-resistant doors
Commercial Information
expand_more
Type K50-35
Safety / Security Information
expand_more
CE Applicable NO
Anti-snap protection NO
Drilling protection YES
Lock-picking protection YES
Impression burglary technique protection YES
Key duplicate protection YES
Technical Information
expand_more
Product Length 85 mm
Material Brass
Finish Nickel-plated
Keyed alike NO
Logistical Information
expand_more
Dimensions small package 155 x 100 x 40 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece

Technical drawings
