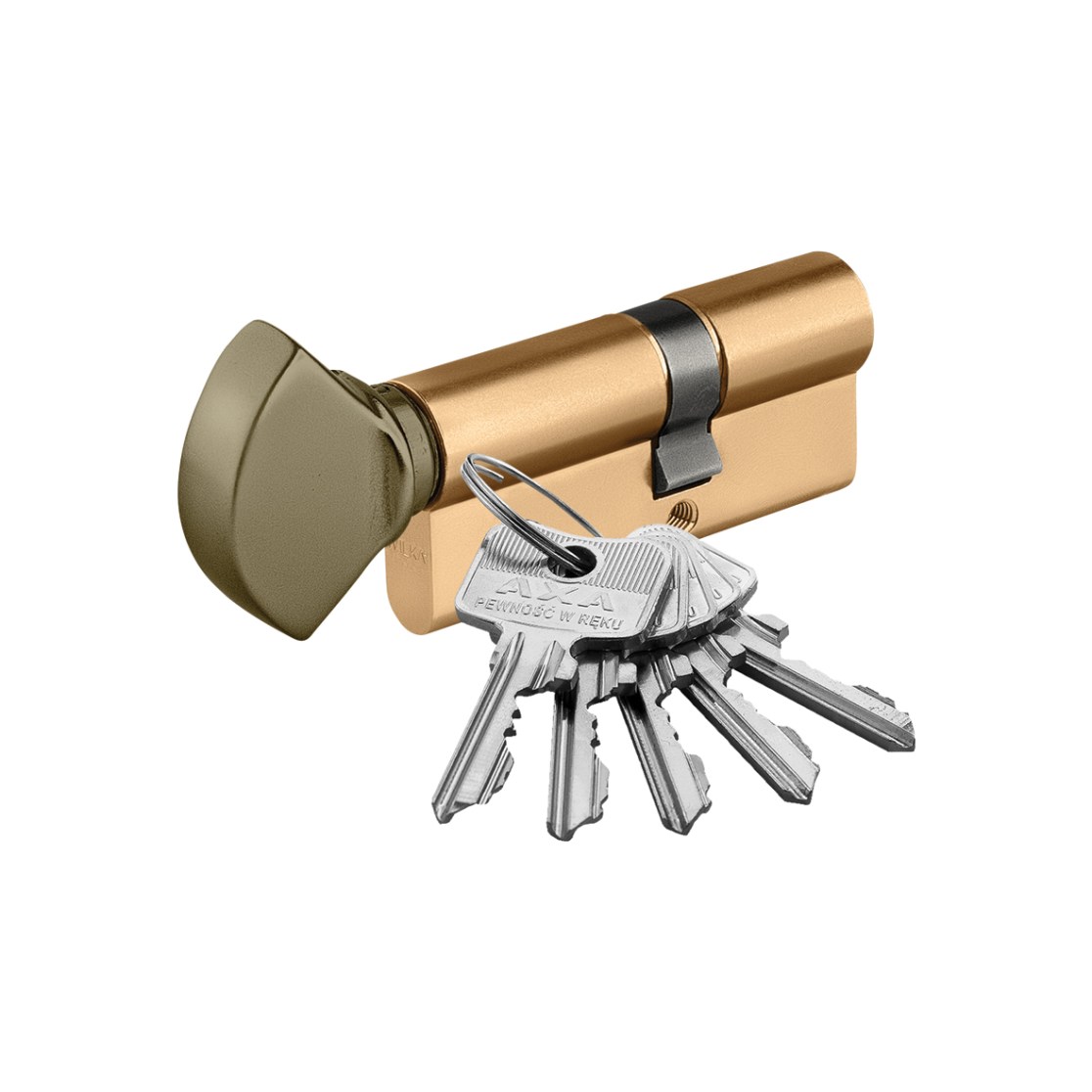

Knob cylinder class C K35-30
AXXXXXS05XC/KXXSXBClass C euro thumbturn cylinder for exterior doors.
- highest degree of burglary protection
- 6 valve pins
- special shape of the lock cylinder to ensure the durability of the cylinder
- nickel-plated hardened cylinder pins
- brass and steel housing pins
- protection against insert drilling
- 5 keys with special tamper-proof profile
making keys based on a security card
- two colour versions: nickel and brass
- 'anti-picking' protection
- highest security level of key code 6
- highest degree of resistance to aatack 2
- highest degree of resistance C
- highest durability 6 - 100.000 cycles
- approval for use in fire-resistant doors
Class C euro thumbturn cylinder for exterior doors.
- highest degree of burglary protection
- 6 valve pins
- special shape of the lock cylinder to ensure the durability of the cylinder
- nickel-plated hardened cylinder pins
- brass and steel housing pins
- protection against insert drilling
- 5 keys with special tamper-proof profile
- two colour versions: nickel and brass
- 'anti-picking' protection
- highest security level of key code 6
- highest degree of resistance to aatack 2
- highest degree of resistance C
- highest durability 6 - 100.000 cycles
- approval for use in fire-resistant doors
Commercial Information
Type K35-30
Safety / Security Information
CE Applicable NO
Anti-snap protection NO
Drilling protection YES
Lock-picking protection YES
Impression burglary technique protection YES
Key duplicate protection YES
Technical Information
Product Length 65 mm
Material Brass
Finish Brushed
Keyed alike NO
Logistical Information
Dimensions small package 155 x 100 x 40 mm
Mounting information
Including Mounting Material YES
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
- M5 x 70 mm bolt: 1 piece
