Knob cylinder class B K30-55

AXXXXXR41XB/KXXSXB
arrow_selector
  • high level of burglary protection
  • 6 valve pins
  • special shape of the lock cylinder to ensure the durability of the cylinder
  • nickel-plated hardened cylinder pins
  • brass and steel housing pins
  • anti drilling protection
  • two colour versions: nickel and brass
  • anti-picking' protection
  • Highest security level of key code 6
  • Highest degree of resistance to attack 2
  • high degree of resistance B
Highest durability 6 - 100.000 cycles Approval for use in fire-resistant doors
Commercial Information
expand_more
Type K30-55
Safety / Security Information
expand_more
CE Applicable NO
Anti-snap protection NO
Drilling protection YES
Lock-picking protection YES
Impression burglary technique protection YES
Key duplicate protection YES
Technical Information
expand_more
Product Length 85 mm
Material Brass
Finish Nickel-plated
Keyed alike NO
Logistical Information
expand_more
Dimensions small package 155 x 100 x 40 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece

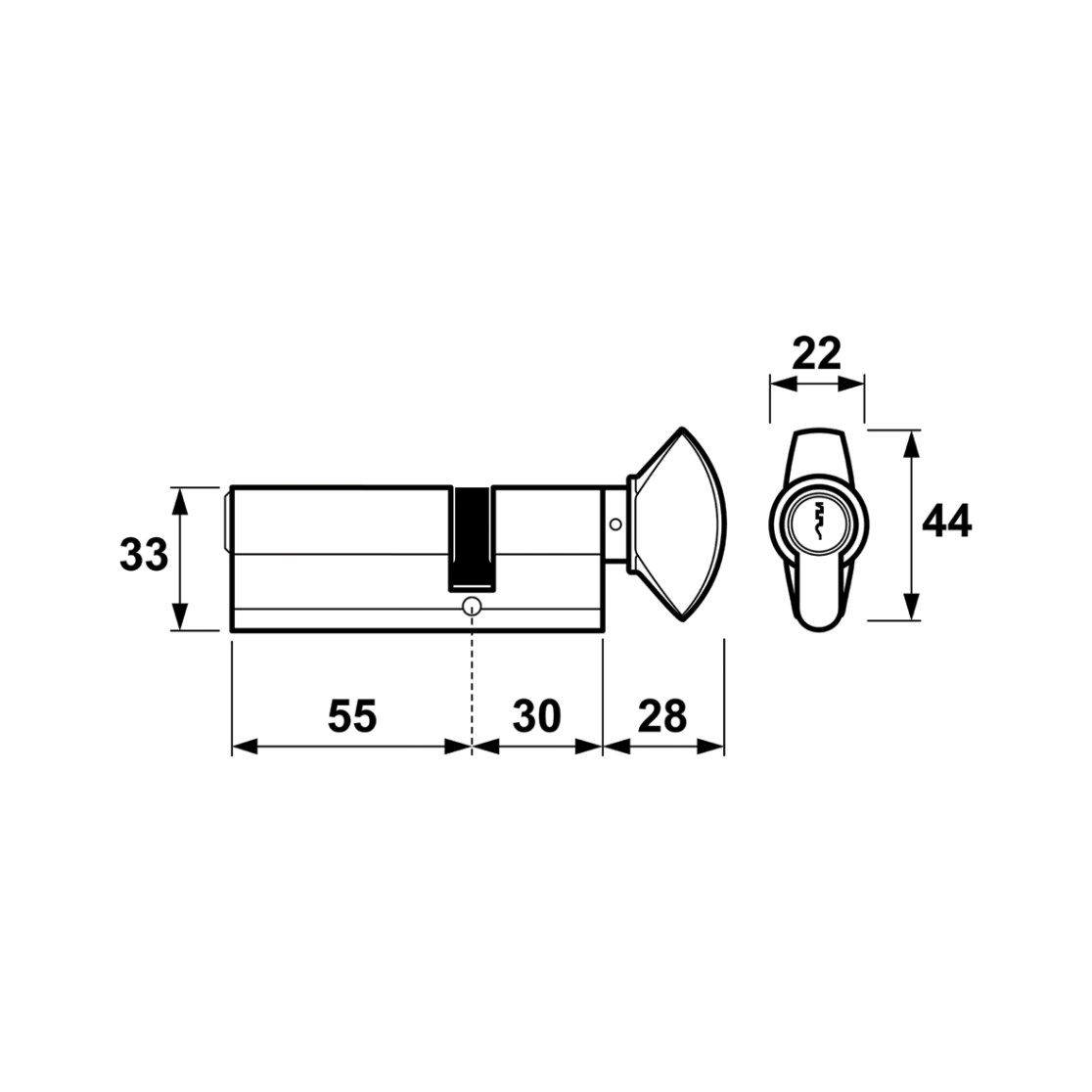

Technical drawings
