Kioto Flex Premium fittings handle+handle PC72 core protection

AD1XSB521JA/KXXFXS
arrow_selector
close
  • Kioto Flex Premium handle is already integrated with the plate
  • significantly thicker and stronger spring located in the handle
  • ideal for intensive use
  • for both left and right-opening doors
  • easy installation with two screws makes the Premium Series very popular with customers and installers
  • handle-handle or handle-pusher is available in sets
  • complimentary rosette can be purchased
  • this model has a 10 year warranty.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+handle PC72 core protection
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection YES
Fire door assemblies YES
Cradle to Cradle certification bronze
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 72 mm
Material Aluminum
Finish Anthracite lacquered
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Dimensions bulk package 330 x 280 x 205 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- M6 x 90 mm bolts: 2 pcs
- 8 x 150 mm spindle: 1 pc
- 8 x 170 mm spindle: 1 pc
- isolating ring: 2 pcs.

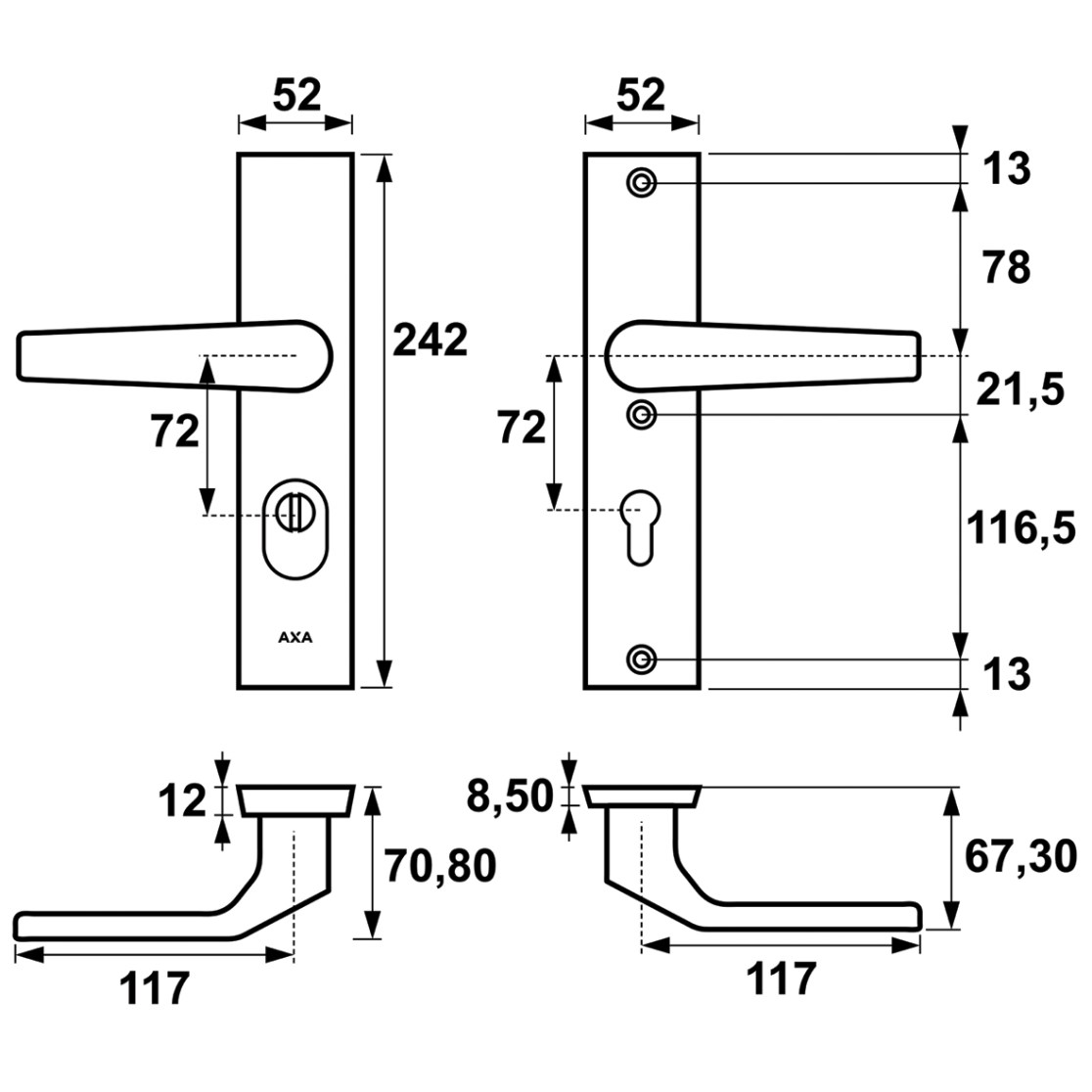

Technical drawings
