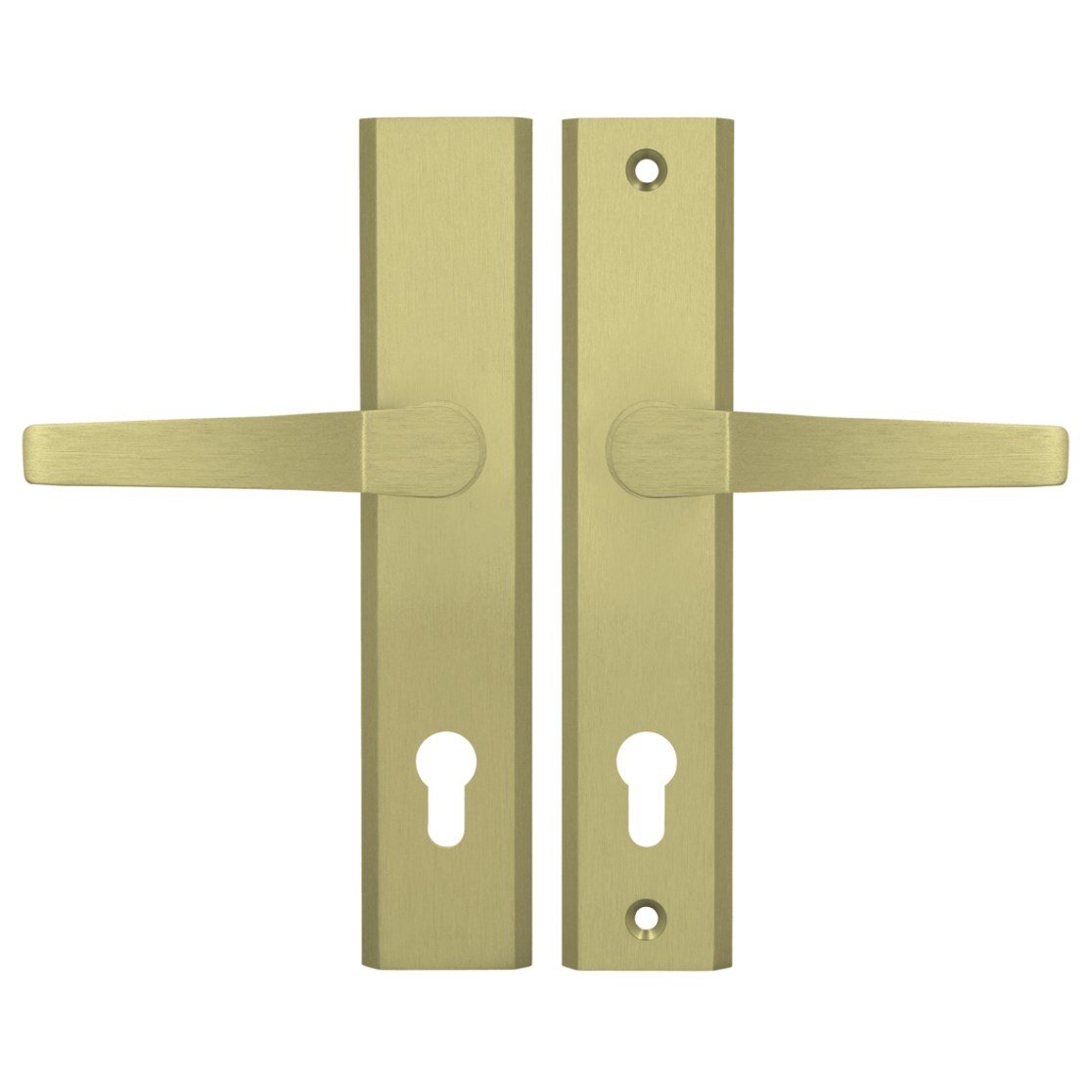

Fast Premium handle+handle PC 92

AO1XSBC08JC/KXPXXS
arrow_selector

Popular and reliable security fittings, dedicated for exterior doors, in Premium Series with integrated handle.

  • Fittings of Premium series - handle is already integrated with the plate
  • significantly thicker and stronger spring located in the handle
  • ideal for intensive use
  • narrow thick security plate
  • easy installation with two screws makes the Premium Series very popular with customers and installers
  • handle-handle or handle-pusher is available in sets
  • complimentaryrosette can be purchased
  • 2 year warranty
Commercial Information
expand_more
Type handle+handle PC 92
Safety / Security Information
expand_more
Burglarproof NO
CE Applicable NO
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 246 mm
Product Width 50 mm
Thickness outside 8 mm
Thickness inside 8 mm
Direction of rotation outward and inward-opening
Shape right
Handle assembly handle integrated in backplate/rosettes
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F3, gold
Logistical Information
expand_more
Dimensions small package 275 x 160 x 97 mm
Weight small package 1.295 kg
Weight bulk package 5.5 kg
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min
Recommended Mounting Materials
- M6 x 90 mm bolts: 2 pcs.
- 8 x 150 mm spindle: 1 pc.
- 8 x 170 mm spindle: 1 pc.
- isolating ring: 2 pcs.

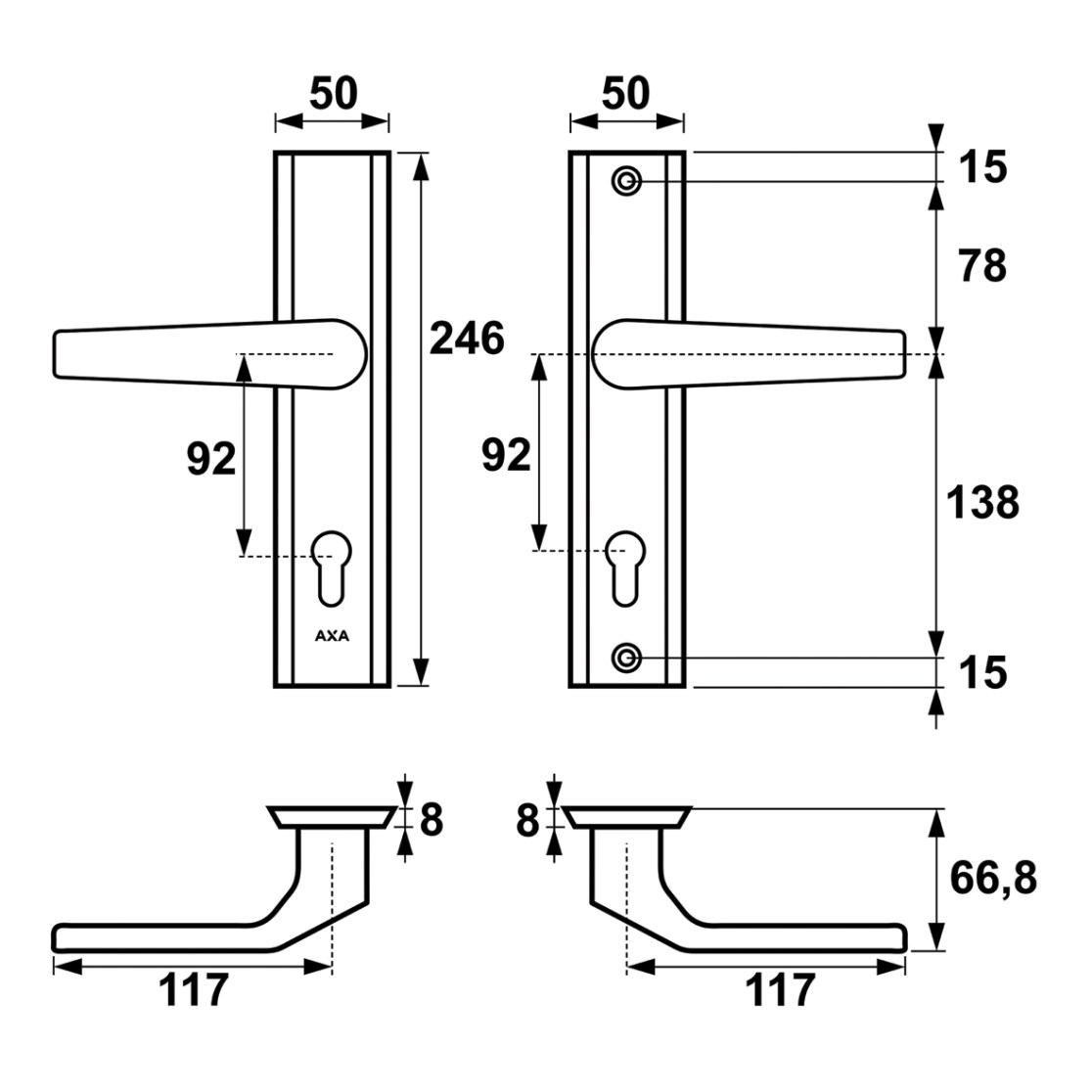

Technical drawings
