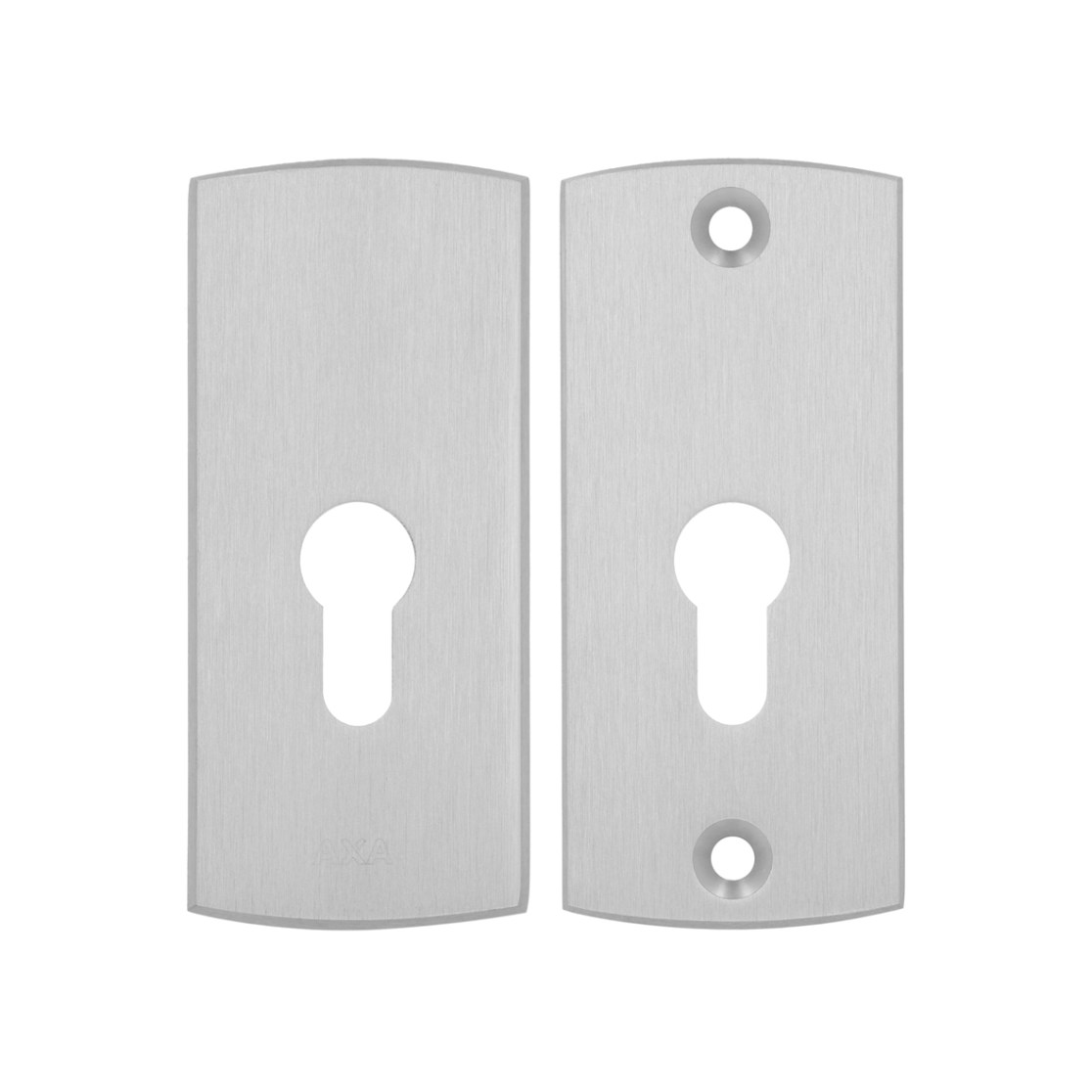

Diva Standard rosettes

AERXRBI00JX/KXXSXB
arrow_selector
close

bronze
  • sturdy and reliable
  • security class 3
  • finely brushed and less sensitive to scratches
  • complete with assembly materials
  • complimentary with Solo Diva fittings
Specifications Downloads Technical drawings
Safety / Security Information
expand_more
Burglarproof YES
CE certificate of conformity NO
Anti-snap protection NO
Suitable for fire doors NO
Cradle to Cradle sustainability label bronze
Technical Information
expand_more
Product Length 117 mm
Product Width 52 mm
Thickness Security backplate/rosette outside 12 mm
Thickness Security backplate/rosette inside 8,5 mm
Shape curved
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 116 x 68 x 62 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 2 min
Recommended Mounting Materials
- M6 x 90 mm mm bolts: 2 pieces

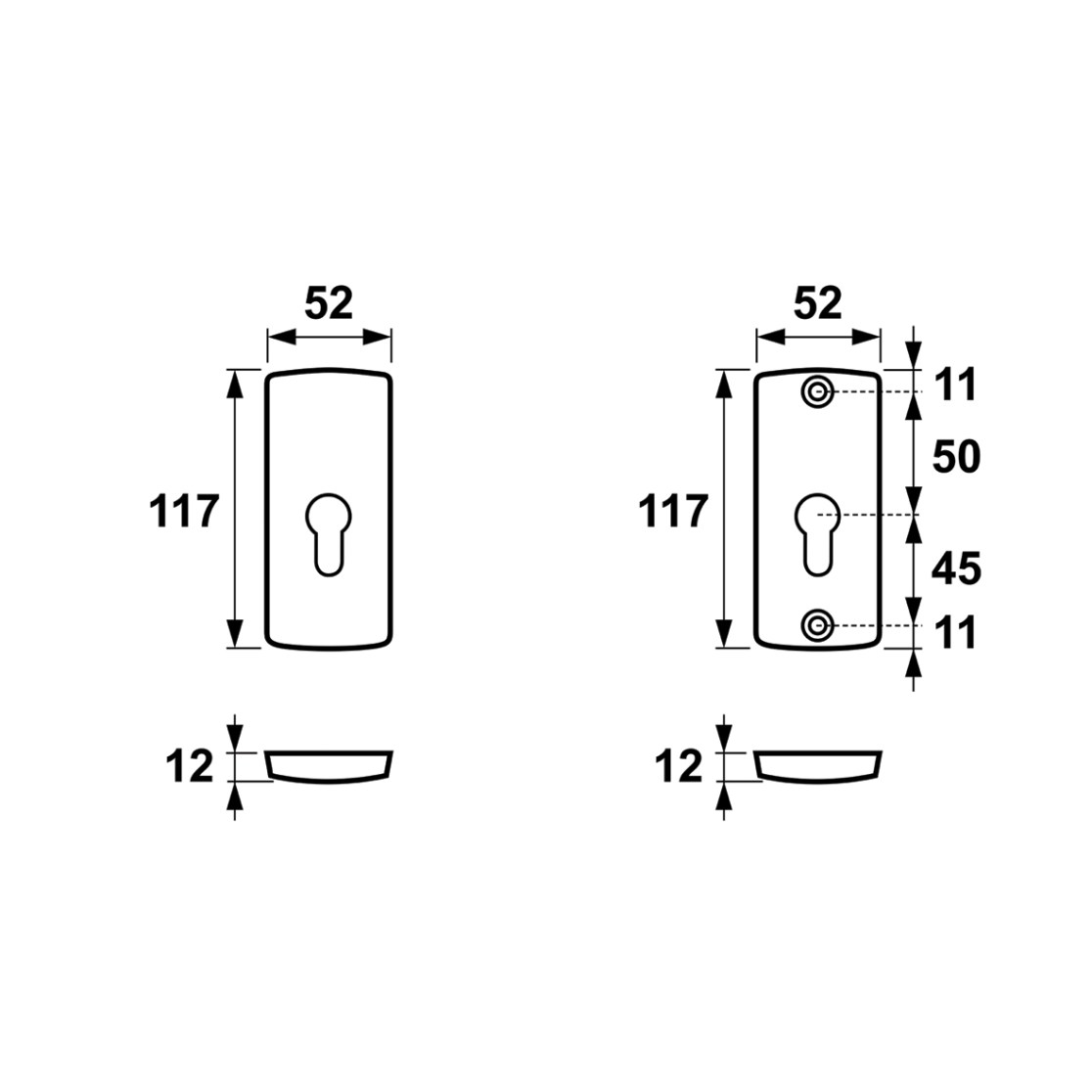

Technical drawings
