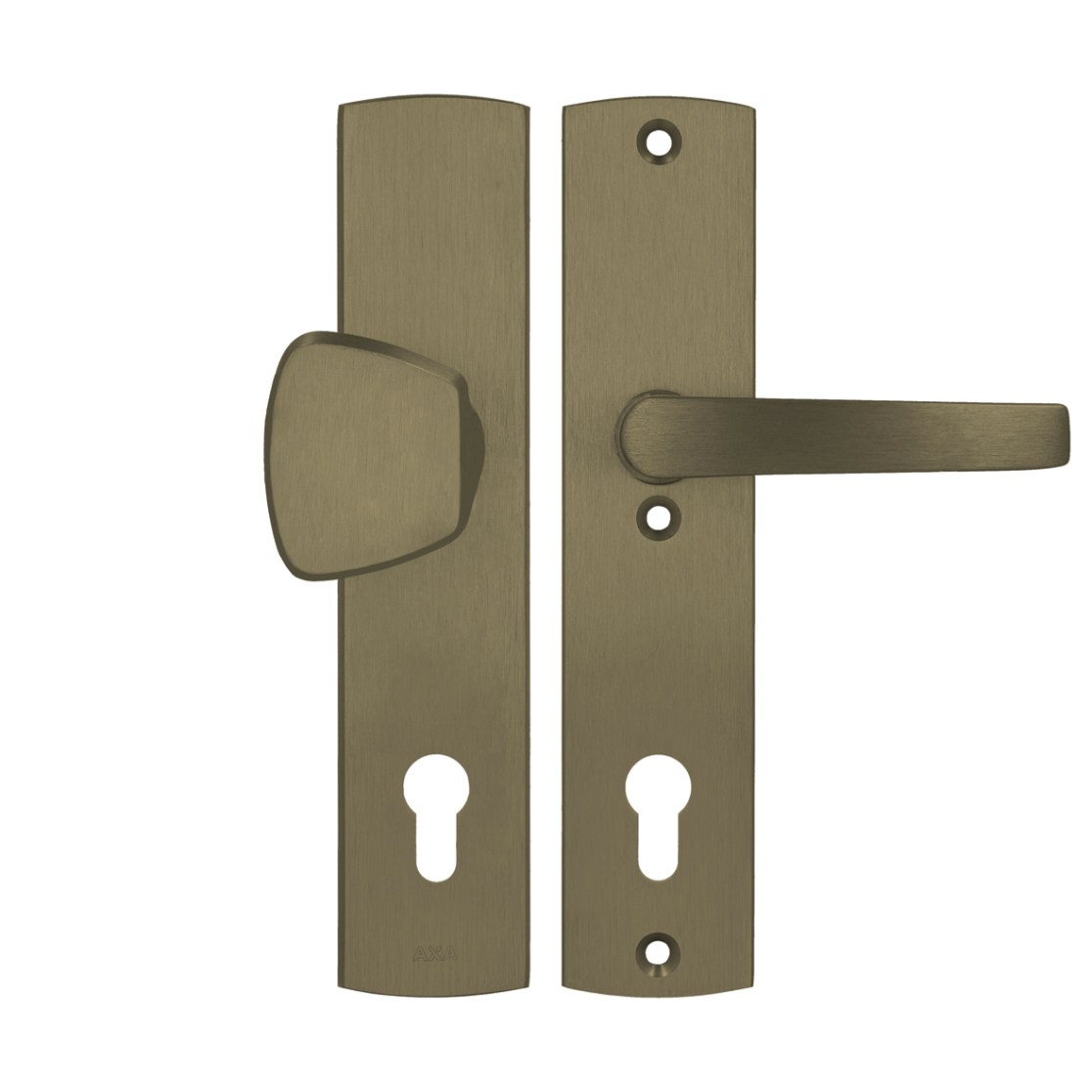

Diva Standard fittings handle+knob PC 92

AENXSBI03JC/KXXSXS
arrow_selector
close

Curved reliable door fittings dedicated for exterior doors.

  • Diva handle in standard version, without cylinder protection
  • for both left and right-opening doors (the knob is reversible)
  • Regularly available in four basic colours and two spacing
  • finely brushed and less sensitive to scratches
  • Fittings available in safety class 3
  • five-year warranty. Handle for external doors.
Specifications Downloads Technical drawings
Commercial Information
expand_more
Type handle+knob PC 92
Safety / Security Information
expand_more
Burglarproof YES
CE Applicable NO
Security class (EN 1906) 3
Anti-snap protection NO
Fire door assemblies NO
Technical Information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Handle assembly grub screw fix
Spring supported handle YES
Heart to heart size 92 mm
Material Aluminum
Finish Polished anodised F6, Inox
Logistical Information
expand_more
Dimensions small package 257 x 122 x 72 mm
Dimensions bulk package 322 x 270 x 154 mm
Mounting information
expand_more
Including Mounting Material YES
Assembly time 20 min
Recommended Mounting Materials
- seals: 2 pieces
- M6 x 8.5 grub screw: 2 pieces
- 3 mm allen key: 1 piece
- 8 x 110 mm spindle (2 notches, drilled): 1 piece
- M6 x 90 mm bolts: 2 pieces
- M5 x 12 bolt
- Rings: 2 pieces
- ring for knob/pusher

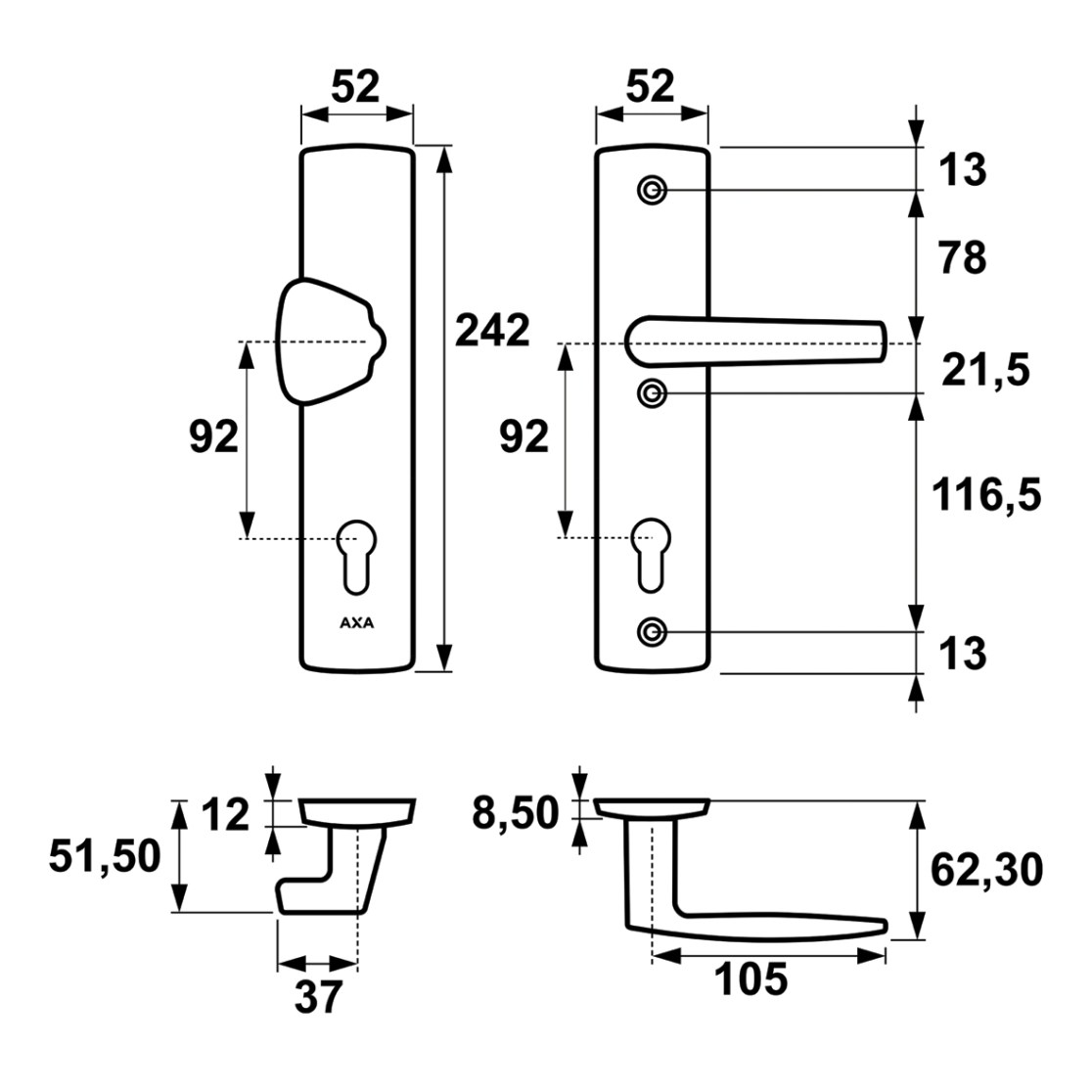

Technical drawings
